MOTICAM 4000 HDMI & USB 4K Microscope Camera

MOTICAM 4000 HDMI & USB 4K Microscope Camera


SKU: 1100600101521

Regular price $1,029.00
Regular price $1,143.00 Sale price $1,029.00
Sale Sold out
Quote Request
MOTICAM 4000 HDMI & USB 4K Microscope Camera
Got Questions? Why Choose Us? View full details


The Moticam 4000 is a camera that was designed for ease of use and the ability to output fast live images at 4K(3840x2160) pixels in full HD.

Unlike other cameras, the Moticam 4000 can be connected to a computer or through HDMI. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through an HDMI monitor, or connect your camera through USB to a Windows, Mac or Linux computer.

By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.

Model Moticam 4000
Sensor type IMX334
Sensor size 1/1.8"(8.86mm)
Imaging area Imaging Area 7.68 x 4.32mm
Capture resolution  8MP
Pixel Size 2.0 x 2.0μm
Scan mode Progressive
Shutter mode Rolling Shutter
G Sensitivity Dark Signal 505 mv with 1/30s; 0.1 mv with 1/30s
Exposure time 0.04~1000ms
Operating temperature From -10 to +50 Degrees Celsius non-condensing
Operating humidity 30~80%RH
Lens mount C-Mount
Software  Motic Images Plus 3.1 for Windows/Mac OS
Package includes 12V Power Adapter, CS Ring, Motic 4-dot Calibration Slide, HDMI Cable, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube

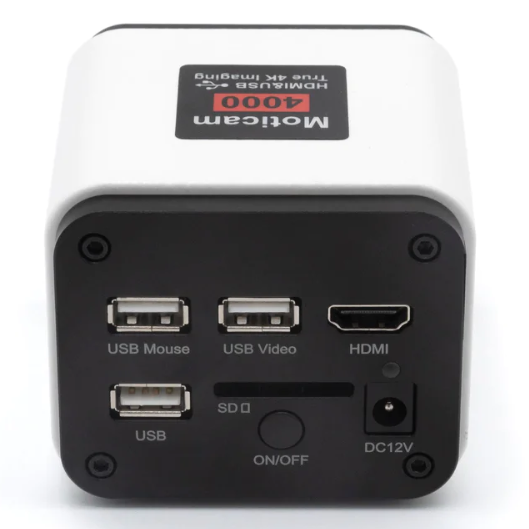

USB Mouse USB Mouse Input
USB Video USB Video Output
USB Data Storage
DC12V DC12V Power in
SD SD SD Card Slot
ON/OFF Power On/Off Switch
LED Power Off Red,Power On Blue


UI Operation With USB Mouse
Image Capture JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card
Video Record 4K(30fps@3840*2160) H264/H265 encoded MP4 file in SD Card
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze, Measurement, Cross, Browser Function
Max. frames per second (fps*) 30fps@3840*2160; 30fps@1920*1080


UI Operation Motic Image Plus 3.1
White Balance Auto White Balance
Color Technique Ultra-FineTM Color Engine
Recording System Still Picture or Movie
Max. frames per second (fps*) 20fps@3840*2160
PC Requirements CPU: Intel Core2 2.8GHz or Higher, Memory: 8GB or More, Display: 19" or Larger, Operating System: Windows 10/Mac OS X/Linux
