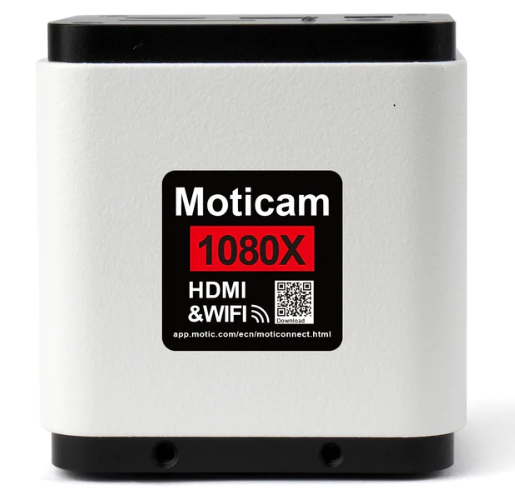

Moticam 1080X HDMI, USB, WiFi Microscope Camera
Got Questions? Why Choose Us? View full details


The Moticam 1080X is a camera that was designed for ease of use and the ability to output fast live images at 1920x1080 pixels in full HD.

Unlike other cameras, the Moticam 1080X does not require a computer. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through an HDMI monitor.

By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.


Model Moticam 1080X
Sensor type IMX185
Sensor size 1/1.9"
Imaging area 7.20 x 4.05mm
Capture resolution  8MP on SD card (3840x2160 pixels)
Pixel Size 3.75 x 3.75μm
Scan mode Progressive
Shutter mode Rolling Shutter
G Sensitivity Dark Signal 1120 mv with 1/30s; 0.15 mv with 1/30s
Exposure time 0.06~918ms
Operating temperature From -10 to +50 Degrees Celsius non-condensing
Operating humidity 30~80%RH
Lens mount C-Mount
Software  MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS
Package includes 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/φ38, Macro Tube, Macro Calibration card


USB MultiPort USB WiFi Dongle or USB Mouse
DC12V DC12V Power in
SD SD Card Slot
ON/OFF Power On/Off Switch
LED Power Off Red,Power On Blue


UI Operation With USD Mouse
Video Record ASF Format 1080P 30fps in SD Card
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze, Measure, Cross, Browser Function
Max. frames per second (fps*) 30fps@1920x1080

UI Operation MotiConnect & Motic Images Plus 3.1
WiFi Performance 802.11n 150Mbps; RF Power 20dBm(Maximum)
Maximum Connected Devices 3~6(According to the Environment and Connection Distance)
White Balance One Push White Balance
Color Technique Ultra-Fine Color Engine (WiFi)
Recording System Still Picture or Movie (WiFi)
Max. frames per second (fps*) 25fps@1920x1080
