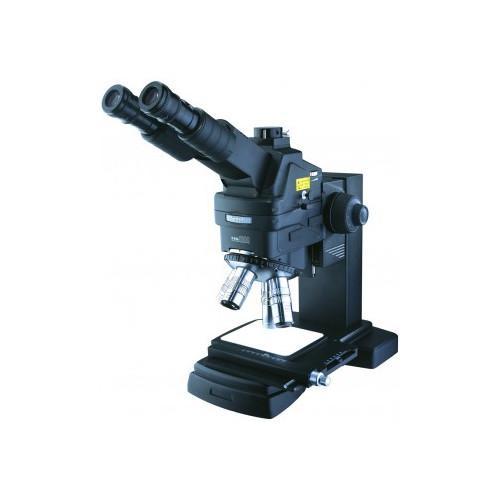

Motic PSM-1000  Probe Station Microscope
Motic PSM-1000  Probe Station Microscope

Motic PSM-1000 Probe Station Microscope

  • SKU: 1100101700012
$6,176.00 $6,863.00
Head Type
Request Quote

The Motic PSM-1000 is a modular microscope system that can be used for applications in the semiconductor industry as well as for laser inspections and repairs. Or simply for applications where high quality optics, precision mechanics and Long Working Distances are crucial and have to be combined with an upright image.

The Motic PSM-1000 incorporates a 3-lens change-over turret that allows the user to easily switch from visual inspection to laser work. With the following optical lenses 1X UV/, 1X IR/VIS and 2X Bright field the spectrum from 355nm to 1064nm is covered. All optical components have a special coating for maximum transmission.

Specifications
Head: Trinocular head [Optical split - 50:50 / 0:100] or Trinocular Tilting
Eyepieces: Adjustable widefield high eyepoint 10X/F.N.24
Changeover Turrett:
3-lens changeover turret [1XUV, 1XIR, 2XVIS]
Nosepiece: Adjustable / centerable forward facing nosepiece one fixed, three adjustable
Objectives: Objectives are not included. Please see the accessories tab to purchase objectives.
Laser: Beam splitter for laser work. Laser capabilities [355nm - 1064nm] Laser safety kit [shims and laser safety pin]
Focusing:

Coaxial coarse/fine focus: 50mm travel range, 0.1mm/rev. for fine adjustment, 4mm/rev. for coarse adjustment.

Focusing Block - 20kgs rated

Illumination:

Optional 150W cold light source, light guide length 2m. (See Accessories Tab)

Accessories: Optional Accessories - See Accessories Tab
Warranty: 5 Year Mechanical & 1 Year Electrical
