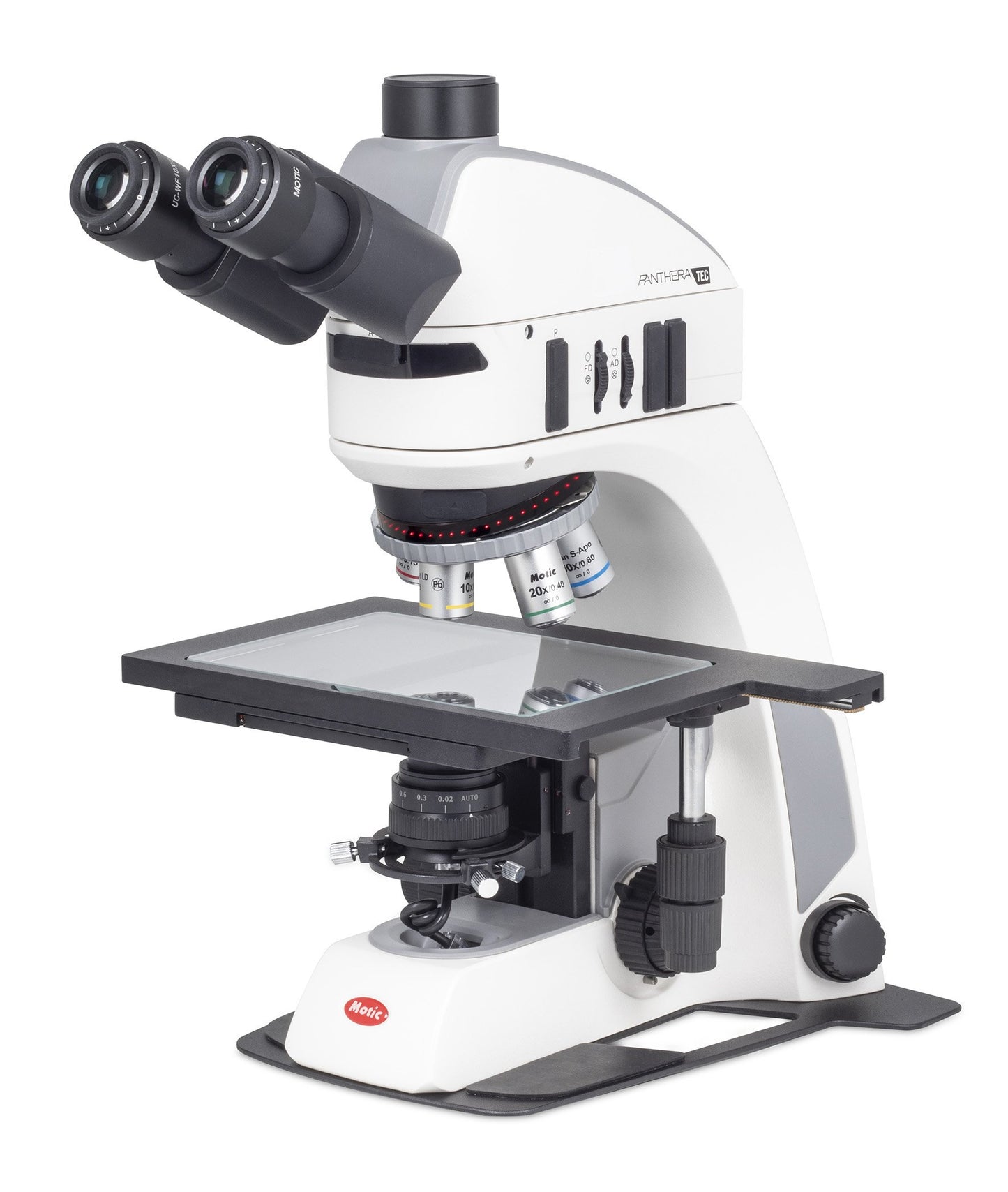

Motic Panthera TEC MAT Metallurgical Microscope
- SKU: 1100104600192
$4,202.10
$4,669.00
- Trinocular Head
- Reflected or Reflected & Transmitted
- Coded Nosepiece
- LED Illumination
- 5 Year Mechanical & Electrical Warranty
The Panthera TEC MAT microscope is designed for material sciences and is equipped to inspect semiconductors, LCD panels, wafers, metallurgical samples, and various types of materials. The microscope incorporates a sleek design and modern technology with the Motic LightTracer coded nosepiece, and digital light intensity knob. The trinocular head allows you to add a camera to this system and it comes standard with 10x/22 mm field of view eyepieces. Reflected light is standard, or you can upgrade to reflected and transmitted light. The compact LED EPI illuminator has a slot to accept a polarizer and analyzer. The coded smart quintuple nosepiece has Motic LightTracer which remembers the ideal illumination setting for each objective. This microscope is equipped with brightfield Plan Achromat LD 5x, 10x, 20x, and Plan S-APO 50x objective lenses. You can choose between a 3x2" or 6x4" mechanical stage. For transmitted illumination options the microscope will be equipped with an LED condenser which has 39 LED's mounted directly into them. This microscope can be configured with a camera for documentation or training purposes. This high quality microscope is offered at an affordable price.
| Specifications | |
|---|---|
| Head: | Trinocular head Siedentopf type 25° |
| Eyepieces: | Widefield high eyepoint eyepiece N-WF PL10X/22mm with diopter |
| EPI Illuminator: | 3W LED Epi-illumination with slots for analyzer and polarizer |
| Nosepiece: | Reversed, quadruple coded w/ LightTracer |
| Objectives: | Plan Achromat LD 5x, 10x, 20x, Plan S-APO 50x |
| Stage: | 3 x 2" Or 6 x 4" |
| Condenser: | With Transmitted Light Only |
| Focusing: | Coaxial coarse and fine |
| Illumination: | Transmitted Koehler illumination 0.06W LED (39 LEDs) with automatic intensity control |
| Accessories: | Power cord, Allen hexagonal key, vinyl dust cover |
| Warranty: |
5 Year Mechanical & Electrical |
The Panthera TEC MAT microscope is designed for material sciences and is equipped to inspect semiconductors, LCD panels, wafers, metallurgical samples, and various types of materials. The microscope incorporates a sleek design and modern technology with the Motic LightTracer coded nosepiece, and digital light intensity knob. The trinocular head allows you to add a camera to this system and it comes standard with 10x/22 mm field of view eyepieces. Reflected light is standard, or you can upgrade to reflected and transmitted light. The compact LED EPI illuminator has a slot to accept a polarizer and analyzer. The coded smart quintuple nosepiece has Motic LightTracer which remembers the ideal illumination setting for each objective. This microscope is equipped with brightfield Plan Achromat LD 5x, 10x, 20x, and Plan S-APO 50x objective lenses. You can choose between a 3x2" or 6x4" mechanical stage. For transmitted illumination options the microscope will be equipped with an LED condenser which has 39 LED's mounted directly into them. This microscope can be configured with a camera for documentation or training purposes. This high quality microscope is offered at an affordable price.
| Specifications | |
|---|---|
| Head: | Trinocular head Siedentopf type 25° |
| Eyepieces: | Widefield high eyepoint eyepiece N-WF PL10X/22mm with diopter |
| EPI Illuminator: | 3W LED Epi-illumination with slots for analyzer and polarizer |
| Nosepiece: | Reversed, quadruple coded w/ LightTracer |
| Objectives: | Plan Achromat LD 5x, 10x, 20x, Plan S-APO 50x |
| Stage: | 3 x 2" Or 6 x 4" |
| Condenser: | With Transmitted Light Only |
| Focusing: | Coaxial coarse and fine |
| Illumination: | Transmitted Koehler illumination 0.06W LED (39 LEDs) with automatic intensity control |
| Accessories: | Power cord, Allen hexagonal key, vinyl dust cover |
| Warranty: |
5 Year Mechanical & Electrical |
Motic Panthera TEC MAT BrochureRelated product
