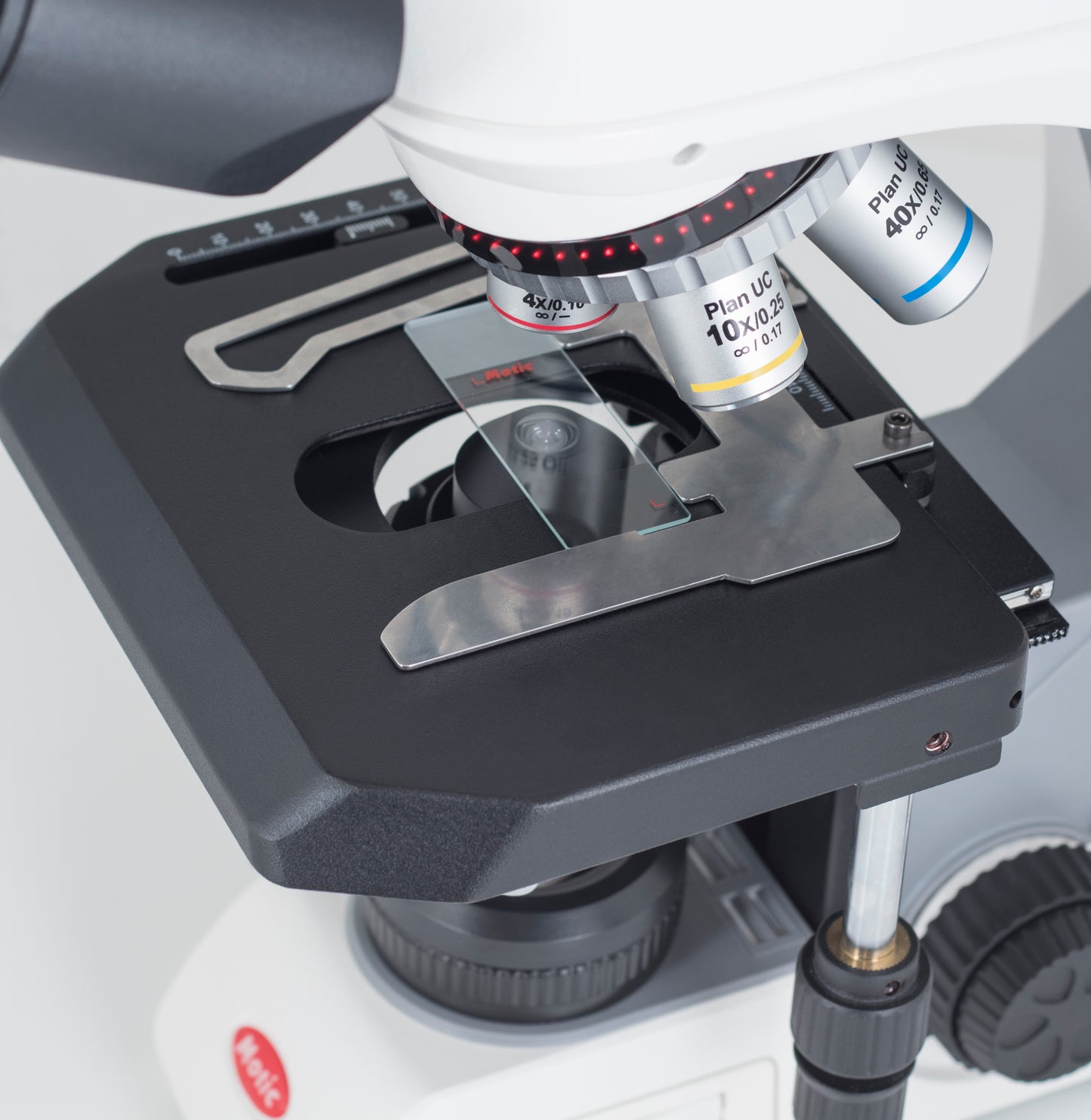

Motic Panthera C2 Simple Phase Trinocular Microscope
- SKU: 1100104601161
- Trinocular Viewing Head
- Ultra Contrast Objectives
- 4x & 10x Brightfield & 40x Phase Objectives
- Kohler LED Illumination
- 5 Year Mechanical & 1 Year Electrical Warranty
The Motic Panthera C2 simple phase contrast microscope series comes standard with a trinocular viewing head. This microscope is designed for a wide range of applications and incorporates a simple phase technique with a 40x phase objective and Ph2 phase slider. The microscope is unique and comes with an LED or halogen bulb to use with the microscope with full kohler illumination. The quintuple nosepiece has Motic LightTracer technology which features an LED light indicator to display light intensity that the microscope is set to. A convenient USB output jack is located in the rear of the microscope which can power optional cameras for an all-in-one solution. The Panthera C2 offers a wide field of view with its UC-WF 10x/22mm eyepieces. The CCIS Plan Achromat Ultra Contrast 4x Brightfield, 10x Brightfield, and 40x Phase Contrast objectives provide clear and high resolution images. A smooth worry free rackless XY mechanical stage comes standard on this model. The 0.9 N.A. condenser is fully focusable and comes with the Ph2 phase slider for use with the 40x phase contrast objective lens.
Specifications | |
---|---|
Head: | Trinocular head Siedentopf type 25° inclined, 360° swiveling, 50:50 light split |
Eyepieces: | UC Widefield high eyepoint eyepiece UC-WF10X/22mm |
Nosepiece: |
Reversed coded quintuple revolving nosepiece Indication light on nosepiece for light intensity |
Objectives: | CCIS Plan UC objectives 4X, 10X, 40X S PH |
Stage: | Built in low position coaxial rackless stage with right hand control |
Condenser: |
Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot Ph2 Slider |
Focusing: | Coaxial coarse and fine focusing adjustment with tension adjustment |
Illumination: | Koehler illumination with 3W LED and halogen 6V/30W interchangeable with intensity control |
Accessories: | Centering telescope, power cord, blue filter, allen hexagonal key, vinyl dust cover, HAL and LED module, Instruction manual |
Warranty: | 5 Year Mechanical & 1 Year Electrical |
