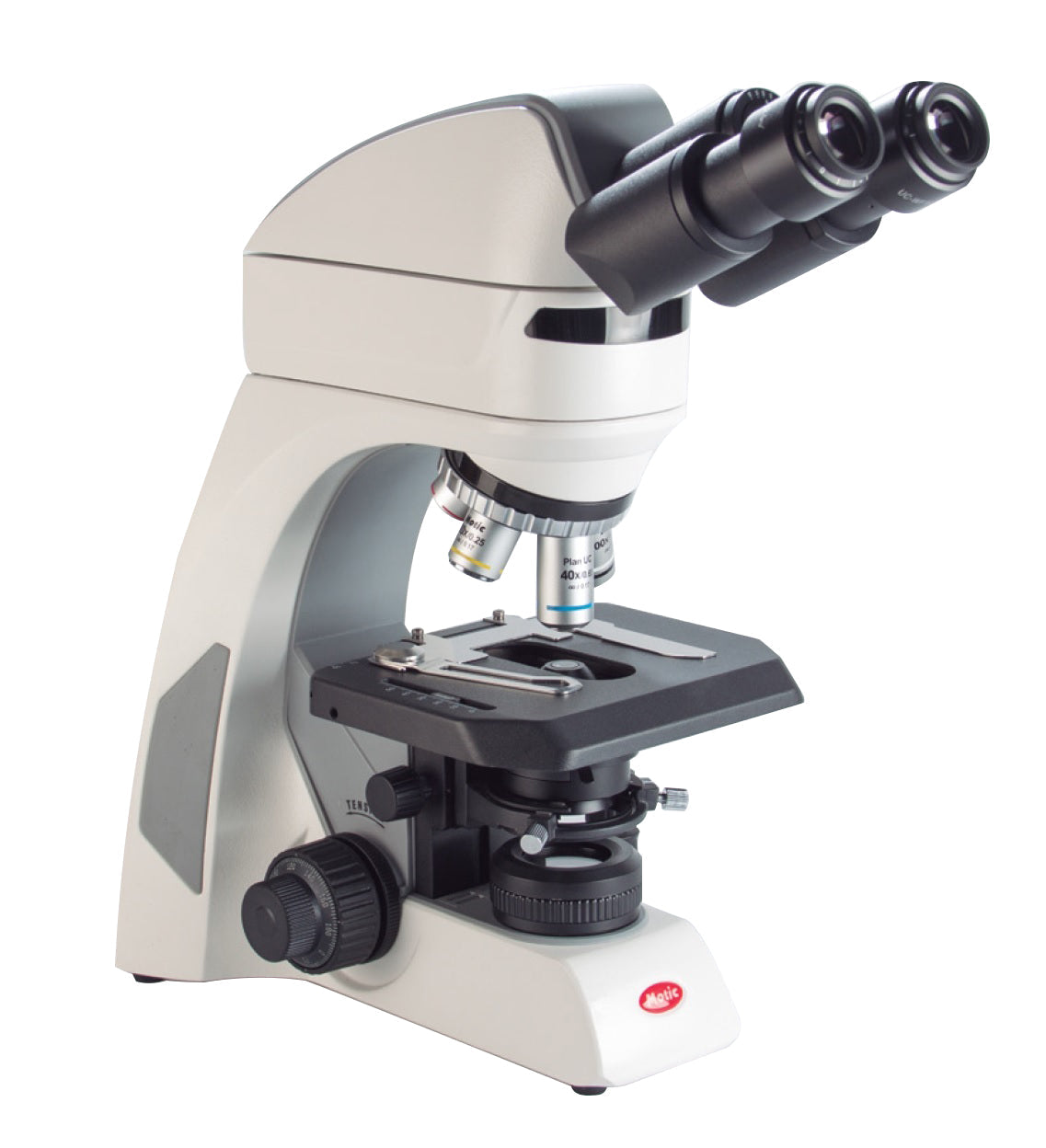

Motic Panthera C2 LED Fluorescence Compound Microscope
- SKU: 1100104601136-1101011400181
The Motic Panthera C2 LED fluorescence microscope offers a revolutionary design with its all-in-one compact fluorescence unit. The LED fluorescence module offers a single wavelength with your choice between FITC, TRITC / Rhodamine, or Auramime O. You can selected between a binocular, or trinocular viewing head. The Widefield UC 10x eyepieces provide you with a 20mm field of view. The coded 5 position nosepiece can automatically detect the objective that is engaged which allows for automatic light intensity adjustment. This system comes with CCIS Plan Infinity Corrected UC 4x, 10x, 40x, 100x Oil objective lenses. The mechanical stage has a low ergonomic position, and the XY stage control is right designed for right hand use. The focusable abbe 0.9 N.A. condenser has a slot to accept sliders. Transmitted illumination is achieved with the 3 watt koehler led illumination system which can be interchanged to a halogen 6v30w system.
Specifications | |
---|---|
Head: | Binocular Or Trinocular (50:50 Split) head Siedentopf type 25° inclined, 360° rotating |
Fluorescence: |
LED Module Single Position, Your Choice: Auramina O - 455nm FITC - 470nm TRITC - 525nm |
Eyepieces: | Widefield high eyepoint eyepiece UC-WF10X/22mm |
Nosepiece: |
Reversed quintuple revolving nosepiece Indication light on nosepiece for light intensity |
Objectives: | CCIS Plan Achromat UC objectives 4x, 10x, 40x S, 100x Oil |
Stage: | Built in low position coaxial rackless stage with right hand control |
Condenser: | Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot |
Focusing: | Coaxial coarse and fine focusing adjustment with tension adjustment |
Illumination: |
Koehler illumination with 3W LED and halogen 6V/30W interchangeable with intensity control, auto -on-off sleep mode
|
Accessories: | Power cord, blue filter, allen hexagonal key, vinyl dust cover, HAL and LED module, Instruction manual |
Warranty: | 5 Year Mechanical & 1 Year Electrical |
The Motic Panthera C2 LED fluorescence microscope offers a revolutionary design with its all-in-one compact fluorescence unit. The LED fluorescence module offers a single wavelength with your choice between FITC, TRITC / Rhodamine, or Auramime O. You can selected between a binocular, or trinocular viewing head. The Widefield UC 10x eyepieces provide you with a 20mm field of view. The coded 5 position nosepiece can automatically detect the objective that is engaged which allows for automatic light intensity adjustment. This system comes with CCIS Plan Infinity Corrected UC 4x, 10x, 40x, 100x Oil objective lenses. The mechanical stage has a low ergonomic position, and the XY stage control is right designed for right hand use. The focusable abbe 0.9 N.A. condenser has a slot to accept sliders. Transmitted illumination is achieved with the 3 watt koehler led illumination system which can be interchanged to a halogen 6v30w system.
Specifications | |
---|---|
Head: | Binocular Or Trinocular (50:50 Split) head Siedentopf type 25° inclined, 360° rotating |
Fluorescence: |
LED Module Single Position, Your Choice: Auramina O - 455nm FITC - 470nm TRITC - 525nm |
Eyepieces: | Widefield high eyepoint eyepiece UC-WF10X/22mm |
Nosepiece: |
Reversed quintuple revolving nosepiece Indication light on nosepiece for light intensity |
Objectives: | CCIS Plan Achromat UC objectives 4x, 10x, 40x S, 100x Oil |
Stage: | Built in low position coaxial rackless stage with right hand control |
Condenser: | Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot |
Focusing: | Coaxial coarse and fine focusing adjustment with tension adjustment |
Illumination: | Koehler illumination with 3W LED and halogen 6V/30W interchangeable with intensity control, auto -on-off sleep mode |
Accessories: | Power cord, blue filter, allen hexagonal key, vinyl dust cover, HAL and LED module, Instruction manual |
Warranty: | 5 Year Mechanical & 1 Year Electrical |
