Motic Easy Scan Digital Slide Scanner
- Order within
The Motic Easy Scan Digital Slide Scanner is a new cost effective solution to easily and quickly scan whole 1 x 3" Pathology slides in minutes. The Easy Scan allows for one slide to be loaded and scanned ,while the Easy Scan Pro allows for 6 slides to be loaded and scanned in minutes. The Easy Scan features easy to use software capable of scanning high resolution images for diagnosis, a secondary opinion, or teaching. The Motic Easy Scan offers live remote control to any device with an internet connection.
Contact Us Today To Schedule A Free Live or Remote Demonstration!
Pricing Starting At $24,995

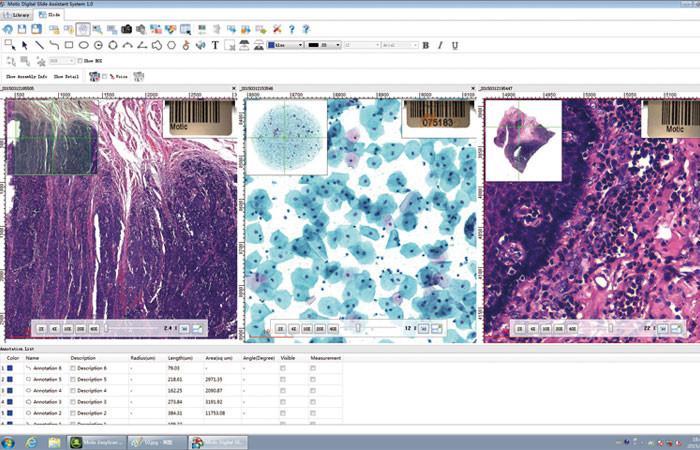

Once a slide is scanned you have the ability to process the image further. The Motic easy scan allows for:
- Free Annotating
- Zooming - In & Out
- Measurements
- Application of grids, masks
- Side-By-Side comparison
- Image processing, adjustment & Enhancement
- Realtime AutoFocus
- Preview images in seconds
- Z Stacking
- Barcode reader
- Extended depth of field
|
EASY SCAN |
EASY SCAN Pro |
Objective |
High NA APO 20X (NA 0.65) |
UltraHigh NA APO 20X (NA 0.75) |
Scanning time 15x15mm |
6 min (40X magnification) |
3 min (40X magnification) |
Focus |
Medium Fast Autofocus |
Fast Realtime Autofocus |
Camera sensor |
Fast Speed CCD 0.5ms @ 15 fps · 2/3”CCD Sensor |
|
Resolution |
20X: 0.5μm/pixel (binning); 40X: 0.25μm/pixel |
|
Optical System |
CCIS® Infinity optics, 10W LED light source, Lifetime: >30,000 hours |
|
Slide capacity |
1 and 6 Slide-Magazine |
|
Scanning Process |
Automatic and Manual ROI mode One Click Scanning High Speed Autofocus Multi-Layer 3D High Precision Single Field Focusing |
|
Slide dimensions |
Tolerances - Length: 76 (+0/-1) Width: 26 (+0-1) Thickness: +0.1/-0.2 |
|
Computer / Monitor |
Dell workstation (RAM 8G, HD 1TB), 24’ LCD Monitor |
