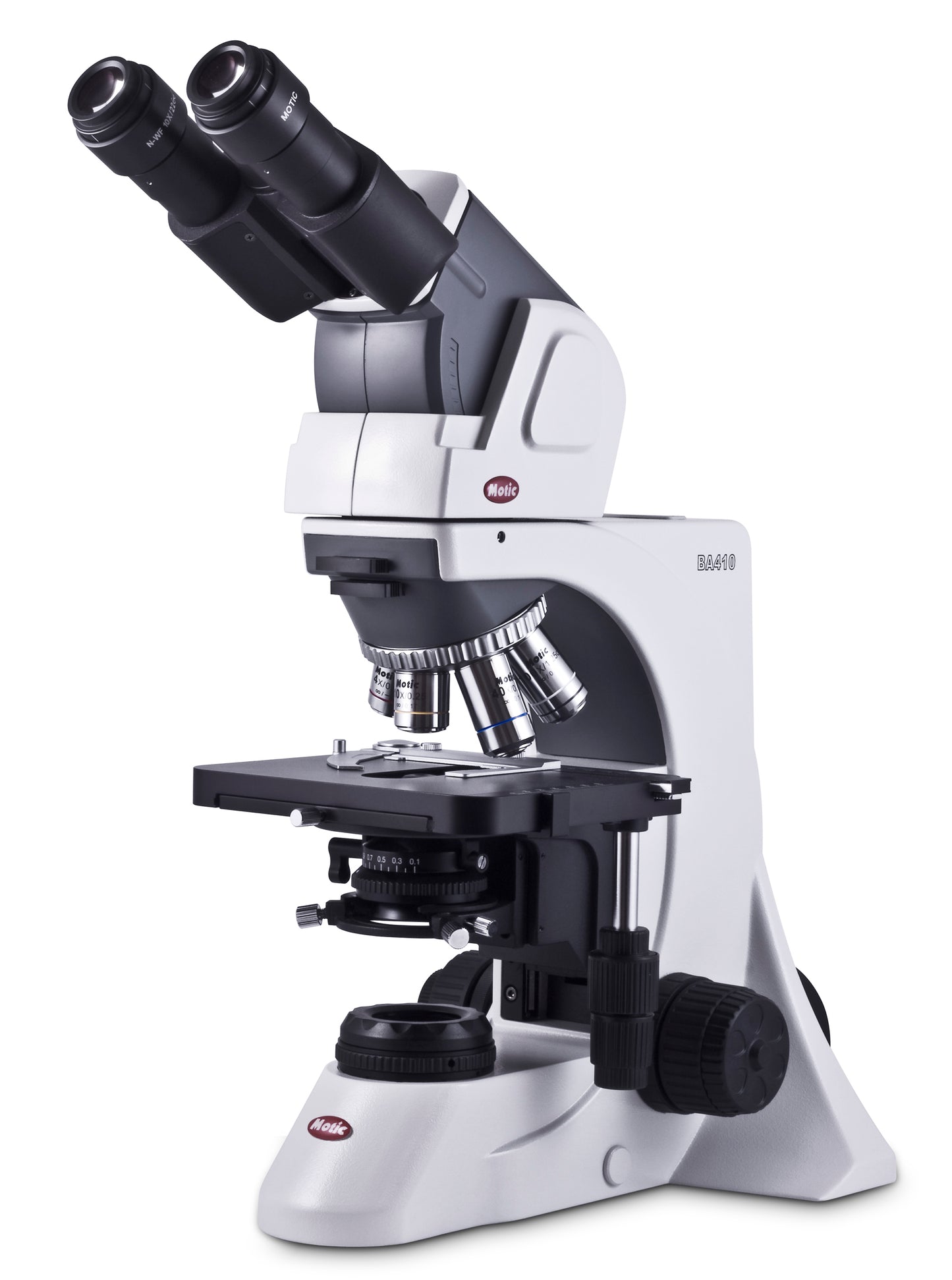

Motic BA410 Pathology Microscope

Recently viewed

Motic BA410 Pathology Microscope
Motic BA410 Pathology Microscope
Motic BA410 Pathology Microscope

Motic BA410 Pathology Microscope

  • SKU: BA410-P-B
$3,279.00 $3,644.00
  • Binocular, Trinocular, or Ergo Binocular
  • 2x Low Power Objective
  • Plan Achromat Objectives
  • Customizable
  • 5 Year Mechanical & Electrical Warranty
Head Type
Request Quote

The Motic BA410 Pathology microscope can come with your choice of head. You can choose from a binocular, trinocular, or ergonomic tilting binocular head. This full size clinical grade microscope includes a powerful 50 watt kohler illumination system. The plan acromat 2x, 4x, 10x, and 20x objectives provide clear, sharp resolution. The mechanical stage can hold up to two slides.



Specifications
Head: Binocular, Trinocular, or Ergonomic Tilting Binocular
Eyepieces: Wide field high eyepoint eyepiece N-WF10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed sextuple nosepiece
Objectives: Plan Achromat 2x, 4x, 10x, 20x
Condenser: Focusable and centrable Achromat swing-out condenser N.A. 0.90 with iris diaphragm
Stage: Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides
Illumination:

Koehler illumination quartz Halogen 6V/30W with external lamphouse and intensity control

Universal power supply 110-220v

Focusing: Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment
Accessories: 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover
Warranty: 5 Year Mechanical & 1 Year Electrical
