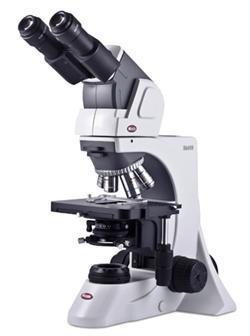

Motic BA410 Elite Hematology Microscope

Motic BA410 Elite Hematology Microscope

Available: In Stock
Wishlist
  • Product SKU: 1100100403048
$4,552.20 $5,058.00
Request Quote

The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.

A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation.

Specifications
Head:
    Binocular Ergonomic Tilting 4° to 30° head Siedentopf type

    Eyepieces: Widefield high eyepoint eyepiece WFPL 10X / 22mm with diopter adjustment
    Nosepiece: Reversed sextuple nosepiece
    Objectives:

    CCIS Plan Achromat objectives EC-H  10X, 40X, 100X Oil

    CCIS Plan US FLUOR 50x Oil

    Condenser: Achromat swing-out condenser N.A. 0.90 with iris diaphragm
    Stage: Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides
    Illumination: Koehler illumination quartz halogen 12V/50W and 12V/3W LED module (6000K) with external lamp house and intensity control
    Focusing: Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment
    Accessories: 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover
    Warranty: 5 Year Mechanical & 1 Year Electrical

    The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.

    A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation.

    Specifications
    Head:
      Binocular Ergonomic Tilting 4° to 30° head Siedentopf type

      Eyepieces: Widefield high eyepoint eyepiece WFPL 10X / 22mm with diopter adjustment
      Nosepiece: Reversed sextuple nosepiece
      Objectives:

      CCIS Plan Achromat objectives EC-H  10X, 40X, 100X Oil

      CCIS Plan US FLUOR 50x Oil

      Condenser: Achromat swing-out condenser N.A. 0.90 with iris diaphragm
      Stage: Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides
      Illumination: Koehler illumination quartz halogen 12V/50W and 12V/3W LED module (6000K) with external lamp house and intensity control
      Focusing: Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment
      Accessories: 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover
      Warranty: 5 Year Mechanical & 1 Year Electrical
