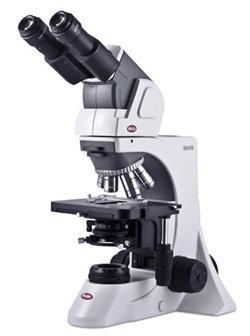

The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.

A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation.

Specifications
Head:
  • Binocular head Siedentopf type 30°, inclined, 360° rotating
  • Binocular Ergo Head
  • Ergo Plus head (without eyepiece, tilting & telescoping)
  • Trinocular head Siedentopf type 30 ° inclined, 360°rotating (Light Split: 20/80)
  • BA410 Trino head (3 step Light split: 100:0, 20:80, 0:100)
Eyepieces: Wide field high eyepoint eyepiece N-WF10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed sextuple nosepiece
Objectives: CCIS Plan Achromat objectives EC-H PL4X, EC-H PL10X, EC-H PL40X S, EC-H PL100X S-oil
Condenser: Focusable and centrable Achromat swing-out condenser N.A. 0.90 with iris diaphragm
Stage: Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides
Illumination:

Koehler illumination quartz Halogen 6V/30W with external lamphouse and intensity control

Universal power supply 110-220v

Focusing: Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment
Accessories: 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover
Warranty: 5 Year Mechanical & 1 Year Electrical
