Motic BA410 Dual Viewing Pathology Microscope

Recently viewed

Motic BA410 Dual Viewing Pathology Microscope

Motic BA410 Dual Viewing Pathology Microscope

  • SKU: BA410-PATH-DV
$9,237.60 $10,264.00
  • Binocular, Trinocular, or Ergo Head
  • 2x Objective Included
  • Side-By-Side Bridge
  • Pointer Assembly
  • 5 Year Mechanical & 1 Year Electrical Warranty
Quote Request

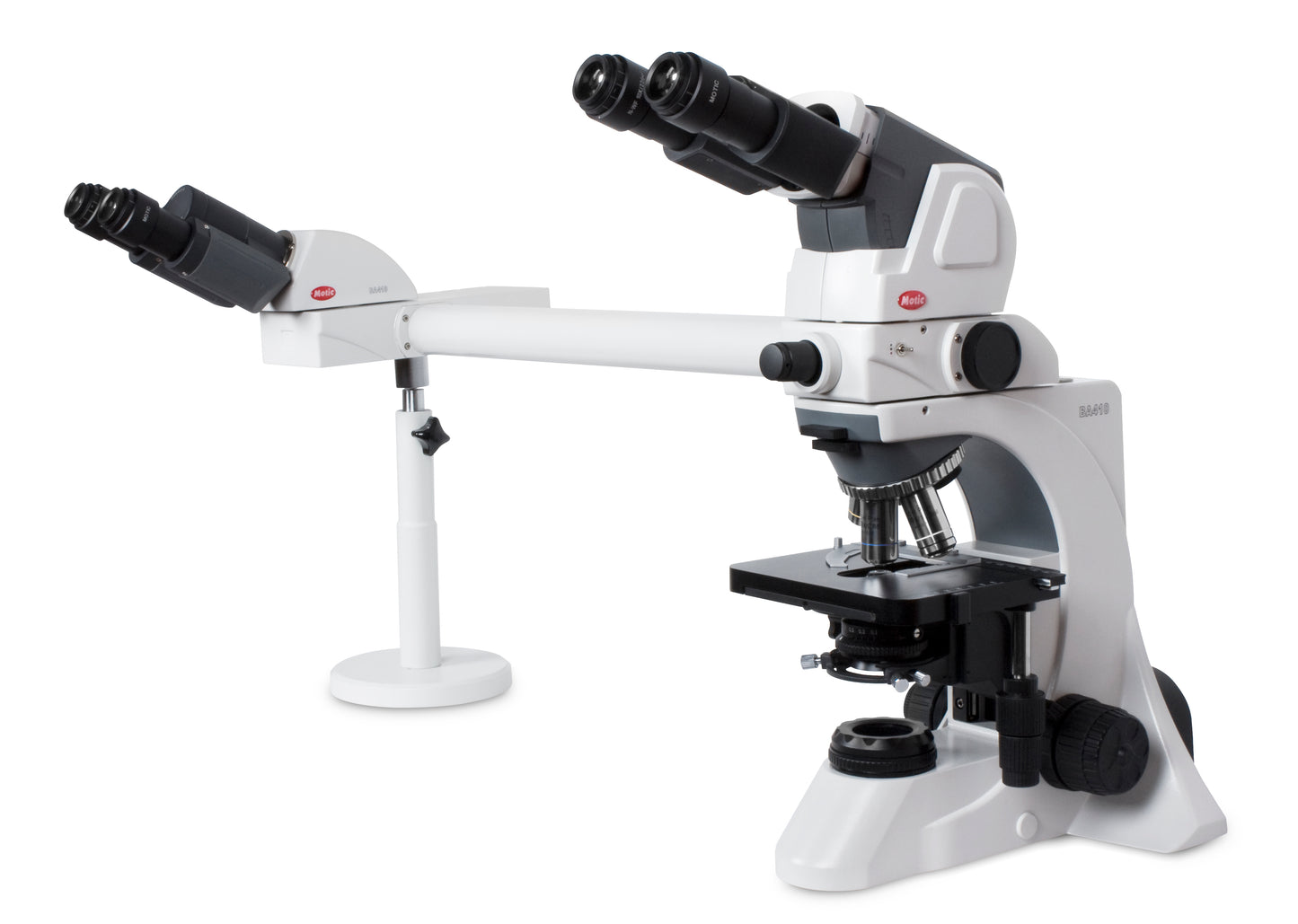

The Motic BA410 dual viewing pathology microscope is configured for Pathology applications with a 2x low power scanning objective. This microscope allows for two users to view through the microscope at the same time. The microscope comes with an ergonomic binocular main head, and binocular secondary viewing head. The microscope is a high quality laboratory microscope and comes with plan achromat 2x,4x, 10x, 20x and 40x objectives.

Specifications
Head:

Main Head: Ergo Binocular

Secondary: Binocular

Eyepieces: N-WF PL 10x/22mm FOV
Dual Bridge: Side-By-Side w/ Pointer
Nosepiece: Reversed, Sextuple
Objectives: Plan Achromat 2x, 4x, 10x,, 20x 40x Objectives
Condenser: Achromat Swing-Out
Stage: Mechanical Stage Dual Slide Holder
Illumination:

50W Koehler Quartz Halogen 12v50w

Universal power supply 110-220v

Focusing: Coarse & Fine Coaxial
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical

The Motic BA410 dual viewing pathology microscope is configured for Pathology applications with a 2x low power scanning objective. This microscope allows for two users to view through the microscope at the same time. The microscope comes with an ergonomic binocular main head, and binocular secondary viewing head. The microscope is a high quality laboratory microscope and comes with plan achromat 2x,4x, 10x, 20x and 40x objectives.

Specifications
Head:

Main Head: Ergo Binocular

Secondary: Binocular

Eyepieces: N-WF PL 10x/22mm FOV
Dual Bridge: Side-By-Side w/ Pointer
Nosepiece: Reversed, Sextuple
Objectives: Plan Achromat 2x, 4x, 10x,, 20x 40x Objectives
Condenser: Achromat Swing-Out
Stage: Mechanical Stage Dual Slide Holder
Illumination:

50W Koehler Quartz Halogen 12v50w

Universal power supply 110-220v

Focusing: Coarse & Fine Coaxial
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical
