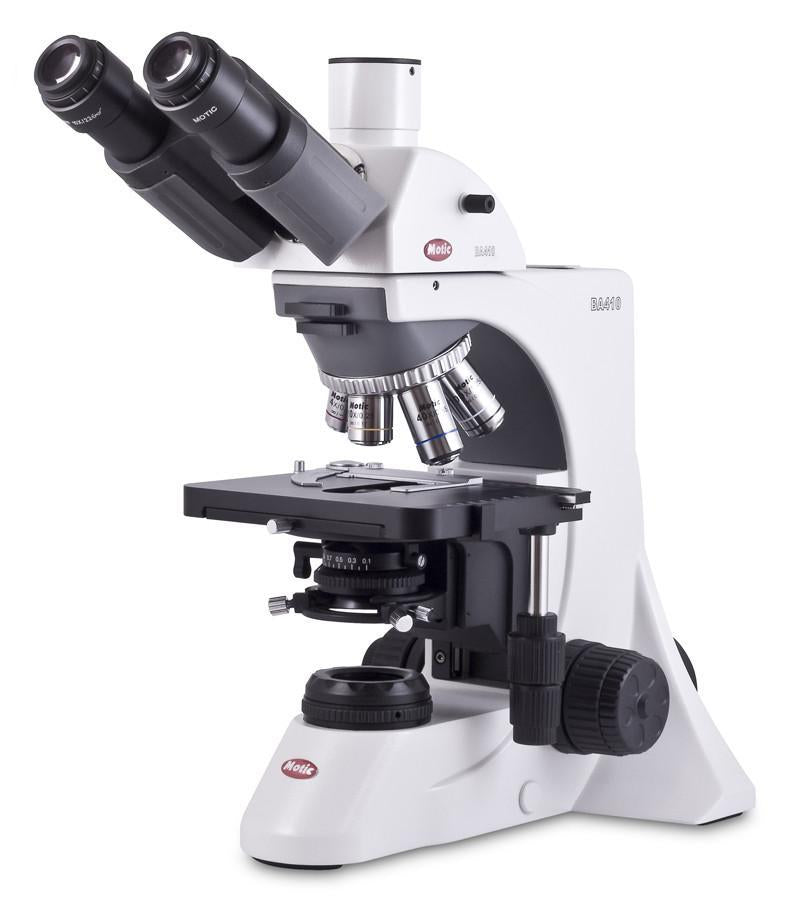

This clinical grade biological microscope comes complete as a digital microscope. The trinocular viewing head comes with a pair of 10x eyepieces that provide a large 22mm field of view. The six position nosepiece comes with plan achromat 4x, 10x, 40x, and 100x oil objectives. The low position stage makes this microscope ergonomic. A flip out condenser is standard. This package comes with the necessary c-mount camera adapter and the Moticam 4000 digital camera.
Microscope Specifications |
Head: |
Trinocular head Siedentopf type 30 ° inclined, 360°rotating (Light Split: 20/80) |
|
Eyepieces: |
Widefield high eyepoint eyepiece WFPL 10X / 22mm with diopter adjustment |
Nosepiece: |
Reversed quintuple |
Objectives: |
CCIS Plan Achromat objectives 4X, 10X, 40X,100x Oil |
Condenser: |
Achromat swing-out condenser N.A. 0.90 with iris diaphragm |
Stage: |
Built in low position coaxial mechanical stage with right hand control |
Illumination: |
Koehler 3 Watt LED |
Focusing: |
Coaxial coarse and fine focusing adjustment |
Accessories: |
45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover, c-mount |
Model |
Moticam 4000 |
Sensor type |
IMX334 |
Sensor size |
1/1.8"(8.86mm) |
Imaging area |
Imaging Area 7.68 x 4.32mm |
Capture resolution |
8MP |
Pixel Size |
2.0 x 2.0μm |
Scan mode |
Progressive |
Shutter mode |
Rolling Shutter |
G Sensitivity Dark Signal |
505 mv with 1/30s; 0.1 mv with 1/30s
|
Exposure time |
0.04~1000ms |
Operating temperature |
From -10 to +50 Degrees Celsius non-condensing |
Operating humidity |
30~80%RH |
Lens mount |
C-Mount |
Software |
Motic Images Plus 3.1 for Windows/Mac OS |
Package includes |
12V Power Adapter, CS Ring, Motic 4-dot Calibration Slide, HDMI Cable, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube |
INTERFACE & BUTTON FUNCTIONS
|
USB Mouse |
USB Mouse Input |
USB Video |
USB Video Output |
USB |
Data Storage |
HDMI |
HDMI Output |
DC12V |
DC12V Power in |
SD |
SD SD Card Slot |
ON/OFF |
Power On/Off Switch |
LED |
Power Off Red,Power On Blue |
SPECIFICATION FOR HDMI OUTPUT |
UI Operation |
With USB Mouse |
Image Capture |
JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card |
Video Record |
4K(30fps@3840*2160) H264/H265 encoded MP4 file in SD Card |
Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
Toolbar |
Including Zoom, Mirror, Comparison, Freeze, Measurement, Cross, Browser Function |
Max. frames per second (fps*) |
30fps@3840*2160; 30fps@1920*1080 |
SPECIFICATION FOR USB OUTPUT
|
UI Operation |
Motic Image Plus 3.1 |
White Balance |
Auto White Balance |
Color Technique |
Ultra-FineTM Color Engine |
Recording System |
Still Picture or Movie |
Max. frames per second (fps*) |
20fps@3840*2160 |
PC Requirements |
CPU: Intel Core2 2.8GHz or Higher, Memory: 8GB or More, Display: 19" or Larger, Operating System: Windows 10/Mac OS bX/Linux |
