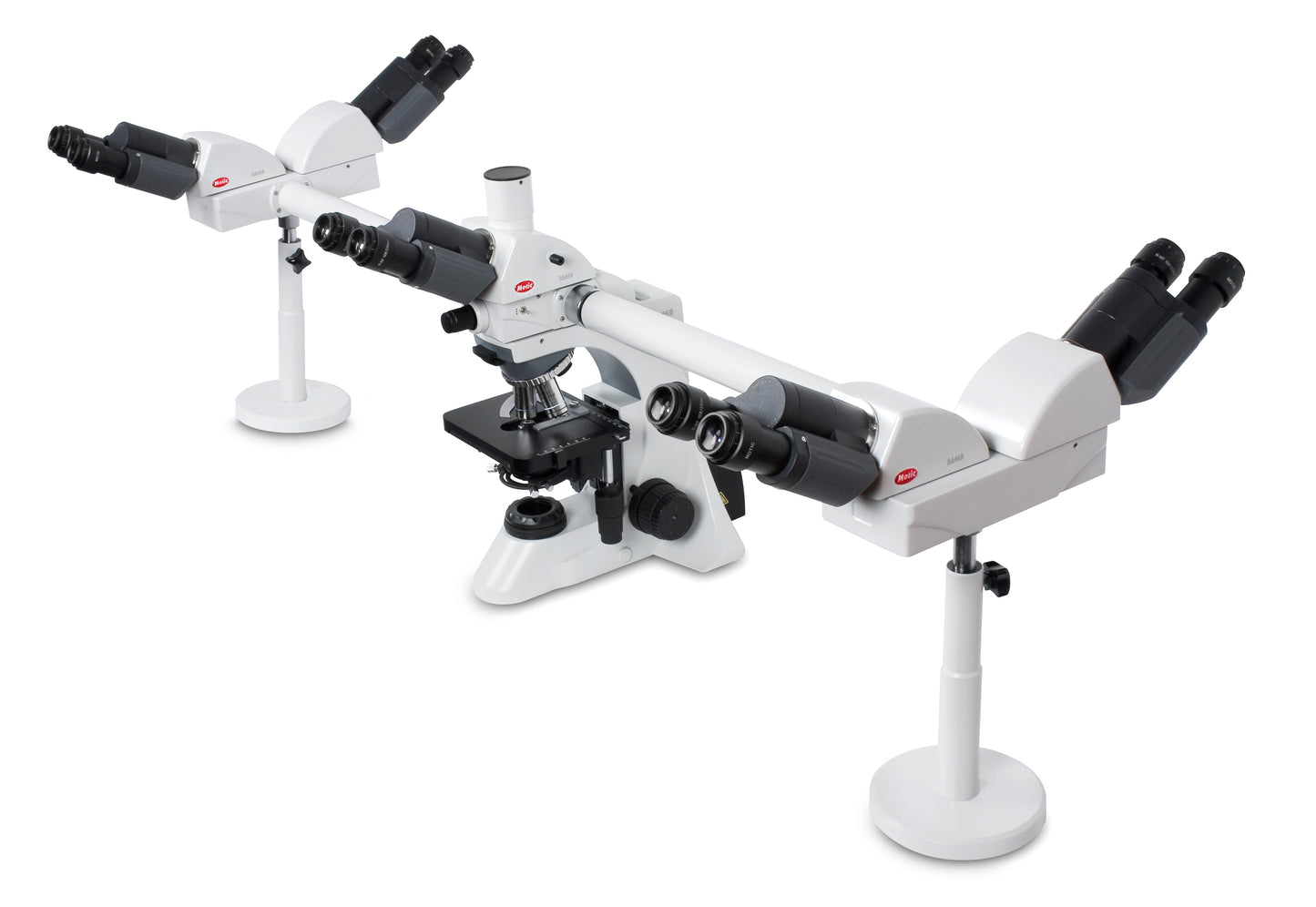

Motic BA410 5 Head Microscope

Motic BA410 5 Head Microscope

  • SKU: 1100100402971-5H
$11,458.80 $12,732.00
  • Binocular, Trinocular, or Ergo Primary Head
  • Fully Customizable
  • 5 Viewing Heads
  • Pointer Assembly
  • 5 Year Mechanical & 1 Year Electrical Warranty
Main Head
Quote Request

This Motic BA410 microscope allows for 5 individuals to view through the microscope at one time. The microscope comes with your option of primary head. You can choose from binocular, trinocular, or ergonomic binocular. The 4 secondary heads come standard as binocular but can be upgraded as well. The microscope includes an LED pointer assembly. The mechanical stage comes with a dual slide holder and the low position coarse/fine focus knobs provide ergonomic comfortable use. This microscope is outfitted with 4x, 10x, 40x, and 100x oil objectives, additional objectives are available.



Specifications
Head:

Main Head: Binocular, Trinocular, or Ergo Binocular

Secondary: Binocular (x4)

Eyepieces: N-WF PL 20x/22mm FOV (x10)
Optical Bridge: 5 Head Observation Bridge w/ Pointer
Nosepiece: Reversed, Sextuple
Objectives: Plan Achromat 4x, 10x, 40x, 100x Oil Objectives
Condenser: Achromat Swing-Out
Stage: Mechanical Stage Dual Slide Holder
Illumination:

50W Koehler Quartz Halogen 12v50w

Universal power supply 110-220v

Focusing: Coarse & Fine Coaxial
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical
