Motic BA410 3 Head Pathology Microscope

Recently viewed

Motic BA410 3 Head Pathology Microscope

Motic BA410 3 Head Pathology Microscope

$7,167.60 $7,964.00
  • Binocular, Trinocular, or Ergo Head
  • 2x Objective Included
  • 3 Viewing Heads
  • Pointer Assembly
  • 5 Year Mechanical & 1 Year Electrical Warranty
Main Head
Request Quote

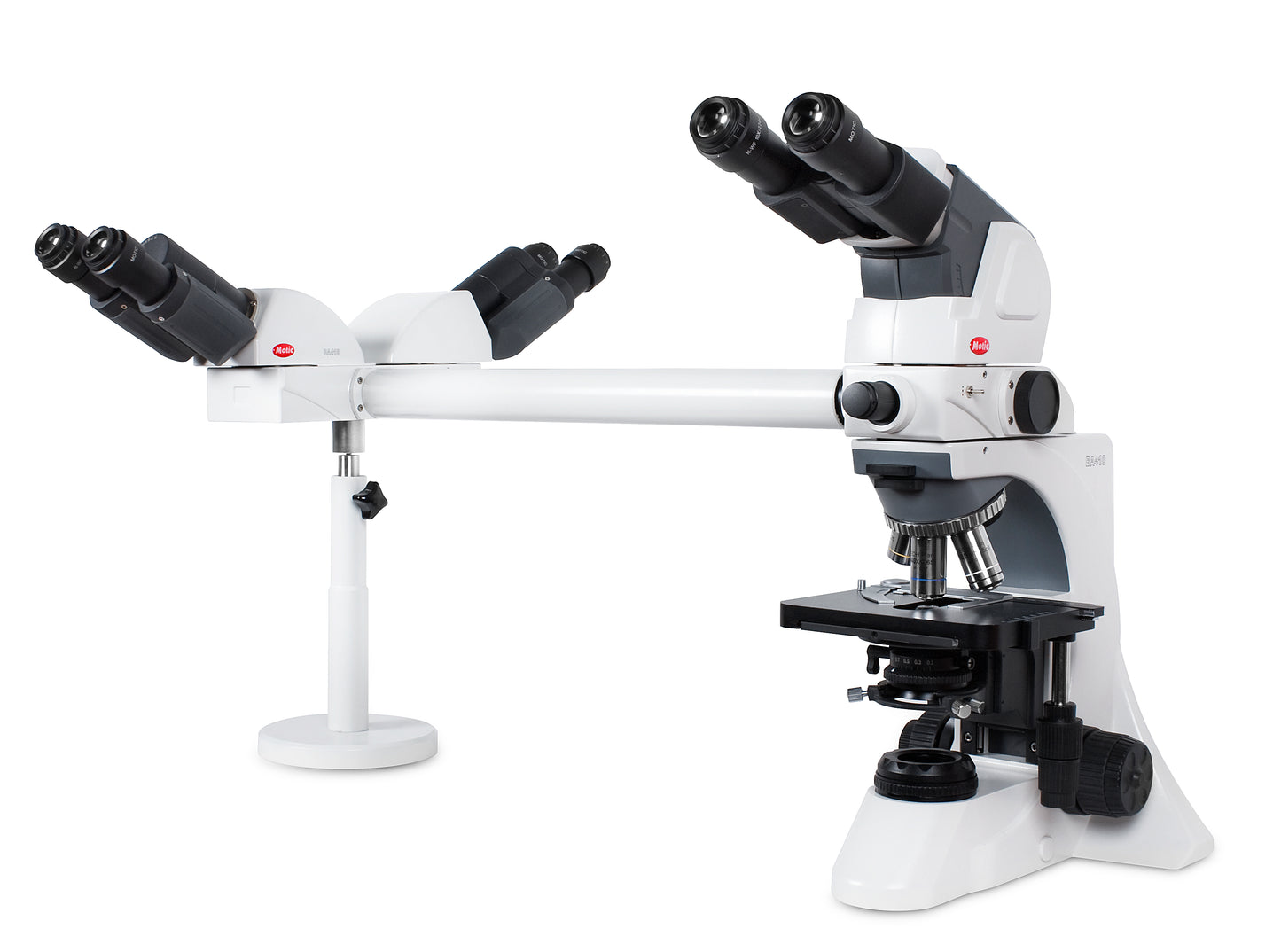

The motic BA410 3 head pathology multi-viewing microscope allows for 3 individuals to view through the microscope at the same time. This microscope is configured with a 2x low power scanning objecitve and flip out condenser. The microscope comes with your choice of main head - Binocular, Trinocular, or Ergonomic Binocular. Two standard binouclar heads are provided for the secondary users. The microscope has a bright 50 watt quartz halogen power supply. The 10x eyepieces provide a large 22mm field of view. Included are 2x, 4x, 10x, 40x, plan achromat objectives, but we can further customize this to meet your needs.



Specifications
Head:

Main Head: Binocular, Trinocular, or Ergo Binocular

Secondary: Binocular (x2)

Eyepieces: N-WF PL 20x/22mm FOV (x6)
Optical Bridge: Three Head Observation Bridge w/ Pointer
Nosepiece: Reversed, Sextuple
Objectives: Plan Achromat 2x, 4x, 10x, 40x, Objectives
Condenser: Achromat Swing-Out
Stage: Mechanical Stage Dual Slide Holder
Illumination:

50W Koehler Quartz Halogen 12v50w

Universal power supply 110-220v

Focusing: Coarse & Fine Coaxial
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical

The motic BA410 3 head pathology multi-viewing microscope allows for 3 individuals to view through the microscope at the same time. This microscope is configured with a 2x low power scanning objecitve and flip out condenser. The microscope comes with your choice of main head - Binocular, Trinocular, or Ergonomic Binocular. Two standard binouclar heads are provided for the secondary users. The microscope has a bright 50 watt quartz halogen power supply. The 10x eyepieces provide a large 22mm field of view. Included are 2x, 4x, 10x, 40x, plan achromat objectives, but we can further customize this to meet your needs.



Specifications
Head:

Main Head: Binocular, Trinocular, or Ergo Binocular

Secondary: Binocular (x2)

Eyepieces: N-WF PL 20x/22mm FOV (x6)
Optical Bridge: Three Head Observation Bridge w/ Pointer
Nosepiece: Reversed, Sextuple
Objectives: Plan Achromat 2x, 4x, 10x, 40x, Objectives
Condenser: Achromat Swing-Out
Stage: Mechanical Stage Dual Slide Holder
Illumination:

50W Koehler Quartz Halogen 12v50w

Universal power supply 110-220v

Focusing: Coarse & Fine Coaxial
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical
