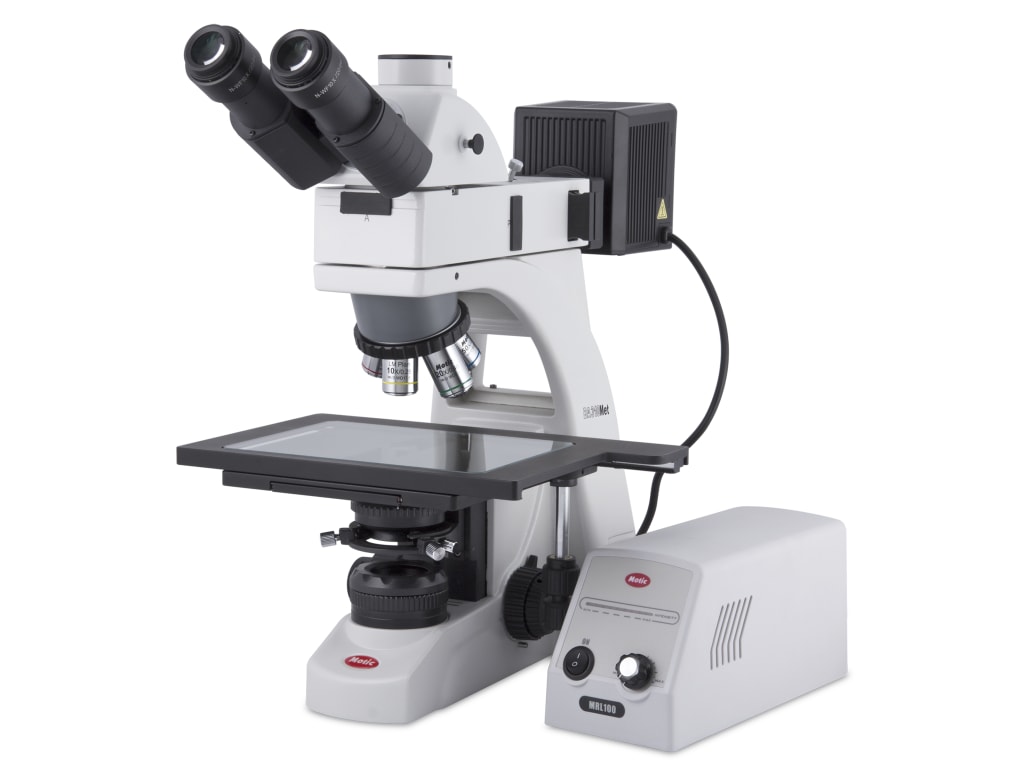

Motic BA310MET-T Incident & Transmitted Metallurgical Micrsocope

Motic BA310MET-T Incident & Transmitted Metallurgical Micrsocope

Available: In Stock
Wishlist
  • Product SKU: 1100100402504
$3,663.00 $4,070.00
Request Quote

Now Industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. The BA310Met also performs well in Educational environments for engineering and material professions, where affordability and ease-of-use are key demands. The BA310Met-T model has a Transmitted light option that allows easy handling and viewing of transparent samples and greatly increases the number of industrial applications.

Max Specimen Thickness: 30mm

Specifications
Head:

Binocular head Siedentopf type 30° inclined

Trinocular head Siedentopf type 30° inclined. ( split 20:80)

Trinocular head Siedentopf type 30° inclined( split 50:50) Erect Image

Eyepieces: Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed quintuple nosepiece
Objectives: LM Plan objectives 5x, 10x, 20x, 50x
Stage:

6”x4” stage with a 150x100mm stroke and a stage area  300x180mm

OR

3”x2” stage with a 75x50mm stroke and a stage area 240x140mm

Condenser: N.A.0.85 condenser
Illumination:

Incident & Transmitted

Koehler illumination quartz halogen 6V/30W with intensity control

Universal power supply 100-240V

Focusing: Coaxial coarse and fine focusing system with tension adjustment
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical



Objective Specification: Type Magnification N.A. W.D.(mm)

Plan 5x 0.13 11.5
10x 0.30 6.8
20x 0.40 11.1
50x 0.55 8.2

Now Industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. The BA310Met also performs well in Educational environments for engineering and material professions, where affordability and ease-of-use are key demands. The BA310Met-T model has a Transmitted light option that allows easy handling and viewing of transparent samples and greatly increases the number of industrial applications.

Max Specimen Thickness: 30mm

Specifications
Head:

Binocular head Siedentopf type 30° inclined

Trinocular head Siedentopf type 30° inclined. ( split 20:80)

Trinocular head Siedentopf type 30° inclined( split 50:50) Erect Image

Eyepieces: Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed quintuple nosepiece
Objectives: LM Plan objectives 5x, 10x, 20x, 50x
Stage:

6”x4” stage with a 150x100mm stroke and a stage area  300x180mm

OR

3”x2” stage with a 75x50mm stroke and a stage area 240x140mm

Condenser: N.A.0.85 condenser
Illumination:

Incident & Transmitted

Koehler illumination quartz halogen 6V/30W with intensity control

Universal power supply 100-240V

Focusing: Coaxial coarse and fine focusing system with tension adjustment
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical



Objective Specification: Type Magnification N.A. W.D.(mm)

Plan 5x 0.13 11.5
10x 0.30 6.8
20x 0.40 11.1
50x 0.55 8.2

Motic BA310MET Brochure
