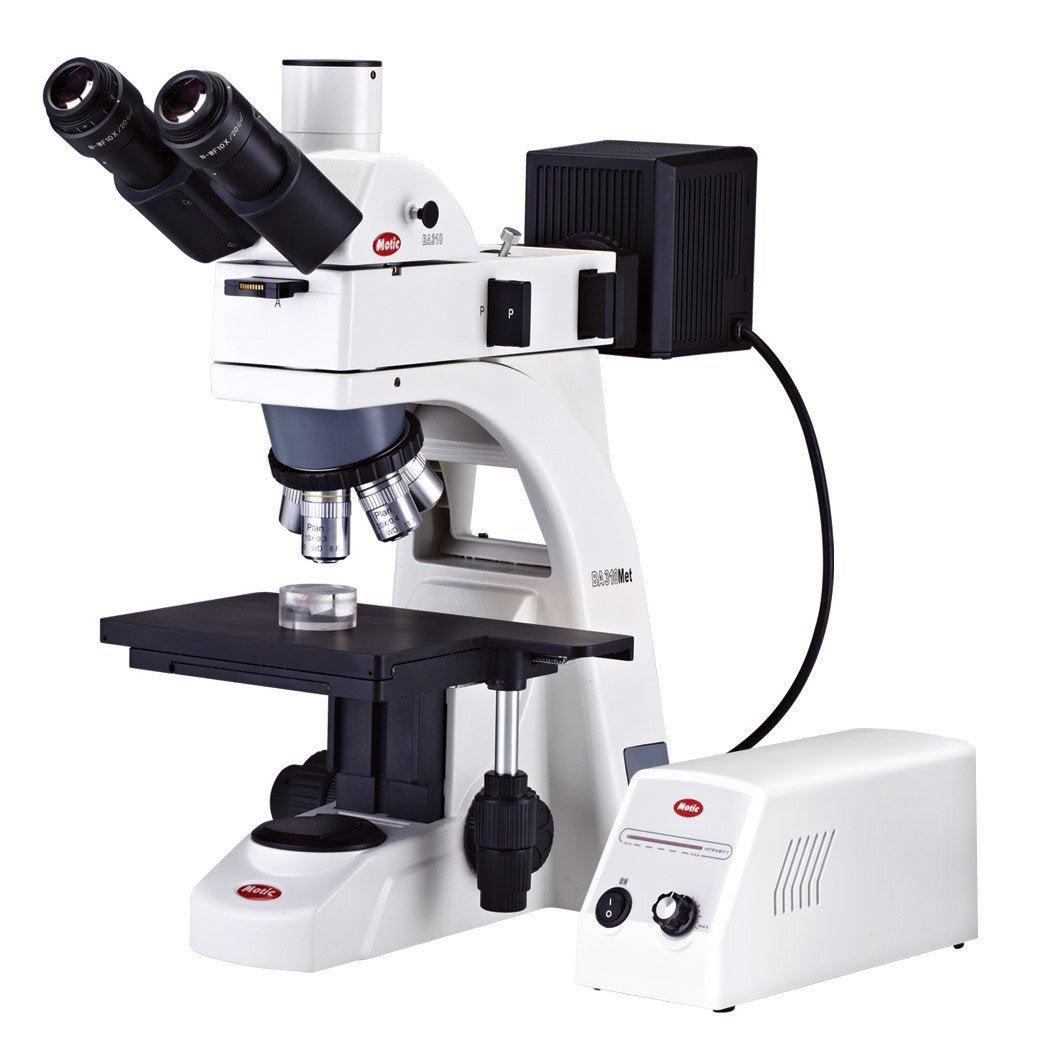

Motic BA310MET Metallurgical Microscope
Motic BA310MET Metallurgical Microscope

Motic BA310MET Metallurgical Microscope

  • SKU: 1100100402144
$3,881.70 $4,313.00
Head Type
Quote Request

Now Industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. The BA310Met also performs well in Educational environments for engineering and material professions, where affordability and ease-of-use are key demands.

Specimen Thickness Max. 30mm

Specifications
Head:

Binocular head Siedentopf type 30° inclined

Trinocular head Siedentopf type 30° inclined (split 20:80)

Trinocular head Siedentopf type 30° inclined (split 50:50) Erect Image

Eyepieces: Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed quintuple nosepiece
Objectives: LM Plan objectives 5x, 10x, 20x, 50x
Stage: 180mm x 140mm hard coated stage with built- in low position coaxial stage control
Illumination:

12V/50W halogen Epi-illumination with external lamp house.

Universal power supply 100-240V

Focusing: Coaxial course and fine focusing system
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical



Objective Specification: Type Magnification N.A. W.D.(mm)

LM Plan 5x 0.13 20.3
10x 0.30 17.5
20x 0.40 8.1
50x 0.55 8.4

Now Industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. The BA310Met also performs well in Educational environments for engineering and material professions, where affordability and ease-of-use are key demands.

Specimen Thickness Max. 30mm

Specifications
Head:

Binocular head Siedentopf type 30° inclined

Trinocular head Siedentopf type 30° inclined (split 20:80)

Trinocular head Siedentopf type 30° inclined (split 50:50) Erect Image

Eyepieces: Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed quintuple nosepiece
Objectives: LM Plan objectives 5x, 10x, 20x, 50x
Stage: 180mm x 140mm hard coated stage with built- in low position coaxial stage control
Illumination:

12V/50W halogen Epi-illumination with external lamp house.

Universal power supply 100-240V

Focusing: Coaxial course and fine focusing system
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical



Objective Specification: Type Magnification N.A. W.D.(mm)

LM Plan 5x 0.13 20.3
10x 0.30 17.5
20x 0.40 8.1
50x 0.55 8.4

Motic BA310MET Brochure
