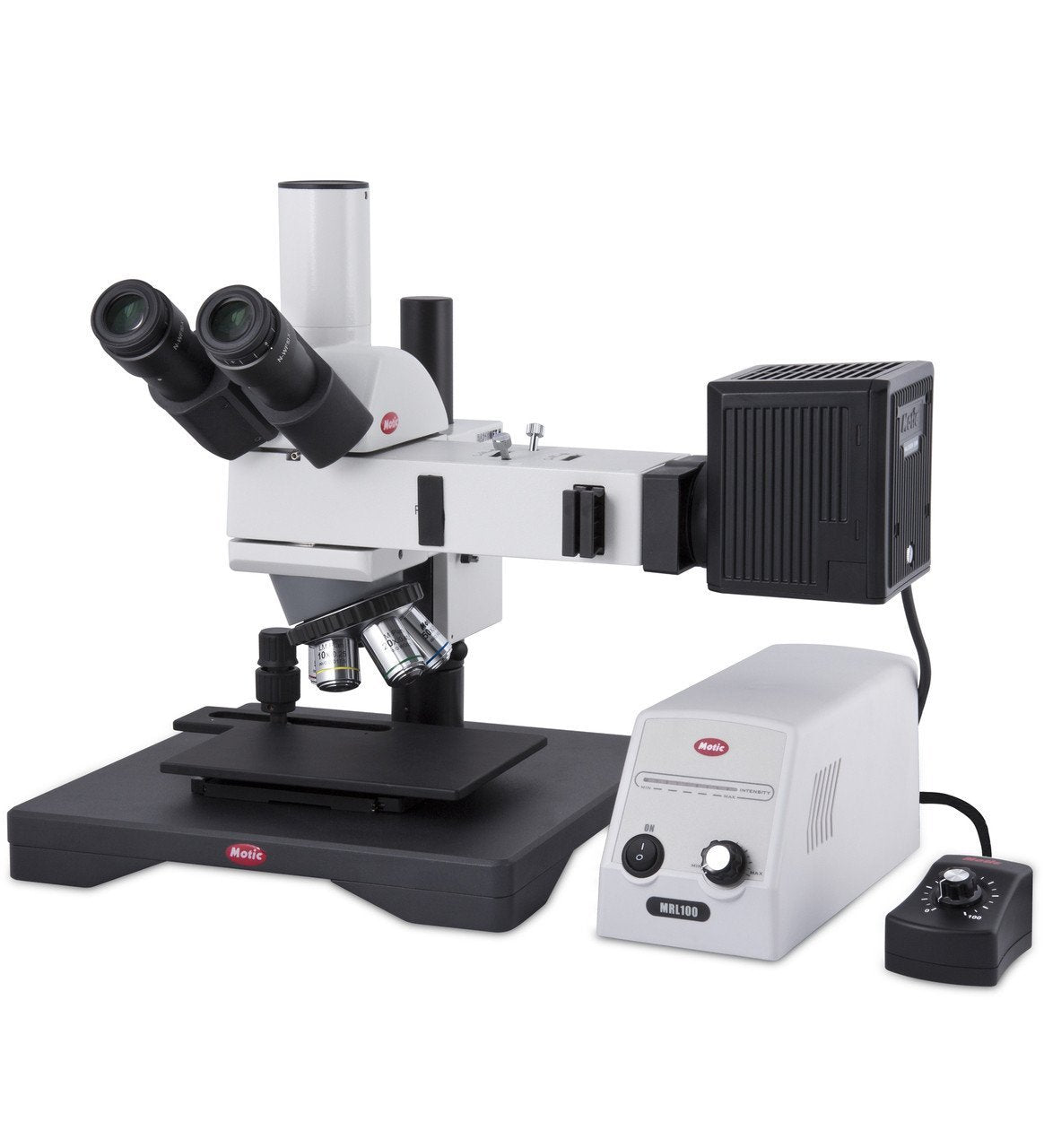

Motic BA310MET-H Metallurgical Microscope Series

Motic BA310MET-H Metallurgical Microscope Series

Available: In Stock
Wishlist
  • Product SKU: 1100100403584
$3,645.90 $4,051.00
Request Quote

A modular inspection and analysis system for electronic components attachable to user machine or can be used independently. For wider application, Polarizing observation is available. Superb image quality and erect images provide easy and quick detection of faults on the observed specimen. The system supports all imaging systems from CCD cameras to digital SLR.

Max Specimen Thickness: 120mm

Specifications
Head:

Binocular head Siedentopf type 30° inclined

Trinocular head Siedentopf type 30° inclined. ( split 20:80)

Trinocular head Siedentopf type 30° inclined( split 50:50) Erect Image

Eyepieces: Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed quintuple nosepiece
Objectives: LM Plan objectives 5x, 10x, 20x, 50x
Stage: Stage with a 100x80mm stroke and a stage area 180x140mm
Stand: Pole Stand
Illumination:

12V/50W halogen Epi-illumination with external lamp house.

Universal power supply 100-240V

Focusing: Coaxial course and fine focusing block
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical

Objective Specification: Type Magnification N.A. W.D.(mm)

Plan 5x 0.13 11.5
10x 0.30 6.8
20x 0.40 11.1
50x 0.55 8.2

A modular inspection and analysis system for electronic components attachable to user machine or can be used independently. For wider application, Polarizing observation is available. Superb image quality and erect images provide easy and quick detection of faults on the observed specimen. The system supports all imaging systems from CCD cameras to digital SLR.

Max Specimen Thickness: 120mm

Specifications
Head:

Binocular head Siedentopf type 30° inclined

Trinocular head Siedentopf type 30° inclined. ( split 20:80)

Trinocular head Siedentopf type 30° inclined( split 50:50) Erect Image

Eyepieces: Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed quintuple nosepiece
Objectives: LM Plan objectives 5x, 10x, 20x, 50x
Stage: Stage with a 100x80mm stroke and a stage area 180x140mm
Stand: Pole Stand
Illumination:

12V/50W halogen Epi-illumination with external lamp house.

Universal power supply 100-240V

Focusing: Coaxial course and fine focusing block
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 1 Year Electrical

Objective Specification: Type Magnification N.A. W.D.(mm)

Plan 5x 0.13 11.5
10x 0.30 6.8
20x 0.40 11.1
50x 0.55 8.2

Motic BA310MET Brochure
