Motic BA310 POL Polarizing Light Microscope

Motic New

$3,276.00  $3,640.00

Request Quote

Based on the success of its popular BA Microscope Series for Bio-Medical applications, Motic is pleased to introduce the new Motic BA310POL, an extremely powerful, yet affordable, polarizing light microscope for sale for Transmitted light samples.

The Motic BA310POL is designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials industry where repeatable observations can be performed with efficiency and reliability. The BA310POL polarizing light microscope for sale also works especially well in Educational applications of material professions, where affordability and ease-of-use are key requirements.

Specifications
Head: Binocular head Siedentopf type 30° inclined or Trinocular (Ligtht Split=0/100 or 20/80)
Eyepieces: Widefield high eyepoint eyepiece N-WF PL10X/20mm with diopter adjustment on both eyepieces, cross hair on one eyepiece
Bertand Lens: Intermediate Tube with Rotatable Analyzer and Bertrand Lens focusable
Plates: Full & 1/4 Wave Retardation Plate
Nosepiece:

Reversed, quadruple

Individually centerable with one reference position

Objectives: CCIS EC Plan Strain-free 4X, 10X, 40X(S), 60X(S)
Condenser:

Achromat Swing-out Condenser, N.A.0.9/0.13 (strain-free)

Rotatable Polarizer

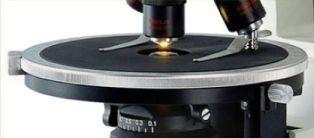

Stage: 360º Circular Rotating Stage lockable position
Illumination:

Koehler illumination quartz halogen 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Accessories: Blue filter, power cord, allen hexagonal key, vinyl dust cover
Warranty: 5 Year Mechanical & 2 Year Electrical

Motic BA310 Pol Brochure
