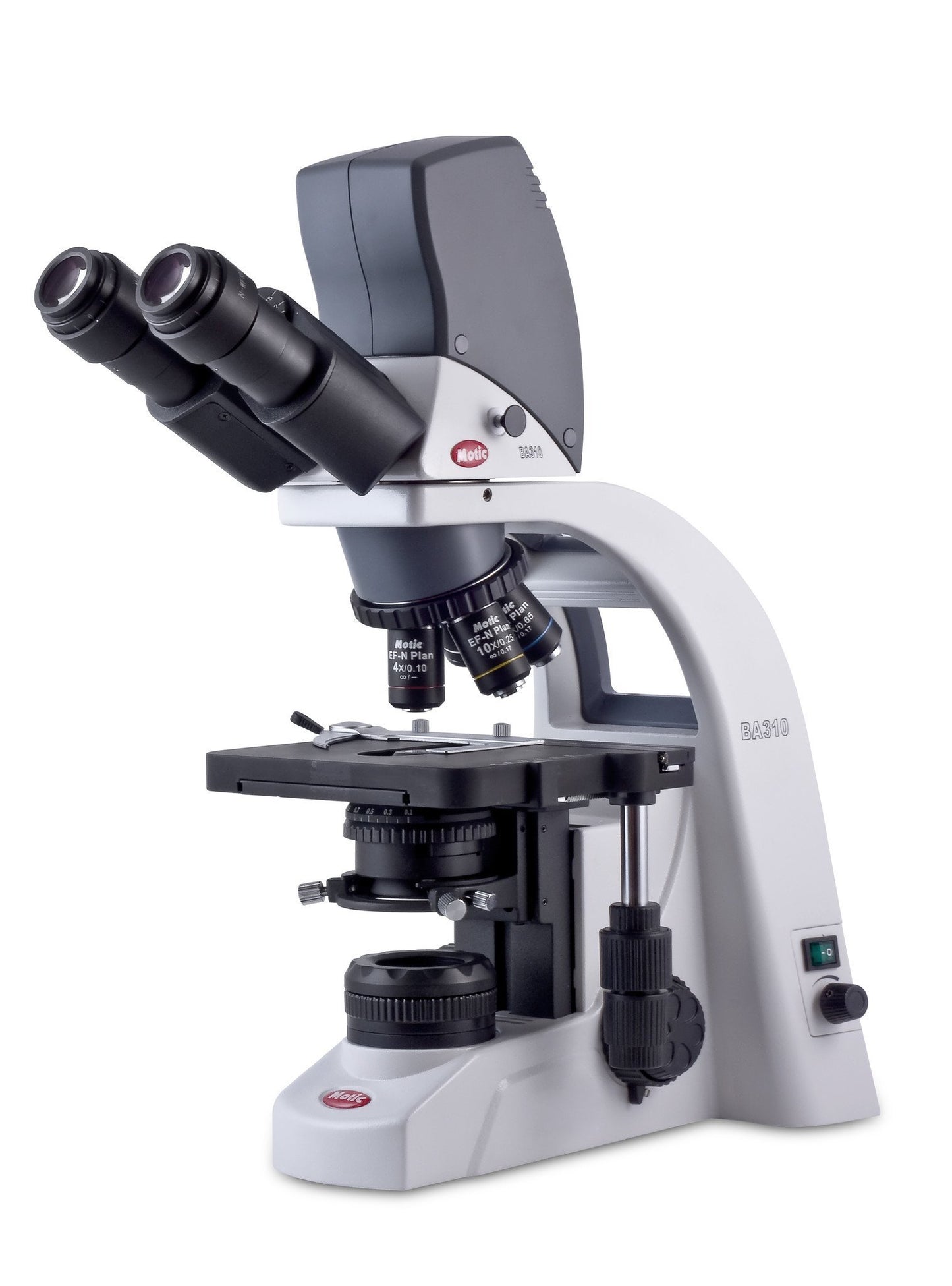

Motic BA310 Digital Compound Microscope

Recently viewed

Motic BA310 Digital Compound Microscope

Motic BA310 Digital Compound Microscope

  • SKU: 1100401200721
$3,058.20 $3,398.00
Quote Request

The BA210 Digital is a Digital version of the BA210 that features a built-in imaging head with 3.0MP streaming live output through USB2.0 connections.



Specifications
Head: Binocular head Siedentopf type, 30º inclined with Built-in digital camera CMOS 1/2” chip
Eyepieces: Wide field high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed, quadruple
Objectives: CCIS EF-N Plan Achromat EF-N PL 4x, 10x, 40x S, 100x S-oil
Condenser: Focusable Abbe condenser N.A. 0.90 with iris diaphragm and slot
Stage: Built in low position coaxial mechanical stage (Right-hand control)
Illumination:

Built in halogen illumination 6V/30W with intensity control

Universal Power supply 100-240V

Focusing: Coaxial coarse and fine focusing adjustment
Accessories: 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover
Camera:

3MP - 2048x1536 pixels with USB2.0 output

Motic Images Plus 2.0 for PC & MAC
Warranty: 5 Year Mechanical & Electrical

The BA210 Digital is a Digital version of the BA210 that features a built-in imaging head with 3.0MP streaming live output through USB2.0 connections.



Specifications
Head: Binocular head Siedentopf type, 30º inclined with Built-in digital camera CMOS 1/2” chip
Eyepieces: Wide field high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece: Reversed, quadruple
Objectives: CCIS EF-N Plan Achromat EF-N PL 4x, 10x, 40x S, 100x S-oil
Condenser: Focusable Abbe condenser N.A. 0.90 with iris diaphragm and slot
Stage: Built in low position coaxial mechanical stage (Right-hand control)
Illumination:

Built in halogen illumination 6V/30W with intensity control

Universal Power supply 100-240V

Focusing: Coaxial coarse and fine focusing adjustment
Accessories: 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover
Camera:

3MP - 2048x1536 pixels with USB2.0 output

Motic Images Plus 2.0 for PC & MAC
Warranty: 5 Year Mechanical & Electrical

Motic BA310 Borchure
