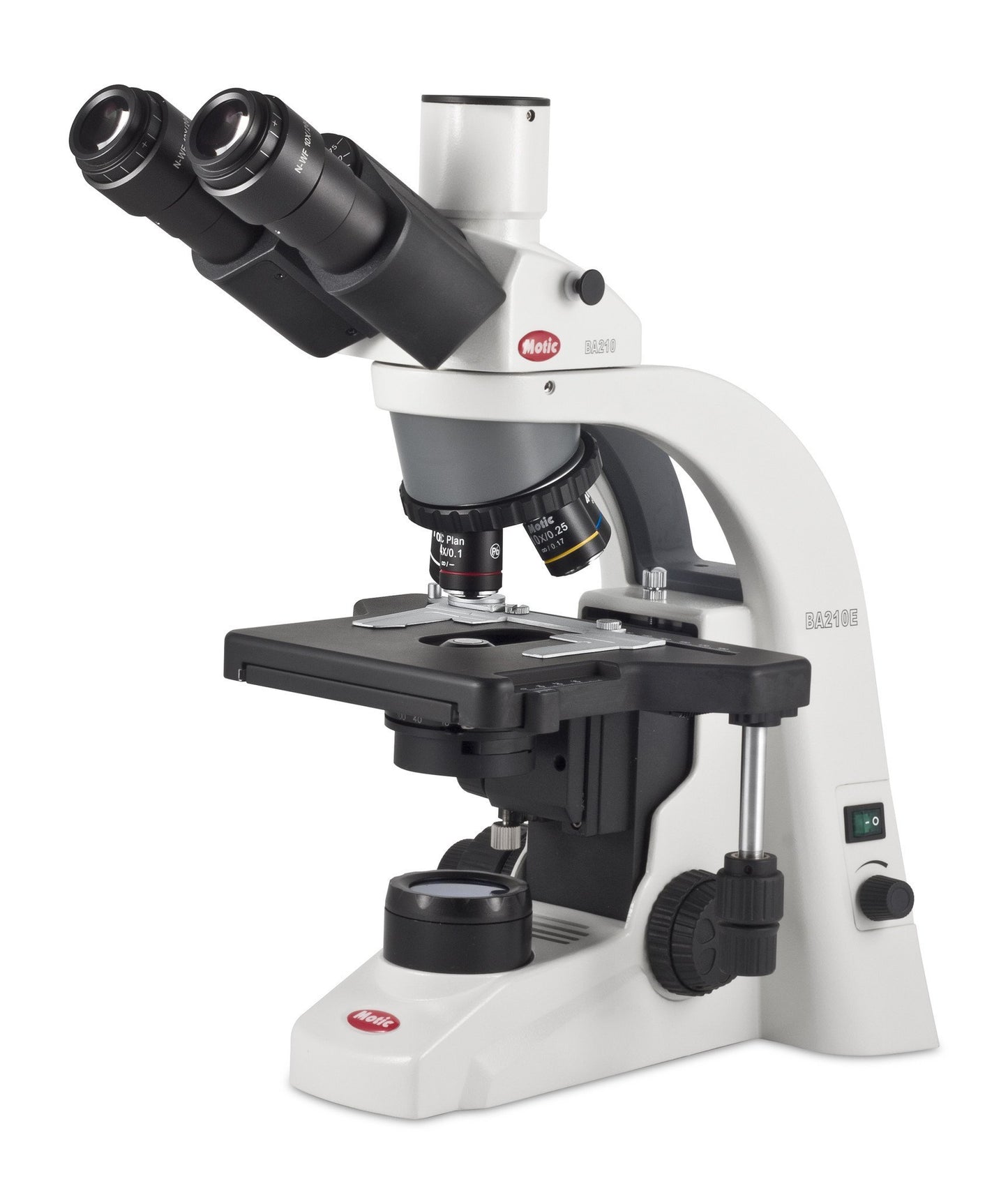

Motic BA210 Elite Compound Microscope

SKU: 1100100403887

$1,322.10 ~~$1,469.00~~

Binocular or Trinocular Head
Plan Achromat Objectives
Rackless XY Stage
LED Illumination
5 Year Mechanical Warranty

Binocular

Trinocular

LED

Quote Request

The new BA210 Elite series is setting a new standard in microscope performance through improvements both in optical and mechanical features. Designed to be used in Educational Life Science, Medical as well as a variety of biological applications, this new optical compound microscope is built around Motic's complete understanding of the daily demands placed on the standard educational microscope. Motic BA210 Elite optical compound microscopes offer student proof features paired with a new generation of EF-N Plan Achromatic objectives. As a result, the Motic BA210 Elite delivers fully corrected intermediate images with crisp visuals and clear digital results.

Specifications
Head:	Binocular OR Trinocular (Light Split 100:0/20:80) head Siedentopf type 30° inclined, 360 ° rotating
Eyepieces:	Wide field high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece:	Reversed, quadruple
Objectives:	CCIS EC Plan Achromat EC PL 4x, 10x, 40x S, 100x Oil
Condenser:	Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot
Stage:	Built in low position coaxial rackless stage (Right-hand control)
Illumination:	3 Watt LED
Focusing:	Coaxial coarse and fine focusing adjustment with tension adjustment
Accessories:	45mm blue filter (for halogen model), immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover, instruction manual
Warranty:	5 Year Mechanical & 1 Year Electrical

Specifications
Head:	Binocular OR Trinocular (Light Split 100:0/20:80) head Siedentopf type 30° inclined, 360 ° rotating
Eyepieces:	Wide field high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Nosepiece:	Reversed, quadruple
Objectives:	CCIS EC Plan Achromat EC PL 4x, 10x, 40x S, 100x Oil
Condenser:	Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot
Stage:	Built in low position coaxial rackless stage (Right-hand control)
Illumination:	3 Watt LED
Focusing:	Coaxial coarse and fine focusing adjustment with tension adjustment
Accessories:	45mm blue filter (for halogen model), immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover, instruction manual
Warranty:	5 Year Mechanical & 1 Year Electrical

Eyepieces

Plan Achromat Objectives

Phase Contrast Objectives

C-Mount Adapters

Please Contact Us for all additional parts and accessories

Quality optical

objectives

Multi-layered coated CCIS^® EC

plan achromat offers superior

colour fidelity.

Consistent diopter

adjustment

This enables perfect usage of reticles

for measuring, counting, etc.

Fatique-free

viewing

Ergonomic viewing angle: 30°

Interpupillary distance: 50-75mm

Large field of view (22mm) enables

fast and comfortable screening.

Rackless stage

Enhances user safety in educational

environments and provides a convenient

movement of X/Y stage.

Halogen or LED

New collector lens assembly with

a secure, screw-on holder for the

frequently used Blue daylight filter.

Phase Contrast and Darkfield

Phase contrast is available in 10X, 20X, 40X and 100X (oil) magnification with phase contrast slider. Darkfield comes with a seperate DF slider (10X, 20X, 40X and 100X oil).
