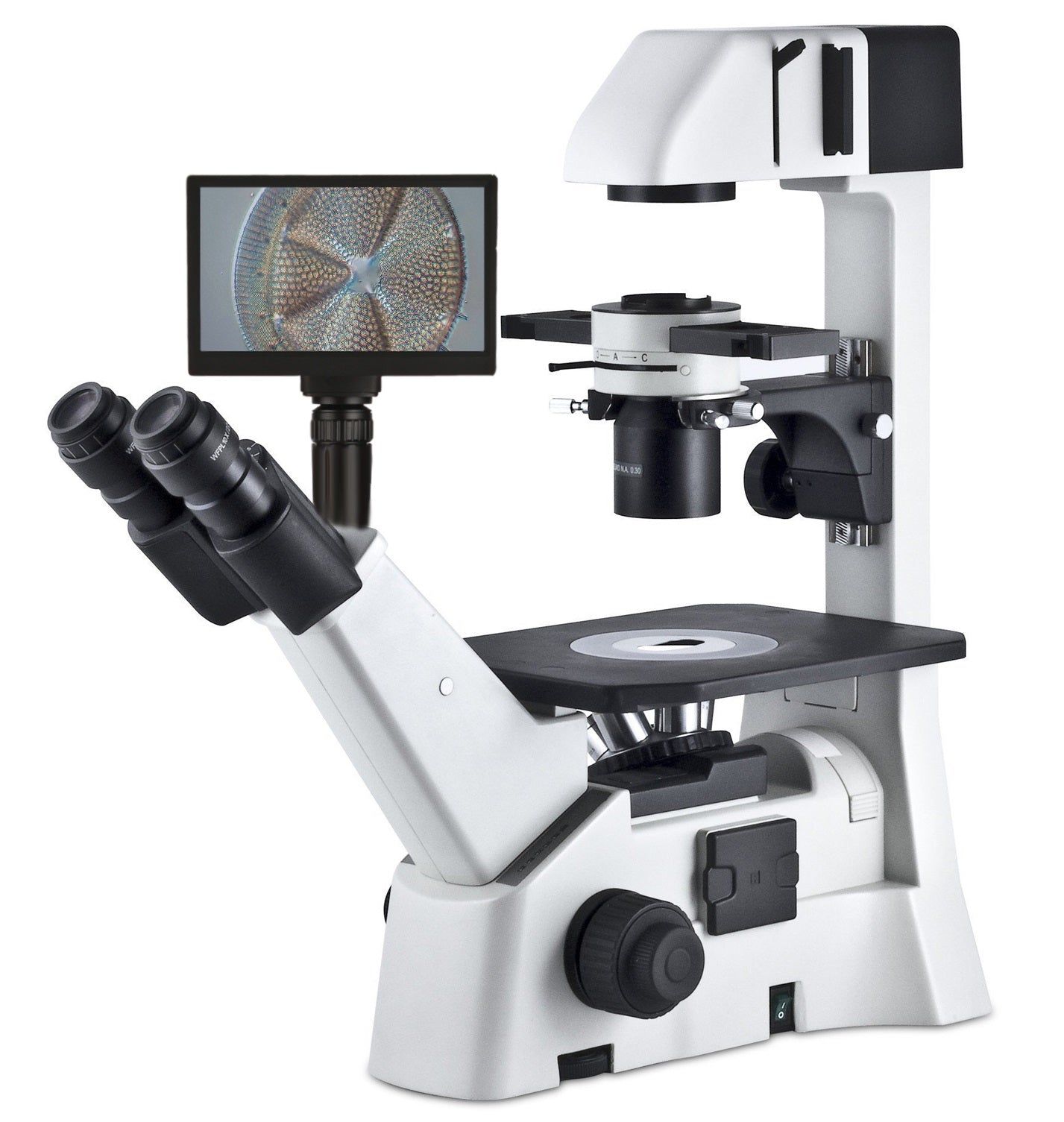

Motic AE31 Phase Contrast Inverted Digital HD Microscope
Motic AE31 Phase Contrast Inverted Digital HD Microscope
|
SKU: 1100100200841-HD
- Choose With or Without Screen
- Phase Contrast 4x, 10x, 20x Objectives
- Ideal For Tissue Culture
- Halogen Illumination
- 5 Year Mechanical & Electrical Warranty
Couldn't load pickup availability
Description
This complete AE31 Digital Phase Contrast Microscope includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.
The AE31 microscope comes with a trinocular viewing head with 10x eyepieces that provide a 20mm field of view. It comes with Plan Achromat 4x and phase 10x, and 20x objectives. Complementing the uniform illumination is the ELWD 0.30 N.A. condenser with its 72mm working distance for large sample and carriers. This does not include a mechanical stage, but one can be added if needed. This microscope can be upgraded to fluorescence.
The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Motic AE31 Microscope Specifications | |
|---|---|
| Head: | Trinocular head Siedentopf type 45° inclined (Light Split: 20/80) |
| Eyepieces: | Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable |
| Nosepiece: | Side facing quadruple nosepiece |
| Objectives: | CCIS Plan Achromat objective PL 4x and Phase PH 10x, PH 20x |
| Condenser: | ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1 |
| Stage: | Plain Stage with metal & glass stage inserts |
| Illumination: |
Halogen illumination 6V/30W with intensity control Universal Power Supply 100-240V |
| Focusing: | Coaxial focusing system |
| Accessories: |
45mm blue, Green Interference and Diffusion filters with filter slider Centering telescope Allen hexagonal key, vinyl dust cover, power cord |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
