Motic AE31 Inverted Phase Contrast Fluorescence Microscope

Motic AE31 Inverted Phase Contrast Fluorescence Microscope

Available: In Stock
Wishlist
$9,000.00
Request Quote

A class leading, phase contrast fluorescence inverted microscope offering upscale research functions in the routine realm.

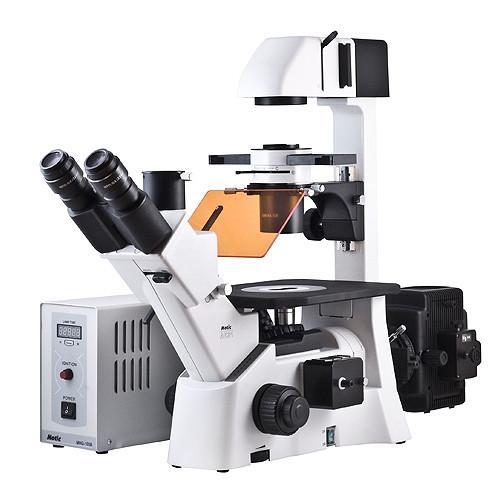

The Motic AE31 is a phase contrast fluorescence inverted microscope for the routine realm, but offers upscale research functions, such as fluorescence and an externally mounted and centrable 30W/6V halogen Koehler illumination.

Motic AE31 Specifications
Head: Trinocular head Siedentopf type 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives: CCIS Plan Achromat objective PL 4x, PH 10x, PH 20x
Fluorescence:

EF-INV EPI-Fluorescence Attachment:

  • Epi-Fluorescence attachment with filter cassette
  • Mercury lamp 100w
  • Lamphouse HBO 100W, collector lens, and mercury lamp socket for HBO 100W
  • Starter unit for HBO 100W
  • Lamp centering tool & power cord
  • DAPI, FITC, & TRITC Filter Cubes Standard - Optional Filter Cubes Below
Condenser: ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1
Stage: Plain Stage with metal & glass stage inserts
Illumination:

Halogen illumination 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system
Accessories:

45mm blue, Green Interference and Diffusion filters with filter slider

Centering telescope

Allen hexagonal key, vinyl dust cover, power cord

Warranty: 5 Year Mechanical &  1 Year Electrical

Standard filter cubes are DAPI, FITC, & TRITC. You can choose any three filter cubes from the list below in replacement of these for the same cost. Please specify which filter cubes you would like in the checkout comment box.

 DAPI & Hoechst

Exciter  D350/50x

Dichroic  400DCLP

Emitter  D460/50m

FITC FITC/RSGFP/FLuo 3/DiO Acardine Orange

Exciter  D480/30x

Dichroic  505DCLP

Emitter  D535/40m

MB-1

Exciter  D470/40x

Dichroic  495DCLP

Emitter  E515lpv2

TRITC (Rhodamine)/DiI/Cy3 Set

Exciter  D540/25x

Dichroic  565DCLP

Emitter  D605/55m

Texas Red / Cy3.5 Set

Exciter  D560/40x

Dichroic  595DCLP

Emitter  D630/60m

Cy5, Alexa Fluor 633, Alexa Fluor 647 Set

Exciter  HQ620/60x

Dichroic  Q660LP

Emitter  HQ700/75m



Endow GFP Bandpass Emission Set

Exciter  HQ470/40x

Dichroic  Q495LP

Emitter  HQ525/50m

Yellow GFP BP (10C/Topaz) Set

Exciter  HQ500/20x

Dichroic  Q515LP

Emitter  HQ535/30m

A class leading, phase contrast fluorescence inverted microscope offering upscale research functions in the routine realm.

The Motic AE31 is a phase contrast fluorescence inverted microscope for the routine realm, but offers upscale research functions, such as fluorescence and an externally mounted and centrable 30W/6V halogen Koehler illumination.

Motic AE31 Specifications
Head: Trinocular head Siedentopf type 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives: CCIS Plan Achromat objective PL 4x, PH 10x, PH 20x
Fluorescence:

EF-INV EPI-Fluorescence Attachment:

  • Epi-Fluorescence attachment with filter cassette
  • Mercury lamp 100w
  • Lamphouse HBO 100W, collector lens, and mercury lamp socket for HBO 100W
  • Starter unit for HBO 100W
  • Lamp centering tool & power cord
  • DAPI, FITC, & TRITC Filter Cubes Standard - Optional Filter Cubes Below
Condenser: ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1
Stage: Plain Stage with metal & glass stage inserts
Illumination:

Halogen illumination 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system
Accessories:

45mm blue, Green Interference and Diffusion filters with filter slider

Centering telescope

Allen hexagonal key, vinyl dust cover, power cord

Warranty: 5 Year Mechanical &  1 Year Electrical

Standard filter cubes are DAPI, FITC, & TRITC. You can choose any three filter cubes from the list below in replacement of these for the same cost. Please specify which filter cubes you would like in the checkout comment box.

 DAPI & Hoechst

Exciter  D350/50x

Dichroic  400DCLP

Emitter  D460/50m

FITC FITC/RSGFP/FLuo 3/DiO Acardine Orange

Exciter  D480/30x

Dichroic  505DCLP

Emitter  D535/40m

MB-1

Exciter  D470/40x

Dichroic  495DCLP

Emitter  E515lpv2

TRITC (Rhodamine)/DiI/Cy3 Set

Exciter  D540/25x

Dichroic  565DCLP

Emitter  D605/55m

Texas Red / Cy3.5 Set

Exciter  D560/40x

Dichroic  595DCLP

Emitter  D630/60m

Cy5, Alexa Fluor 633, Alexa Fluor 647 Set

Exciter  HQ620/60x

Dichroic  Q660LP

Emitter  HQ700/75m



Endow GFP Bandpass Emission Set

Exciter  HQ470/40x

Dichroic  Q495LP

Emitter  HQ525/50m

Yellow GFP BP (10C/Topaz) Set

Exciter  HQ500/20x

Dichroic  Q515LP

Emitter  HQ535/30m

Motic AE30 Microscope Brochure
