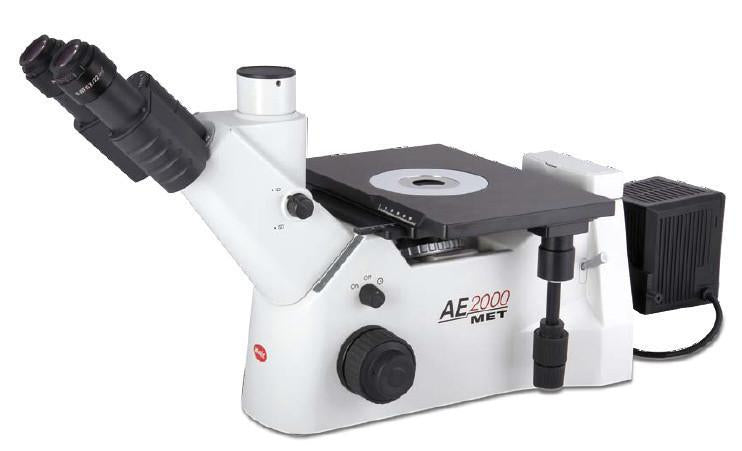

Motic AE2000MET Metallurgical Digital Microscope Package

Motic AE2000MET Metallurgical Digital Microscope Package

$7,192.00
  • Complete Digital Package
  • Brightfield & Darkfield Objectives Avail
  • Mechanical Stage
  • HDMI & USB Output
  • Ideal Materials Microscope
Objectives
Request Quote

The Motic AE2000MET is an inverted metallurgical microscope. Our digital package includes the microscope, c-mount adapter, and USB / HDMI output camera. This digital metallurgical microscope package is ideal for irregular, large, or rigid samples. The ideal sample types for observation under this microscope are metal parts, materials, mineral, die casting, precision molds, etc. This microscope has the option for brightfield or brightfield / darkfield objectives. For ease of use a mechanical stage for moving your sample is included.



Specifications
Head: Trinocular head Siedentopf type 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives:

Brightfield & Darkfield Package Plan Objectives:

  • LM Plan BD 5X N.A. 0.13/WD 17.3
  • LM Plan BD 10X N.A. 0.25/WD 16.3
  • LM Plan BD 20X N.A. 0.4/WD 7.3
  • LM Plan BD 50X N.A. 0.55/WD 7.2
Brightfield Package Plan Objectives:
  • LM  Plan 5X N.A. 0.13/WD 20.3
  • LM  Plan 10X N.A. 0.25/WD 17.5
  • LM  Plan 20X N.A. 0.4/WD 8.1
  • LM  Plan 50X N.A. 0.55/WD 8.4
  • LM  Plan 100X N.A. 0.8/WD 2.0
Stage: Mechanical stage with metal stage insert
Illumination:

Halogen illumination 12V/50W OR 12V/100W with external lamp house and intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system
Accessories: Blue filter, allen hexagonal key, vinyl dust cover, power cord
Warranty: 5 Year Mechanical &  1 Year Electrical



SPECIFICATIONS:
Sensor Type: CMOS
Sensor Size: 1/2.8"
Resolution: 2 MP
Capture format (on SD-card): Still Image 1980 X 1080 (2.0MP) / Video HD 1980 X 1080 (2.0MP)
Live Display Mode (through USB): 1980 x 1080
Live Display Mode (through HDMI): 1920 x 1080 (HD) @ 60 fps*
Pixel Size: 2.8μm x 2.8μm
Scan Mode: Progressive
Data Transfer: HDMI (1080P) and USB2.0
Operating Temperature: From -10 to +60 Degrees Celsius non condensing
Max. Signal to Noise Ratio: 38.1dB
Dynamic Range: 70.1dB
Sensitivity: 1,4V/Lux-sec (550nm)
Slot: SD Card (max 32Gb)
Support Device: Twain and Direct Show Driver
Supported OS: Microsoft Windows XP/Vista/7/8 and MAC OSX
Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video memory min. 512 MB
Lens Mount: C-Mount
Focusable Lens: 12mm
Package Includes: CS Ring Adaptor, Focusable Lens, 30mm and 38mm Eyepiece Adapters, Remote Control, HDMI cable, USB 2.0 Cable, Calibration Slide, Macro Tube, Universal Power Supply, Motic Images Plus 3.0 for PC and OSX
