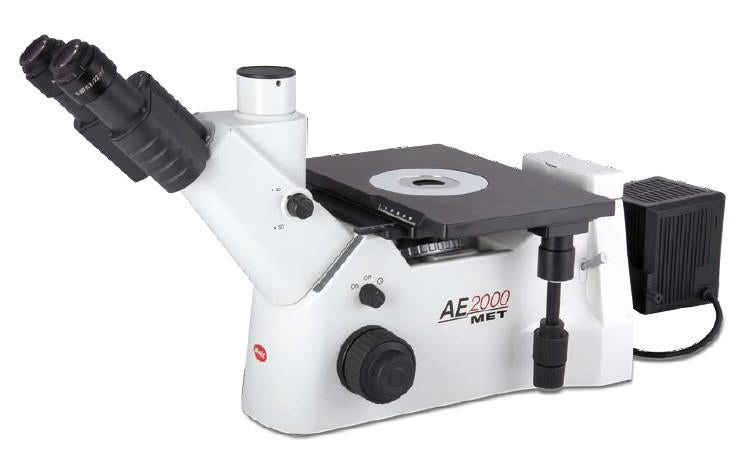

Motic AE2000MET Metallurgical Inverted Microscope

Motic New

$5,895.00  $6,698.00

Request Quote

The AE2000MET BF/DF series inverted industrial microscope, is dedicated to providing a solution for every observation and inspections. Also on such items as irregular, large size, rigid samples. This includes metal parts, materials, mineral, die casting and precision molds etc., which is not convenient to be observed or inspected under upright Microscope for failure analysis, material research or quality control purpose.

The overall optical performance of the AE2000MET series is superb and unique for reproducing a real micro-world of material structure for you, via equipping with a new generation of BF and DF Long working distance Metallurgical plan objective be made of high-quality glass and upgrade anti-reflex coating tech, combining a variety of observation methods of BrightField, Darkfield, simple Polarizing etc., AE2000MET is suitable for whatever failure analysis or material research or quality control in all industry.

Specifications
Head: Trinocular head Siedentopf type 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives:

Brightfield & Darkfield Package Plan Objectives:

  • LM Plan BD 5X N.A. 0.13/WD 17.3
  • LM Plan BD 10X N.A. 0.25/WD 16.3
  • LM Plan BD 20X N.A. 0.4/WD 7.3
  • LM Plan BD 50X N.A. 0.55/WD 7.2
Brightfield Package Plan Objectives:
  • LM  Plan 5X N.A. 0.13/WD 20.3
  • LM  Plan 10X N.A. 0.25/WD 17.5
  • LM  Plan 20X N.A. 0.4/WD 8.1
  • LM  Plan 50X N.A. 0.55/WD 8.4
  • LM  Plan 100X N.A. 0.8/WD 2.0
Stage: Mechanical stage with metal stage insert
Illumination:

Halogen illumination 12V/50W OR 12V/100W with external lamp house and intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system
Accessories: Blue filter, allen hexagonal key, vinyl dust cover, power cord
Warranty: 5 Year Mechanical &  1 Year Electrical

Motic AE2000MET Brochure
