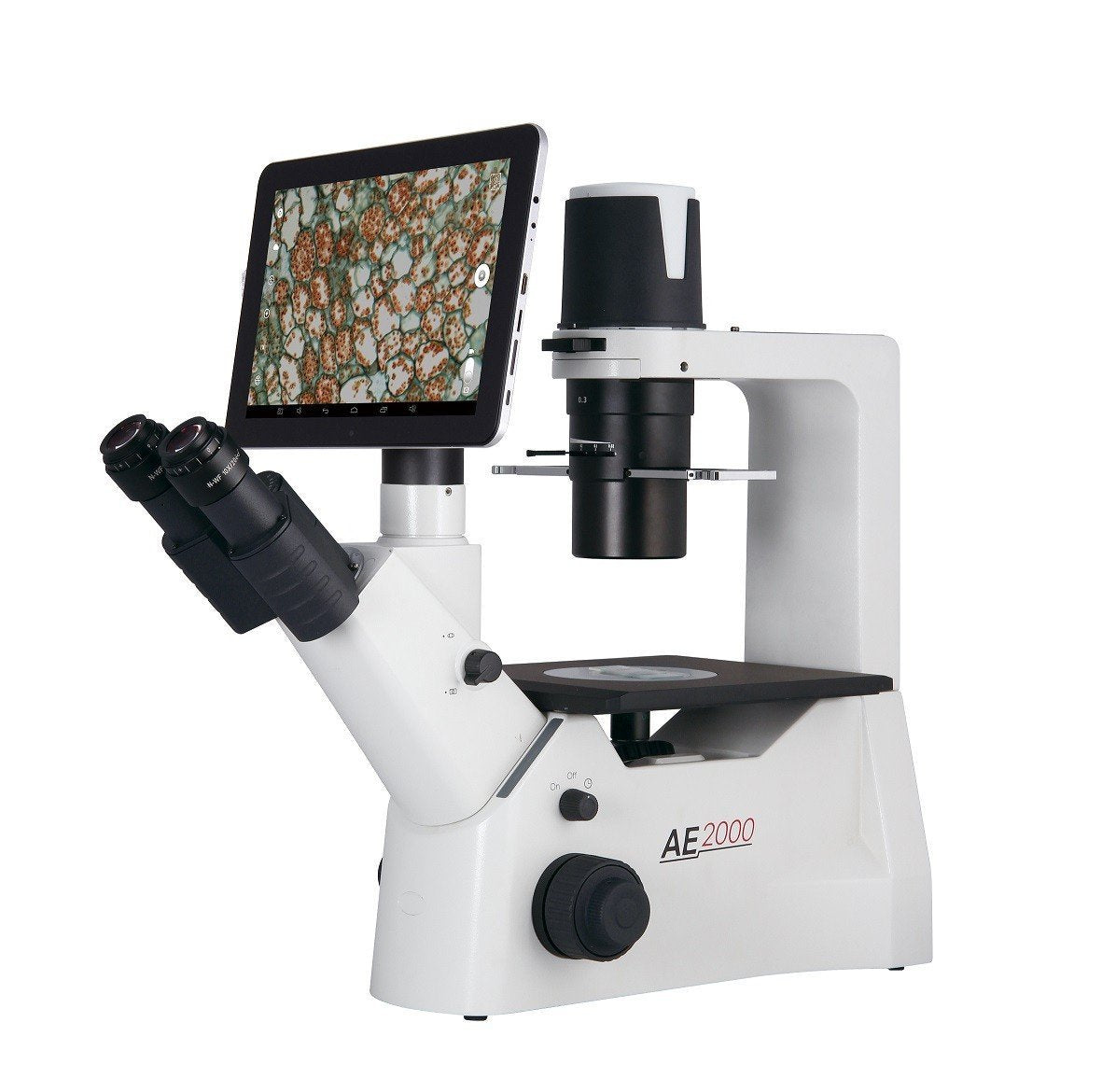

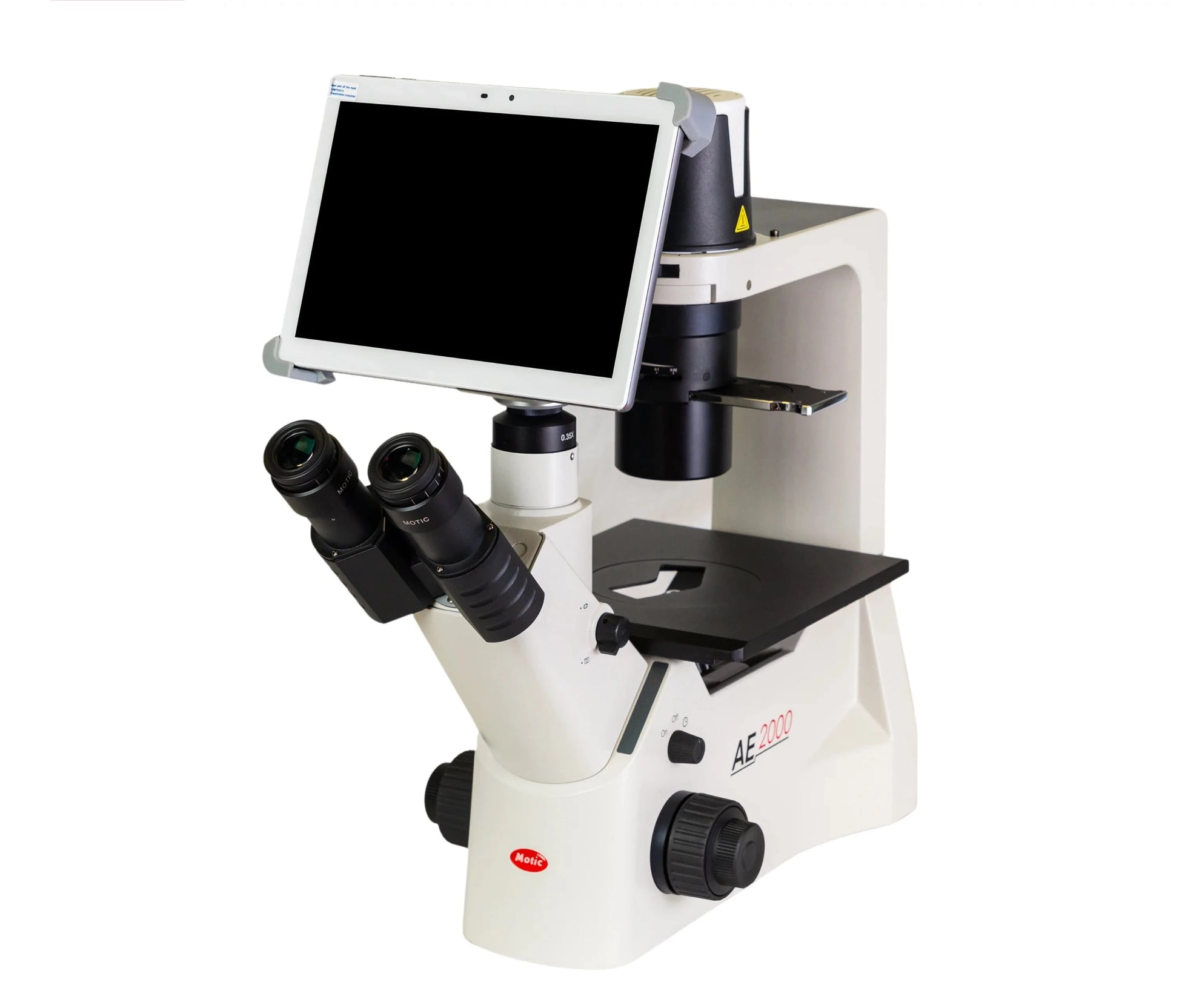

Motic AE2000 Inverted Phase Contrast Digital Tablet Microscope

Motic AE2000 Inverted Phase Contrast Digital Tablet Microscope

Available: In Stock
  • Complete Digital Package
  • Phase Contrast 4x & 10x
  • 10.1" Touchscreen Camera
  • Ideal For Tissue Culture
  • Optional Accessories
Wishlist
  • Product SKU: 1100103800025-T
$3,429.00 $3,811.00
Request Quote

The Motic AE2000 Inverted Phase Contrast Digital Tablet Microscope comes as a complete digital microscope package including the microscope, c-mount adapter, and camera tablet. The microscope itself comes with 10x eyepieces and phase 4x and 10x objectives. The microscope comes standard with a plain stage however you can add a mechanical stage if desired. The 10.1" tablet allows for touch screen controls. You can save images directly to the removable SD card on the tablet or using the WiFi setting broadcast the image to other devices.



Specifications
Head: Trinocular Siedentopf 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives: PL Phase Contrast 4x & 10x objectives
Condenser: ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1
Stage: Plain Stage with metal & glass stage inserts
Illumination:

Halogen illumination 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Camera:

10.1" Touchscreen tablet

5.0 M.P.

16 G.B. Internal Storage

Mini HDMI output 1080p

Android 4.2 operating system

WiFi output

Accessories:

45mm blue, Green Interference and Diffusion filters with filter slider

Centering Telescope

Allen hexagonal key, vinyl dust cover, power cord

Warranty: 5 Year Mechanical &  2 Year Electrical

The Motic AE2000 Inverted Phase Contrast Digital Tablet Microscope comes as a complete digital microscope package including the microscope, c-mount adapter, and camera tablet. The microscope itself comes with 10x eyepieces and phase 4x and 10x objectives. The microscope comes standard with a plain stage however you can add a mechanical stage if desired. The 10.1" tablet allows for touch screen controls. You can save images directly to the removable SD card on the tablet or using the WiFi setting broadcast the image to other devices.



Specifications
Head: Trinocular Siedentopf 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives: PL Phase Contrast 4x & 10x objectives
Condenser: ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1
Stage: Plain Stage with metal & glass stage inserts
Illumination:

Halogen illumination 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Camera:

10.1" Touchscreen tablet

5.0 M.P.

16 G.B. Internal Storage

Mini HDMI output 1080p

Android 4.2 operating system

WiFi output

Accessories:

45mm blue, Green Interference and Diffusion filters with filter slider

Centering Telescope

Allen hexagonal key, vinyl dust cover, power cord

Warranty: 5 Year Mechanical &  2 Year Electrical
