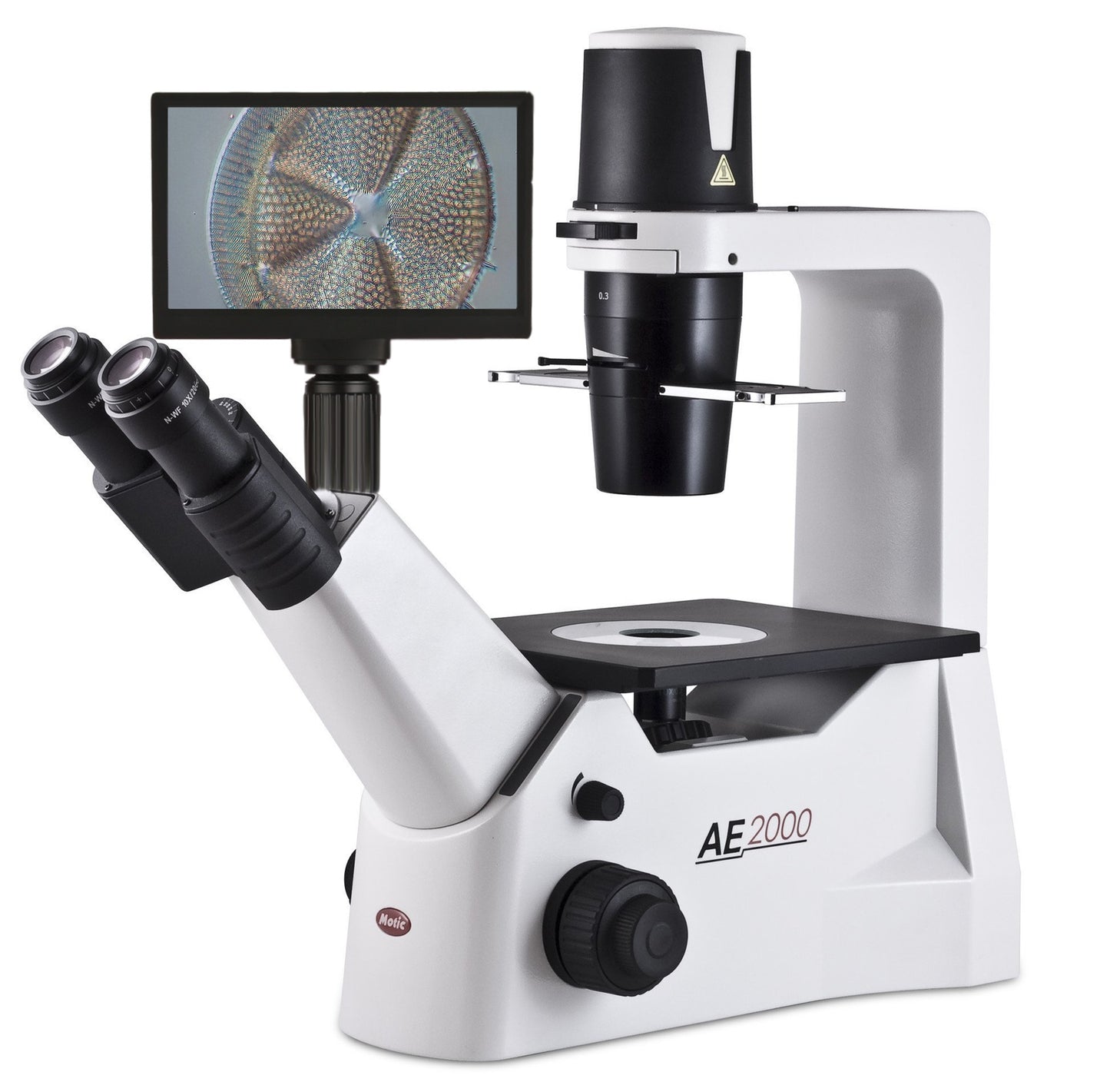

Motic AE2000 Inverted Phase Contrast Digital Microscope

Recently viewed

Motic AE2000 Inverted Phase Contrast Digital Microscope

Motic AE2000 Inverted Phase Contrast Digital Microscope

  • SKU: 1100103800025-HD
$3,150.00 $3,705.00
  • Choose With or Without Screen
  • Phase Contrast 4x & 10x Objectives
  • Ideal For Tissue Culture
  • Halogen Illumination
  • 5 Year Mechanical Warranty
Camera
Request Quote

This complete Accu-Scope EXI-410 digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Motic AE2000 Digital Microscope Package offers a complete all in one digital phase contrast microscope solution. The microscope comes complete with trinocular head, c-mount adapter, and camera. It comes with Plan Achromat Phase 4x, 10x, a 20x objective can be added. Also provided is a plain stage with metal & glass inserts, a mechanical stage can be added if needed!

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Binocular Siedentopf 45° inclined OR Trinocular Siedentopf 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives:

 CCIS Plan Achromat PL PH4x, PH10x

Condenser: ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1
Stage: Plain Stage with metal & glass stage inserts
Illumination:

Halogen illumination 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Accessories:

45mm blue, Green Interference and Diffusion filters with filter slider

Centering Telescope

Allen hexagonal key, vinyl dust cover, power cord

Warranty: 5 Year Mechanical &  2 Year Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

This complete Accu-Scope EXI-410 digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Motic AE2000 Digital Microscope Package offers a complete all in one digital phase contrast microscope solution. The microscope comes complete with trinocular head, c-mount adapter, and camera. It comes with Plan Achromat Phase 4x, 10x, a 20x objective can be added. Also provided is a plain stage with metal & glass inserts, a mechanical stage can be added if needed!

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Binocular Siedentopf 45° inclined OR Trinocular Siedentopf 45° inclined (Light Split: 20/80)
Eyepieces: Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Nosepiece: Side facing quadruple nosepiece
Objectives:

 CCIS Plan Achromat PL PH4x, PH10x

Condenser: ELWD N.A. 0.30 condenser - Phase slider Ph0, BF, Ph1
Stage: Plain Stage with metal & glass stage inserts
Illumination:

Halogen illumination 6V/30W with intensity control

Universal Power Supply 100-240V

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Accessories:

45mm blue, Green Interference and Diffusion filters with filter slider

Centering Telescope

Allen hexagonal key, vinyl dust cover, power cord

Warranty: 5 Year Mechanical &  2 Year Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
