Mitutoyo TM-A1005B Toolmaker's Measuring Microscope Digimatic
Mitutoyo TM-A1005B Toolmaker's Measuring Microscope Digimatic

Mitutoyo TM-A1005B Toolmaker's Measuring Microscope Digimatic

  • SKU: 176-821A
$7,515.00 $8,350.00
Quote Request

The Mitutoyo TM-A1005B Toolmaker's microscope is well suited for measuring dimensions and angles of machined metals. It can be used to check the shape of screws and gears by attaching an optional reticle. The TM-A1005B features a 4 x 2 in travel stage and includes two digimatic heads.

Mitutoyo Cat No. 176-821A

Specifications
Optical Tube:
Monocular Type (Vertical tilt angle: 60 degrees)
Observation Image: Errect
Eyepiece Protractor: Resolution (graduation) : 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point
Eyepiece: Standard accessory: 15X (field number: 13), Options: 10X, 20X
Objective lens: 2x
Microscope Head:

Maximum height of workpiece: 4.21" / 107mm

Focusing Method: Manual (Coarse feed)

Illumination:

Transmitted illumination: Stepless brightness adjustment, White LED light source, With green filter

Surface illumination: Oblique single-source type, Stepless brightness adjustment, White LED light source

Cross-travel Stage:

Measuring Range: 4" x 2" / 100×50mm

Table Size: 9.44" x 6" / 240×152mm

Usable Area of Stage Glass: 6" x 3.8" / 154×96mm

Maximum Stage Glass Loading: 11 lbs. / 5kg

Linear Measurement:

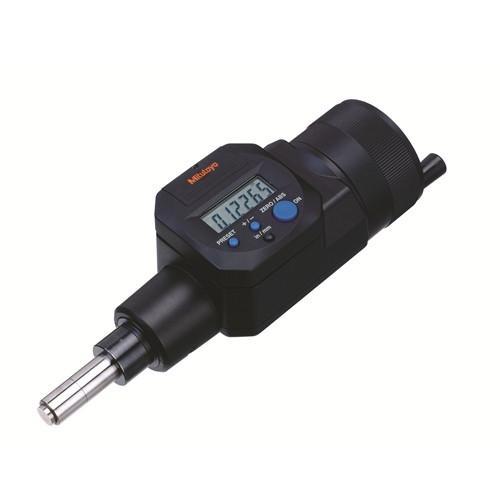

Two digimatic micrometer heads for X-Y measurement

Resolution: .00005"/1μm

Travel Range: 2"/50mm

Power Supply: 120VAC Maximum power consumption: 4.2W

The Mitutoyo TM-A1005B Toolmaker's microscope is well suited for measuring dimensions and angles of machined metals. It can be used to check the shape of screws and gears by attaching an optional reticle. The TM-A1005B features a 4 x 2 in travel stage and includes two digimatic heads.

Mitutoyo Cat No. 176-821A

Specifications
Optical Tube:
Monocular Type (Vertical tilt angle: 60 degrees)
Observation Image: Errect
Eyepiece Protractor: Resolution (graduation) : 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point
Eyepiece: Standard accessory: 15X (field number: 13), Options: 10X, 20X
Objective lens: 2x
Microscope Head:

Maximum height of workpiece: 4.21" / 107mm

Focusing Method: Manual (Coarse feed)

Illumination:

Transmitted illumination: Stepless brightness adjustment, White LED light source, With green filter

Surface illumination: Oblique single-source type, Stepless brightness adjustment, White LED light source

Cross-travel Stage:

Measuring Range: 4" x 2" / 100×50mm

Table Size: 9.44" x 6" / 240×152mm

Usable Area of Stage Glass: 6" x 3.8" / 154×96mm

Maximum Stage Glass Loading: 11 lbs. / 5kg

Linear Measurement:

Two digimatic micrometer heads for X-Y measurement

Resolution: .00005"/1μm

Travel Range: 2"/50mm

Power Supply: 120VAC Maximum power consumption: 4.2W
