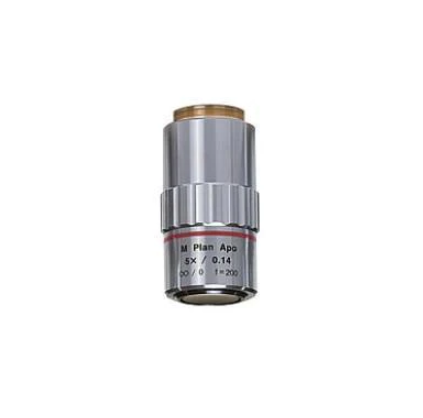

Mitutoyo 5x M Plan APO Objective - 378-802-12

Mitutoyo 5x M Plan APO Objective - 378-802-12

  • SKU: 378-802-12
$647.00 $719.00
Quote Request

Mitutoyo 5x M Plan Apochromatic Objective - 378-802-12.The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications. This is the direct replacement for 378-802-6

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 5x
N.A.: 0.14
Working Distance: 34.0mm
Focal Length: 40mm
Resolving Power: 2.0µm
Focal Depth:
14µm
Field of View with Ø24 Eyepiece Ø4.8
Real Field of View with 1/2" Chip Camera 0.96 x 1.28
Thread Size: M26
Part Number: 378-802-12
