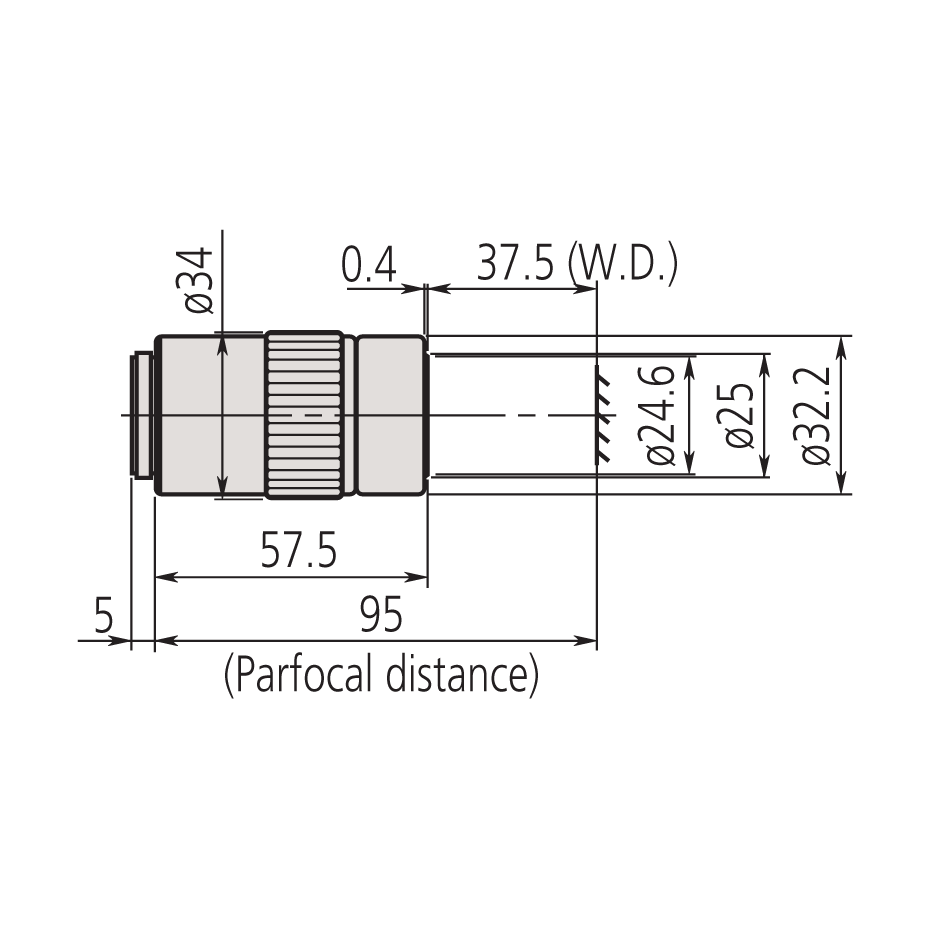

Mitutoyo 5x M Plan APO NIR Objective - 378-822-5
Mitutoyo 5x M Plan APO NIR Objective - 378-822-5

Mitutoyo 5x M Plan APO NIR Objective - 378-822-5

  • SKU: 378-822-5
$1,593.00 $1,770.00
Quote Request

Mitutoyo 5x M Plan APO NIR Objective - 378-822-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.



Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 5x
N.A.: 0.14
Working Distance: 37.5mm
Wavelength Range: 480nm to 1800nm
Focal Length: 40mm
Resolving Power: 2.0µm
Focal Depth:
14µm
Field of View with Ø24 Eyepiece Ø4.8
Real Field of View with 1/2" Chip Camera 0.96 x 1.28
Thread Size: M26
Part Number: 378-822-5
