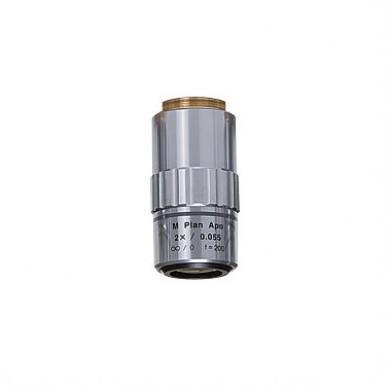

Mitutoyo 2x M Plan APO Objective - 378-801-12
- SKU: 378-801-12
$927.00
$1,030.00
Mitutoyo 2x M Plan Apochromatic Objective - 378-801-12. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.
| Specifications | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible |
| Magnification: | 2x |
| N.A.: | 0.055 |

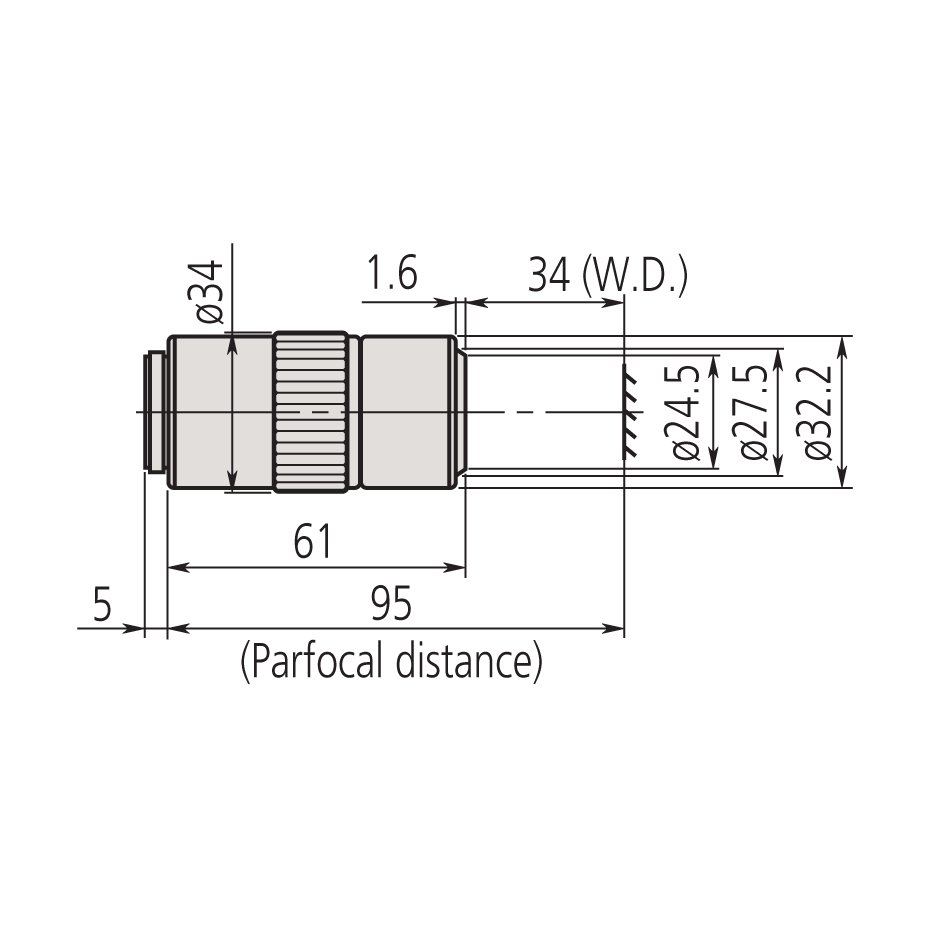

| Working Distance: | 34mm |
| Resolving Power: | 5.0µm |
| Focal Depth: |
91µm |
| Field of View with Ø24 Eyepiece | Ø12 |
| Real Field of View with 1/2" Chip Camera | 2.4 x 3.2 |
| Thread Size: | M26 |
| Part Number: | 378-801-12 |
Mitutoyo 2x M Plan Apochromatic Objective - 378-801-12. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.
| Specifications | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible |
| Magnification: | 2x |
| N.A.: | 0.055 |
| Working Distance: | 34mm |
| Resolving Power: | 5.0µm |
| Focal Depth: |
91µm |
| Field of View with Ø24 Eyepiece | Ø12 |
| Real Field of View with 1/2" Chip Camera | 2.4 x 3.2 |
| Thread Size: | M26 |
| Part Number: | 378-801-12 |
