Mitutoyo 10x M Plan APO Objective - 378-803-3
Mitutoyo 10x M Plan APO Objective - 378-803-3

Mitutoyo 10x M Plan APO Objective - 378-803-3

  • SKU: 378-803-3
$792.90 $881.00
Request Quote

Mmitutoyo 10x M Plan Apochromatic Objective -378-803-3. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 10x
N.A.: 0.28

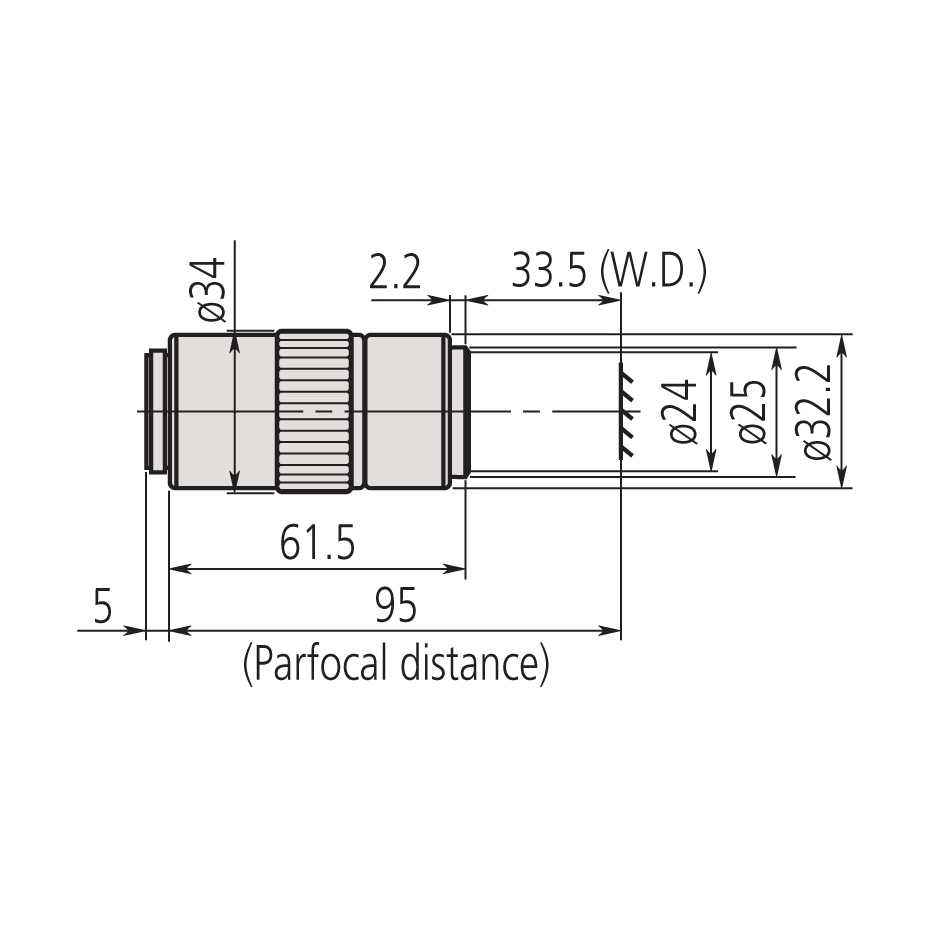

Working Distance: 33.5mm
Focal Length: 20mm
Resolving Power: 1.0µm
Focal Depth:
3.5µm
Field of View with Ø24 Eyepiece Ø2.4
Real Field of View with 1/2" Chip Camera 0.48 x 0.64
Thread Size: M26
Part Number: 378-803-3
