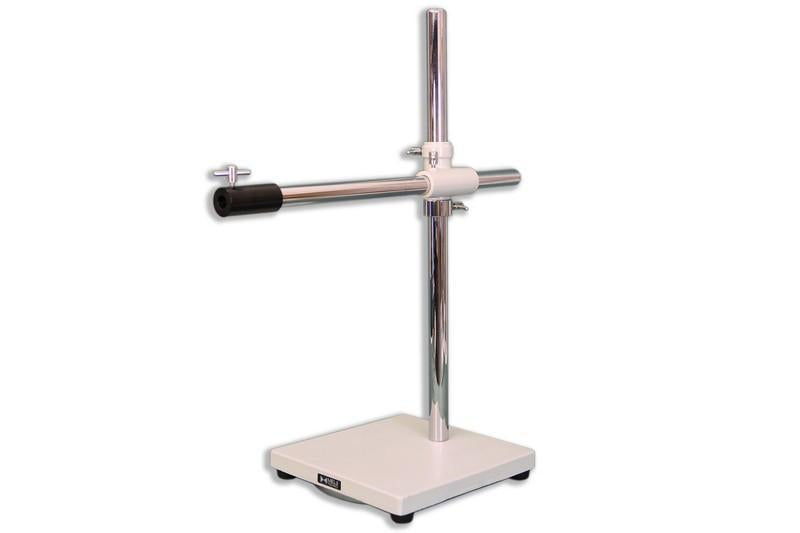

Meiji S-4400 Micorscope Boom Stand

Meiji Boom Stands

$504.00  $560.00

Request Quote

The S-4400 Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with a Bonder Mount Socket at the end of the horizontal arm accepts the industry standard 5/8"diameter microscope mounting dowel. The bonder mount socket accepts FS and FSC holders which can be inclined at 180 ° and rotated 360°, 16mm diameter mounting pin. (Must be ordered separately)  Equipped with a pillar, crossarm and 610mm (24.00”) vertical pole and a 530mm (20.86”) horizontal pole. The S-4400 offers minimal space requirement and greatest possible amount of work room.  The S-4400 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely left to right or can be securely locked into position with our T handle knobs. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies.  Anti-rotation is stablilized by a locking pin on the vertical post.  The S-4400 Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components. The S-4400 is equipped by a 35 lbs. base. The S-4400 boom stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies.  This boom stand is an affordable; low cost with high quality safety features makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns makes this boom stand an excellent choice in labs and production facilities.

   • Vertical pole: Length: 610mm (Included)
   • Horizontal pole: Length:530mm (Included)
   • Sturdy solid metal 265mm x 265mm x 25mm -35 lbs. base for excellent stability (Included)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Dimensions:
   • Weight: 45lbs
   • Box Size: 25 x 14 x 10 inches
