$3,850.00 $4,565.00
Head
Objective
Request Quote

RZ Series CMO Stereo Microscopes are advanced, high-performance, modular, stereo microscopes specifically designed with today's demanding microscopy applications in mind. Engineered around a common main objective and parallel optical paths, the RZ Series offers crisp, distortion-free, high-resolution images at magnifications ranging from 3.75x to 300x.
The RZ features a 10:1 zoom ratio with built-in variable dual-iris diaphragms and 12 positive click stops through the zoom range. Two perpendicular columns of eight zoom lenses in four groups move in smooth motion controlled by ergonomically sized and positioned zoom knobs. A magnification indicator is conveniently located on the zoom controls.
Exterior components are painted with special anti-static finish which is especially useful when working in sensitive environments.

Please Note:  This item is a NEW, old stock microscope.  It is still the current model from Meiji but not customizable because we have it in stock with only a few accessories. Please contact us if you are looking for additional components or different configurations including illumination!

Specifications
Head:

Binocular viewing head, fully rotatable and locking

Photo Port/Beam Splitter for digital imaging - (Optional)

Eyepieces: Ultra Widefield 10x Eyepieces with 25mm reticle mount, FN24, 21mm Eye Relief, 25.0mm Focal Length
Magnification: 7.5x to 75x zoom range (75x to 750x with 10x Eyepieces)
Objectives:

RZ Plan 1.0X - Working distance 76mm (Optional)

RZ Plan 0.5X - Working distance 164mm (Optional)

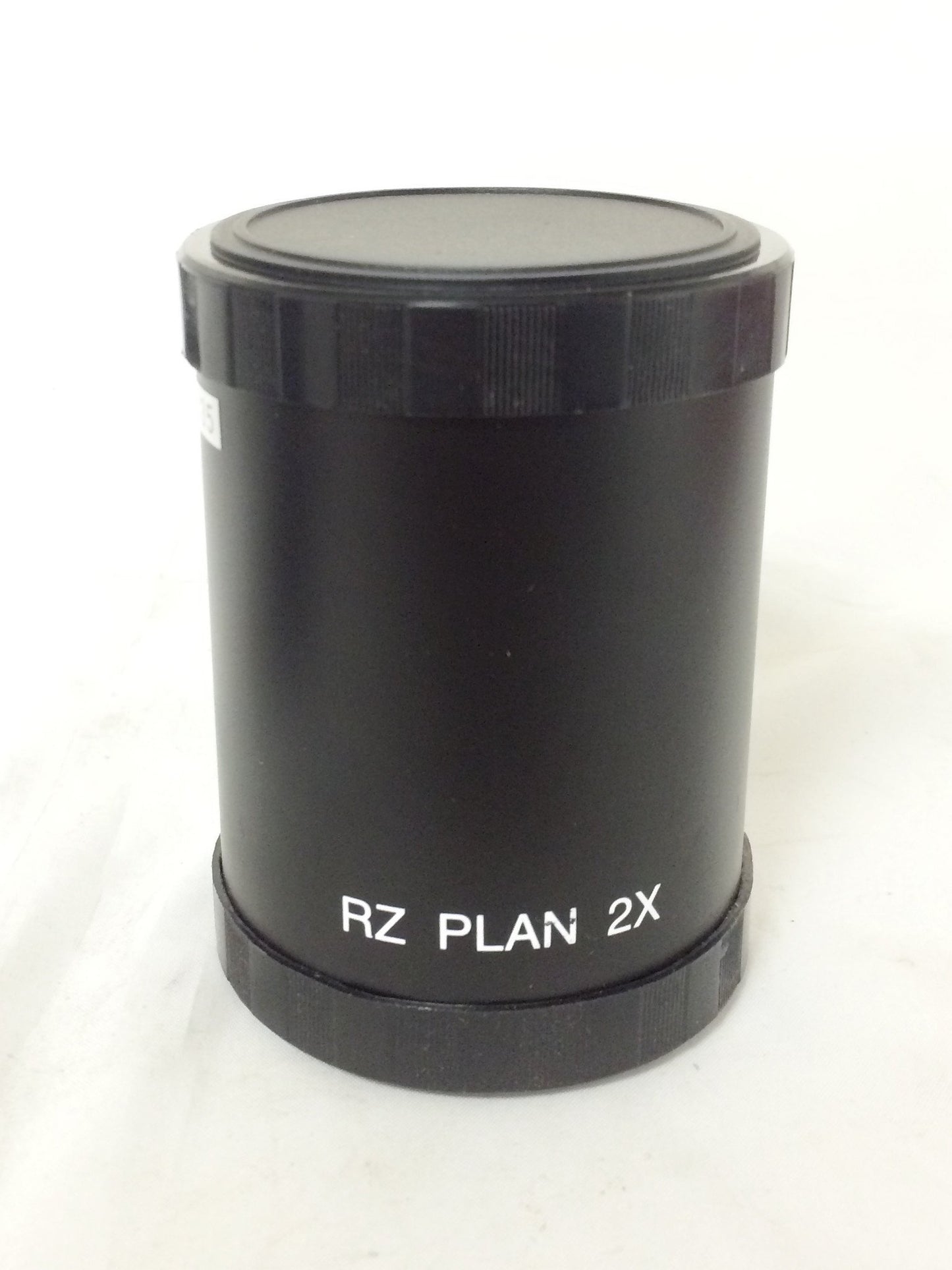

RZ Plan 2X - Working distance 29mm (Optional)

Stand:

Pole Stand with aluminum alloy base - Optical Carrier is height adjustable on the stand and has a coaxial coarse and fine focus system

Pillar 280mm x 255mm x 35mm. Pillar height: 325mm

Accessories: Stage clips, eyeguards, instruction manual, black and white stage plate
Warranty: 1 year
