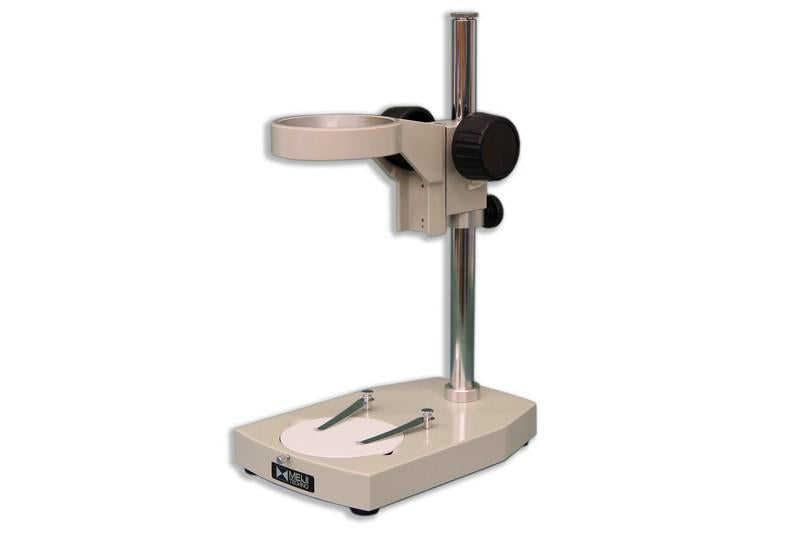

Meiji PX Microscope Pole Stand

The PX stand in Meiji Techno’s basic pole-type plain stand with the longest vertical pole at 11.41” which accommodates taller specimens. Equipped with a "FX" focusing holder with integral illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 single arm fiber optic cable attached to a FL150/115 illuminator. The PX Stand is mounted on a plain base and it accepts our 84mm EMZ, EMT and EMF stereo microscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PX stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 11.41” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FX Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo bodies.  Integrated illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 or the FL150/12-60 single arm fiber optic cable attached to a FL150/115 illuminator.  Rack and pinion mount allows smooth precise focusing over 55mm of travel.  Coarse focus mechanism incorporates a slip clutch and tension adjustment (FX holder)
Illumination Port: No illumination, requires an external illuminator for lighting
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Package Information:
   • 8 lbs
   • 17 x 14 x 9 inches
