Meiji PLS-2 Microscope Pole Stand

Meiji PLS-2 Microscope Pole Stand

The PLS-2 Stand is Meiji Techno America’s most popular narrow footprint LED stand with built in transmitted and incident LED illumination which may be operated...

Vendor :Meiji

Type :Stereo Microscope Stands

$711.00
Request Quote
Add to wishlist

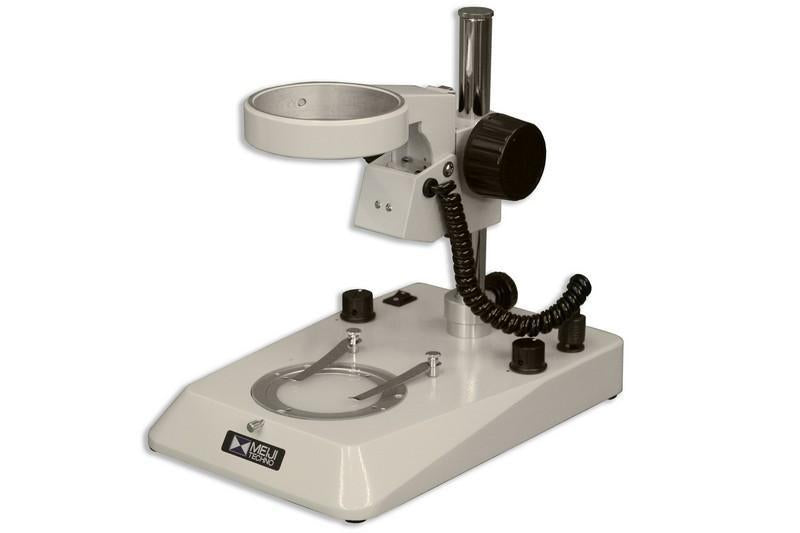

The PLS-2 Stand is Meiji Techno America’s most popular narrow footprint LED stand with built in transmitted and incident LED illumination which may be operated independently or simultaneously. Since LED provides no direct heat, there won't be any external stress on the specimen placed on the stage. Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a low profile wide cast aluminum alloy base stable stand. Supplied with 94.5mm clear glass stage plate (MA569) and two stainless steel stage clips (MA593). The PLS-2 Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies. The PLS-2 stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically if needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551). Chemical Resistant Finish and is auto-voltage sensing power supply (100V-240V). 100% MADE IN JAPAN.

Included:
   • PLS-2 Stand is Meiji Techno’s Low Profile Ergonomic narrow footprint LED stand with built in transmitted and incident LED illumination which may be operated independently or simultaneously
   • Equipped with a F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • PLS-2 Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret ( EMT Series), fixed (EMF Series) stereo bodies
   • Pillar diameter is 20mm, height is 10” (255 mm)
   • MA569: 94.5mm diameter clear glass stage plate
   • MA593: Two stainless steel stage clips
   • Power Cord (Included)
   • Incident Bulb: 5W PKL-LED-I/BULB (Factory Installed)
   • Transmitted Bulb: 5W PKL-LED-T/BULB (Factory Installed)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Dimensions: 272mm (11") length by 180mm (7") wide by 251mm (10") high
   • Weight: 10lbs
   • Box Size: 12 x 12 x 19
