  • SKU: PC
$454.50 $505.00
Request Quote

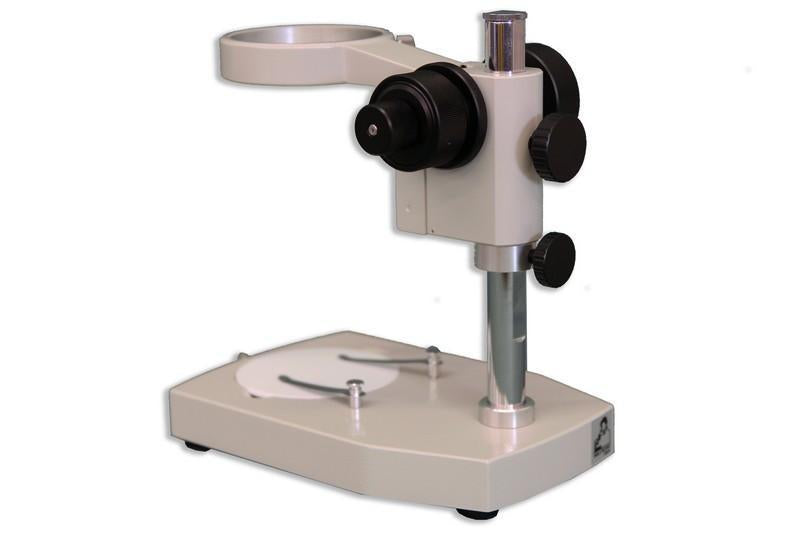

The PC stand in Meiji Techno America’s basic precision pole stand with "FC" focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 9” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FC Focus Holder Block with coaxial coarse and fine focusing slide block included with 84.2 mm diameter opening which accepts 84 mm stereo body.  Rack and pinion mount allows smooth precise focusing over 33mm of travel, fits 20mm mounting post.  Coarse focus mechanism incorporates a slip clutch and tension adjustment (FC holder)
Illumination Port: No illumination, requires an external illuminator for lighting
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Package Information:
   • 8 lbs
   • 17 x 14 x 9 inches
