Meiji PBH Microscope Pole Stand

Meiji Pole Stands

$562.50  $625.00

Request Quote

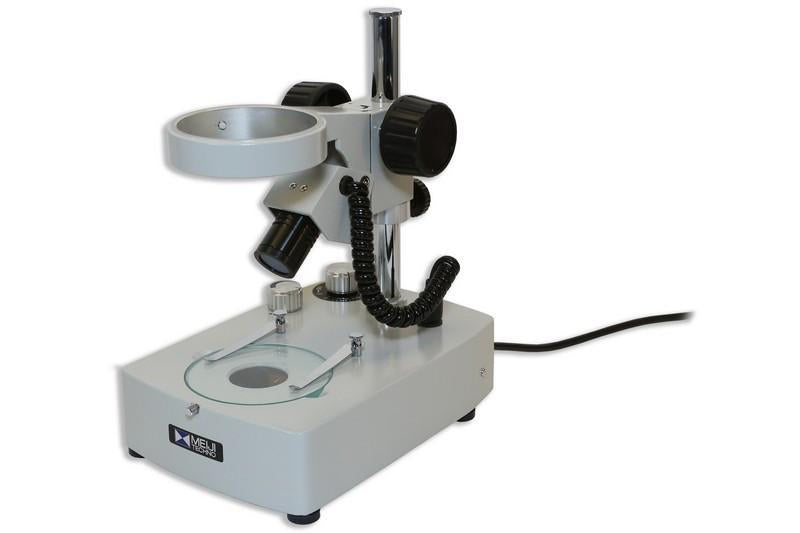

The PBH Stand is Meiji Techno America’s most popular Halogen stand with built in transmitted and incident Halogen illumination which may be operated independently or simultaneously.  Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568), and 94.5mm clear glass stage plate (MA569) and two stainless steel stage clips (MA593). The PBH Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret ( EMT Series), fixed (EMF Series) stereo bodies. The PBH stand is a great complement to our Stereo microscopes due to the focus block’s  ability to be easily raised vertically  if  needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accomodate taller specimens (MA551). Equipped with a bright 6V, 10W Halogen illumination. 100% MADE IN JAPAN.

Included:
   • PBH Stand is a Pole type stand with built- in transmitted and incident Halogen illumination, which may be operated independently or simultaneously
   • Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • PBH Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret ( EMT Series), fixed (EMF Series) stereo bodies Wattage 6V, 10 Watt Halogen
   • Pillar diameter is 20mm, height is 8.5” (216 mm)
   • MA569: 94.5mm diameter clear glass stage plate
   • MA568: 94.5mm diameter reversible black and white stage plate
   • MA593: Two stainless steel stage clips
   • Incident Bulb: MA570 (Factory Installed)
   • Transmitted Bulb: MA570 (Factory Installed)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Dimensions: 240mm (9") length by 160mm (6") wide by 280mm (11") high
   • Weight: 10lbs
   • Box Size: 17 x 14 x 9
