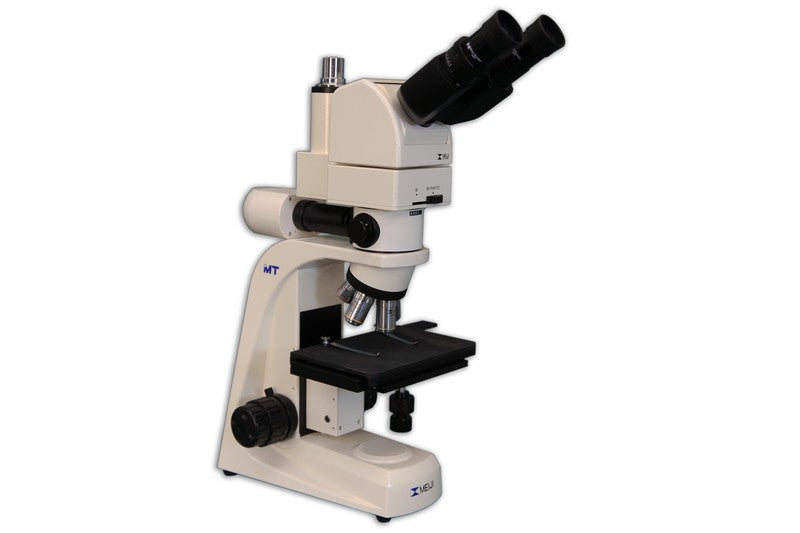

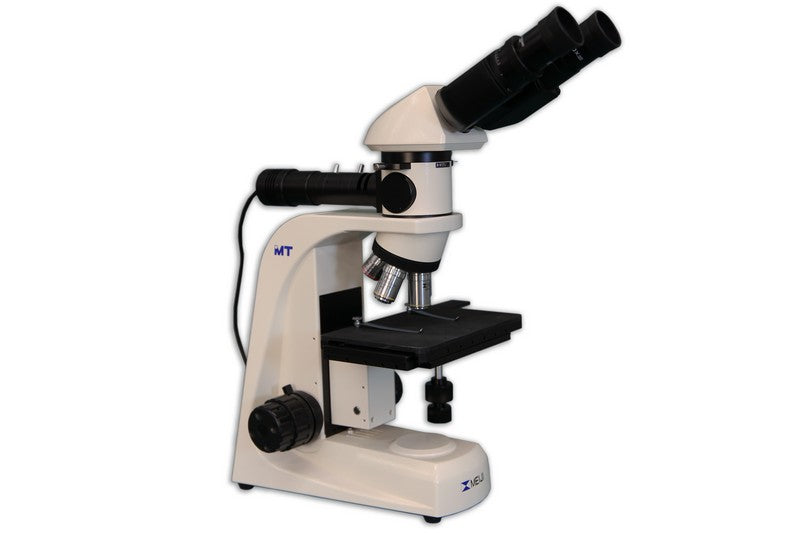

Meiji MT7000 Metallurgical Microscope Series
- SKU: MT7000
$5,444.25
$6,405.00
- Binocular, Ergo Bino, Trinocular, or Ergo Trinoc
- Halogen or LED Reflected Light Illumination
- 5x, 10x, 20x, 50x Objectives
- Flat Top Stage
- Limited Lifetime Warranty
The Meiji MT7000 metallurgical microscope series features reflected (incident) light illumination only. You can choose between halogen or LED illumination methods. There are also numerous head choices - binocular, ergo binocular, trinocular, or ergo trinocular. The infinity corrected optical system makes the observation of metallurgical specimen fast and easy while providing a good cost-to-performance ratio. This comes standard with Plan Achromat EPI 5, 10x, 20x, and 50x objectives. The vertical illuminator comes with blue, green and neutral density filters. The ceramic coated stage is 191mm x 126mm and provides 100mm x 100mm X-Y movement. This microscope is ideal for materials or metallurgical samples
| Specifications | |
|---|---|
| Viewing Head: | Binocular, ergo binouclar, trinocular, or ergo trinocular |
| Eyepieces: | SWH10X Widefield high eyepoint eyepiece, Field No. 22 |
| Vertical Illuminator: | Halogen or LED w/ blue, gree, neutral density, and polarizing filters |
| Nosepiece: | Quadruple |
| Objectives: | Infinity Plan Achromat EPI 5x, 10x, 20x, and 50x objectives |
| Stage: | Flat X-Y ceramic coated stage |
| Focus Adjustment: | Coarse & Fine Focus |
| Warranty: | Limited Lifetime |
The Meiji MT7000 metallurgical microscope series features reflected (incident) light illumination only. You can choose between halogen or LED illumination methods. There are also numerous head choices - binocular, ergo binocular, trinocular, or ergo trinocular. The infinity corrected optical system makes the observation of metallurgical specimen fast and easy while providing a good cost-to-performance ratio. This comes standard with Plan Achromat EPI 5, 10x, 20x, and 50x objectives. The vertical illuminator comes with blue, green and neutral density filters. The ceramic coated stage is 191mm x 126mm and provides 100mm x 100mm X-Y movement. This microscope is ideal for materials or metallurgical samples
| Specifications | |
|---|---|
| Viewing Head: | Binocular, ergo binouclar, trinocular, or ergo trinocular |
| Eyepieces: | SWH10X Widefield high eyepoint eyepiece, Field No. 22 |
| Vertical Illuminator: | Halogen or LED w/ blue, gree, neutral density, and polarizing filters |
| Nosepiece: | Quadruple |
| Objectives: | Infinity Plan Achromat EPI 5x, 10x, 20x, and 50x objectives |
| Stage: | Flat X-Y ceramic coated stage |
| Focus Adjustment: | Coarse & Fine Focus |
| Warranty: | Limited Lifetime |
