Meiji MT6800 Asbestos PLM / PCM Combo Microscope Series
Meiji MT6800 Asbestos PLM / PCM Combo Microscope Series
Meiji MT6800 Asbestos PLM / PCM Combo Microscope Series
Meiji MT6800 Asbestos PLM / PCM Combo Microscope Series
Meiji MT6800 Asbestos PLM / PCM Combo Microscope Series

Meiji MT6800 Asbestos PLM / PCM Combo Microscope Series

Available: In Stock
Wishlist
  • Product SKU: MT6820
$6,090.25 $7,195.00
Request Quote

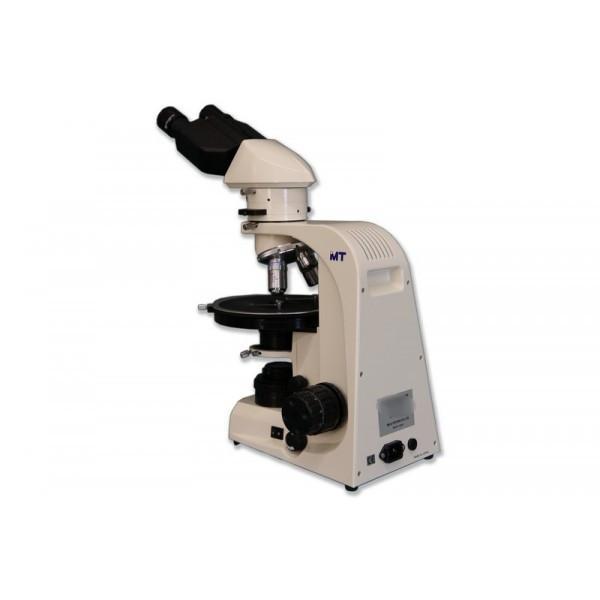

The Meiji MT6800 microscope is the only microscope designed for both PLM and PCM for asbestos fiber identification. This microscope is used for NIOSH 9002, NIOSH 7400, and OSHA ID 160. This microscope includs strain free 10x, 20x, 40x, 40x phase, and a 10x dispersion objective.

Specifications
Viewing Head: Binocular OR Trinocular (Siedentopf Style)
Eyepieces: (1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm
Bertand Lens: Bertand Lens & Sliding Analyzer
Objectives:

Strain Free Plan 10x, 20x, & 40x

Plan Semi Achromat 40X Phase

10x Dispersion Staining

Condenser: Strain Free Abbe N.A. 1.25 w/ slider for dispersion staining and phase objectives
Stage: 175mm diameter ceramic coated, rotatable stage with vernier and 360 degree graduation
Illumination: Transmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control.

Accessories:

Centering telescope, stage micrometer first order red plate, green interference filter 546nm, blue clear filter, dust cover, manual.

Meiji Limited Lifetime Warranty.

The Meiji MT6800 microscope is the only microscope designed for both PLM and PCM for asbestos fiber identification. This microscope is used for NIOSH 9002, NIOSH 7400, and OSHA ID 160. This microscope includs strain free 10x, 20x, 40x, 40x phase, and a 10x dispersion objective.

Specifications
Viewing Head: Binocular OR Trinocular (Siedentopf Style)
Eyepieces: (1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm
Bertand Lens: Bertand Lens & Sliding Analyzer
Objectives:

Strain Free Plan 10x, 20x, & 40x

Plan Semi Achromat 40X Phase

10x Dispersion Staining

Condenser: Strain Free Abbe N.A. 1.25 w/ slider for dispersion staining and phase objectives
Stage: 175mm diameter ceramic coated, rotatable stage with vernier and 360 degree graduation
Illumination: Transmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control.

Accessories:

Centering telescope, stage micrometer first order red plate, green interference filter 546nm, blue clear filter, dust cover, manual.

Meiji Limited Lifetime Warranty.

Please contact us for all additional parts and accessories
