Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope
Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope
Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope
Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope
Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope
Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope

Meiji MT6100 Series PLM NIOSH 9002 Asbestos Microscope

Available: In Stock
Wishlist
  • Product SKU: MT6120
$5,669.70 $6,670.00
Request Quote

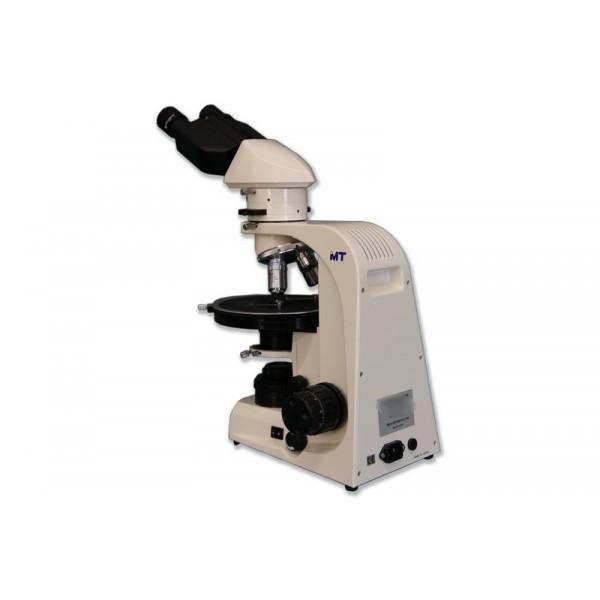

The Meiji MT6100 PLM microscope is designed for Asbestos bulk fiber identification and meets the NIOSH 9002 requirements. This microscope includes the 10x dispersion staining objective as well as 10x, 20x, and 40x bright field objectives.

Specifications
Viewing Head: Binocular OR Trinocular (Siedentopf Style)
Eyepieces: (1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm
Bertand Lens: Bertand Lens & Sliding Analyzer
Objectives:

DIN Strain Free Plan 10x, 20x, & 40x

10x Dispersion Staining

Condenser: Strain free Abbe condenser N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or dispersion staining objectives, iris diaphragm, dovetail mount
Stage: Rotatable with 360° graduations and vernier
Illumination: Transmitted light Koehler Illuminator, 6V 30W halogen.  Auto voltage sensing with intensity control

Accessories:

Blue clear daylight filter, dust cover, manual.  Centering telescope

Meiji Limited Lifetime Warranty.

The Meiji MT6100 PLM microscope is designed for Asbestos bulk fiber identification and meets the NIOSH 9002 requirements. This microscope includes the 10x dispersion staining objective as well as 10x, 20x, and 40x bright field objectives.

Specifications
Viewing Head: Binocular OR Trinocular (Siedentopf Style)
Eyepieces: (1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm
Bertand Lens: Bertand Lens & Sliding Analyzer
Objectives:

DIN Strain Free Plan 10x, 20x, & 40x

10x Dispersion Staining

Condenser: Strain free Abbe condenser N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or dispersion staining objectives, iris diaphragm, dovetail mount
Stage: Rotatable with 360° graduations and vernier
Illumination: Transmitted light Koehler Illuminator, 6V 30W halogen.  Auto voltage sensing with intensity control

Accessories:

Blue clear daylight filter, dust cover, manual.  Centering telescope

Meiji Limited Lifetime Warranty.

Please contact us for all additional parts and accessories
