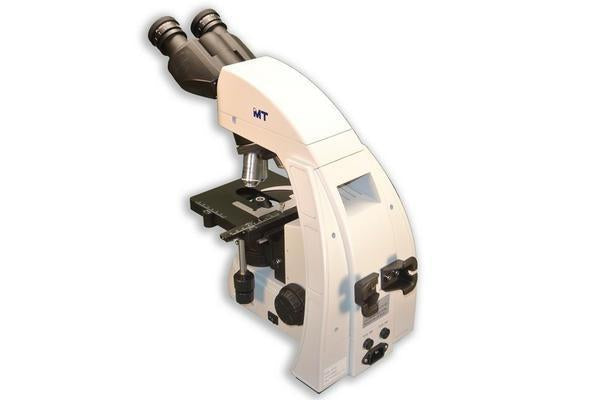

Meiji MT-50 Binocular LED Research Microscope
Meiji MT-50 Binocular LED Research Microscope
Meiji MT-50 Binocular LED Research Microscope
Meiji MT-50 Binocular LED Research Microscope

Meiji MT-50 Binocular LED Research Microscope

  • SKU: MT-50
$1,275.00 $1,500.00
Request Quote

The Meiji MT-50 microscope is designed to withstand heavy use and is ideal for laboratory use. The binocular head comes with a pair of HWF 10x eyepieces which provide a 20mm field of view. The four position nosepiece has infinity plan achromat 4x, 10x, 40x, and 100x oil objectives. The abbe condenser is a 1.25 N.A. condenser which is fully focusable. Using a 3 watt illumination system you do not have to worry about bulb changes!



Specifications:
Head: Siedentpf type design, binocular 30° inclined tube on MT-50 Series, interpupillary distance adjustment 48-75mm, 360 degree rotatable.
Eyepieces: Paired Plan HWF 10x/20mm F.O.V. with integrated diopter adjustment
Objectives: Infinity Corrected Plan Achromat 4x/N.A. 0.10, 10x/N.A. 0.25, 40x/N.A. 0.65 spring loaded, 100x oil/N.A. 1.25 spring loaded objectives.
Nosepiece: Revolving quadruple reversed nosepiece .
Stage: 149mm x 138mm stage with integrated mechanical stage, X-Y movement of 76mm x 50mm
Condenser: Abbe condenser, N.A. 1.25 with a slider housing for sliders
Focusing:
Coaxial coarse and fine adjustments with adjustable tension control and upper limit stop to prevent objectives from articulating with slides. Internal brass fine focus gears.
Illumination: 3 W intensity adjustable LED illumination, rated for 25,000 hours
Misc: Dust cover, manual, power cord
