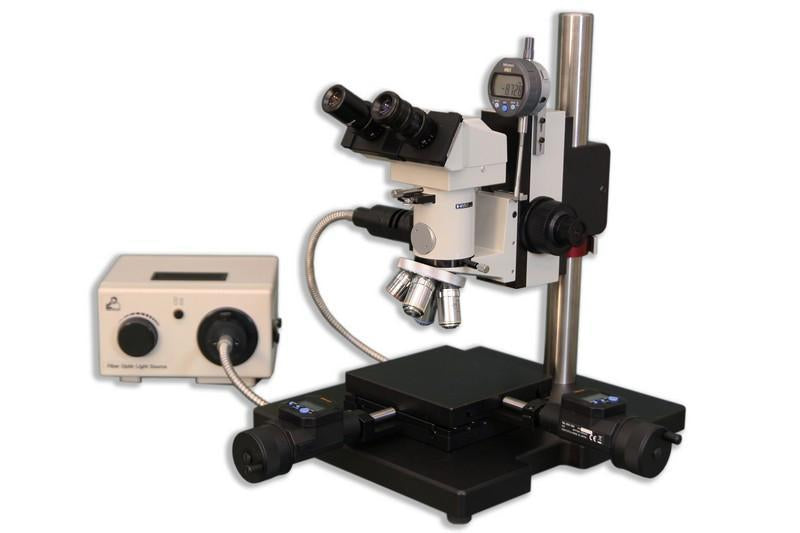

Meiji MC-40 Measuring Microscope
- SKU: MC-40
$8,028.00
$9,445.00
Meiji Techno's MC Series Precision Measuring Systems are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. The MC Series measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.
These systems can be configured for use with 35mm photomicrography, CCD video and digital still camera systems. Operators can perform visual inspection and measurement of small items or components without a complicated system setup. Systems are available in 110 or 220 volt models.
The MC-40 series has two models to choose from, the MC-40 with reflective illumination and the MC-40T with reflective and transmitted illumination options.
| MC-40 Specifications | |
|---|---|
| Viewing Head: | Erect image Binocular head with depolarizer |
| Eyepieces: | Focusing eyepiece HWF10X-FF with cross-line reticule and set screw. |
| High eyepoint eyepiece HWF10X, FN: 18, Eyepoint: 24mm | |
| Objectives: | Plan Epi M5X, N.A. 0.10, infinity corrected, W.D. 20mm |
| Plan Epi M10X, N.A. 0.25, infinity corrected, W.D. 7.48mm | |
| Plan Epi M20X, N.A. 0.40, infinity corrected, W.D. 5.20mm | |
| Plan Epi M50X, N.A. 0.75, infinity corrected, W.D. 0.38mm | |
| Illuminator: |
Infinity corrected vertical Koehler illuminator with sliding rotatable polarizer Filter Set: Blue Clear, Green Clear, Neutral Density ND8, and Polarizing filter in metal mounts Flexible 36” single arm light guide for MA806 illuminator Light Source: 110/120V, 50-60Hz, Halogen lamp, 21V 150W |
| Focus Block: |
Coaxial coarse and fine focus block with quadruple ball bearing nosepiece |
| Stand: | Heavy Duty stand with pillar and mounting bracket. Diameter of pillar: 38mm, Height: 432mm, Base: 300 x 300 x 25mm |
| Stage: |
MC-40: Reflected light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads MC-40T: Reflected & Transmitted light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads Digimatic micrometer heads not included |
***Does not include the digimatic micrometer heads***
Meiji Techno's MC Series Precision Measuring Systems are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. The MC Series measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.
These systems can be configured for use with 35mm photomicrography, CCD video and digital still camera systems. Operators can perform visual inspection and measurement of small items or components without a complicated system setup. Systems are available in 110 or 220 volt models.
The MC-40 series has two models to choose from, the MC-40 with reflective illumination and the MC-40T with reflective and transmitted illumination options.
| MC-40 Specifications | |
|---|---|
| Viewing Head: | Erect image Binocular head with depolarizer |
| Eyepieces: | Focusing eyepiece HWF10X-FF with cross-line reticule and set screw. |
| High eyepoint eyepiece HWF10X, FN: 18, Eyepoint: 24mm | |
| Objectives: | Plan Epi M5X, N.A. 0.10, infinity corrected, W.D. 20mm |
| Plan Epi M10X, N.A. 0.25, infinity corrected, W.D. 7.48mm | |
| Plan Epi M20X, N.A. 0.40, infinity corrected, W.D. 5.20mm | |
| Plan Epi M50X, N.A. 0.75, infinity corrected, W.D. 0.38mm | |
| Illuminator: |
Infinity corrected vertical Koehler illuminator with sliding rotatable polarizer Filter Set: Blue Clear, Green Clear, Neutral Density ND8, and Polarizing filter in metal mounts Flexible 36” single arm light guide for MA806 illuminator Light Source: 110/120V, 50-60Hz, Halogen lamp, 21V 150W |
| Focus Block: |
Coaxial coarse and fine focus block with quadruple ball bearing nosepiece |
| Stand: | Heavy Duty stand with pillar and mounting bracket. Diameter of pillar: 38mm, Height: 432mm, Base: 300 x 300 x 25mm |
| Stage: |
MC-40: Reflected light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads MC-40T: Reflected & Transmitted light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads Digimatic micrometer heads not included |
***Does not include the digimatic micrometer heads***
