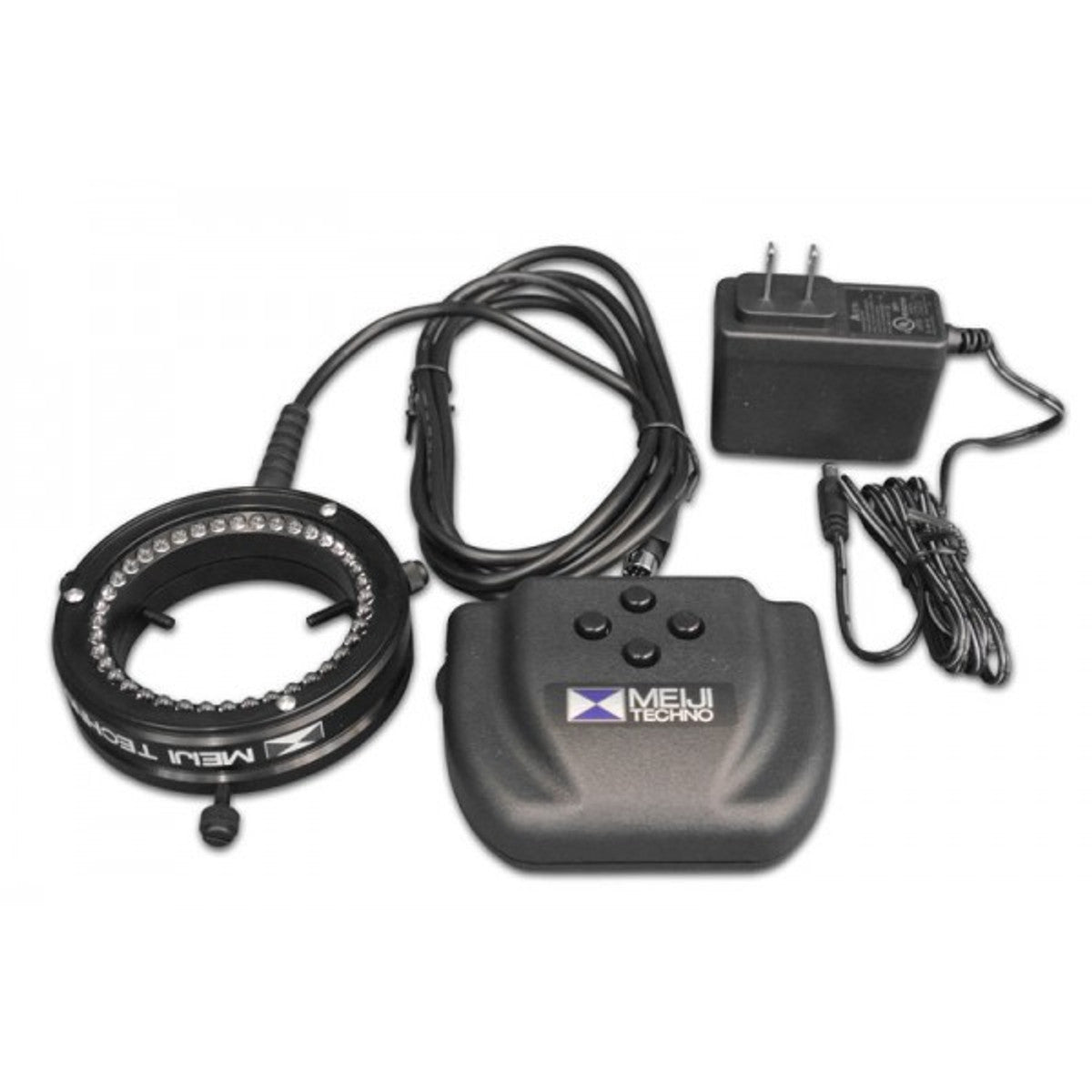

Meiji MA961D/40 Daylight Quadrant Control LED Ring Illuminator
- SKU: MA961D/40
$432.25
$475.00
Meiji Techno's MA961D/40 delivers powerful, microscope quality daylight from the precision aligned LED array. Our CAD designed ring light system contains 40 top quality high-brightness white LED's housed in a machined aluminum and molded plastic enclosure. Our advanced LED controller utilizes a proprietary constant current design to provide maximum light output with long life and no color shift when dimming. This key feature is integrated into the compact ring light housing.
- 40 LEDs
- 66mm Inside Diameter
- 4 Separately Controllable Banks - 6000K
- 90° Segment Control
- Auto Voltage Sensing Power Supply
- Standard Working Distance
- Remote Control not Available
- Manufactured: MADE IN USA
- Warranty: LIMITED LIFETIME WARRANTY
Specifications
| Interior Diameter | 66 |
| Number of LEDs | 40 |
| White Light Options | Daylight |
| Narrow Band Options | Colors, UV, NIR |
| Minimum Working Distance | 62mm |
| Number of Controlled Banks | 1/4 |
| Number of Dimming Zones | 1 |
| Electro Static Safe | no |
| Ring Housing | High Strength Aluminum Alloy |
| Controller Housing | Polymer |
| Power Supply Type | Wall or Desktop |
| Power Cords | Wide Range |
Meiji Techno's MA961D/40 delivers powerful, microscope quality daylight from the precision aligned LED array. Our CAD designed ring light system contains 40 top quality high-brightness white LED's housed in a machined aluminum and molded plastic enclosure. Our advanced LED controller utilizes a proprietary constant current design to provide maximum light output with long life and no color shift when dimming. This key feature is integrated into the compact ring light housing.
- 40 LEDs
- 66mm Inside Diameter
- 4 Separately Controllable Banks - 6000K
- 90° Segment Control
- Auto Voltage Sensing Power Supply
- Standard Working Distance
- Remote Control not Available
- Manufactured: MADE IN USA
- Warranty: LIMITED LIFETIME WARRANTY
Specifications
| Interior Diameter | 66 |
| Number of LEDs | 40 |
| White Light Options | Daylight |
| Narrow Band Options | Colors, UV, NIR |
| Minimum Working Distance | 62mm |
| Number of Controlled Banks | 1/4 |
| Number of Dimming Zones | 1 |
| Electro Static Safe | no |
| Ring Housing | High Strength Aluminum Alloy |
| Controller Housing | Polymer |
| Power Supply Type | Wall or Desktop |
| Power Cords | Wide Range |
