Meiji KBL Wide-Surface Microscope Stand

Meiji KBL Wide-Surface Microscope Stand

The KBL Stand is a Meiji Techno America’s most popular Ergonomic 380mm x 330mm x 20mm flat Laminate Board stand which requires external illumination when...

$418.50
Request Quote
Add to wishlist

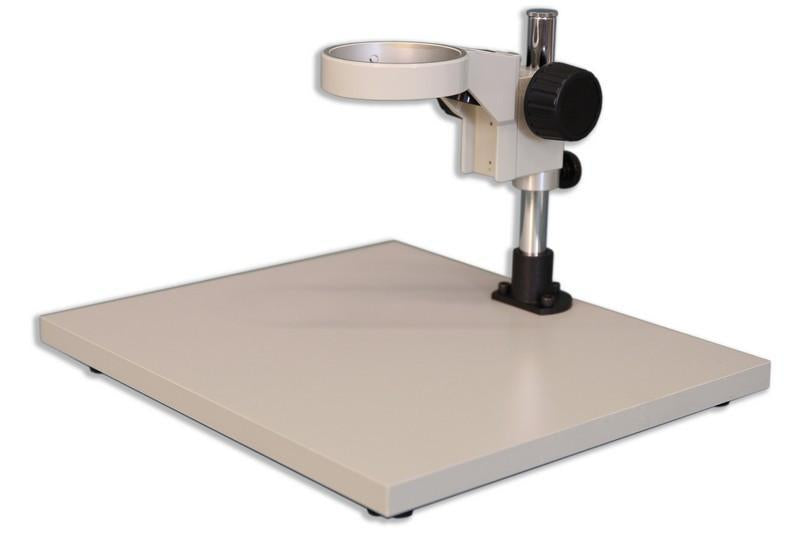

The KBL Stand is a Meiji Techno America’s most popular Ergonomic 380mm x 330mm x 20mm flat Laminate Board stand which requires external illumination when an extended work surface is needed.  This Ergonomic stand can accommodate large circuit boards or animal surgery which requires a wide surface area.  Equipped with an integral FX focusing holder which has a illuminator port mount to accommodate a versatile LED illuminator (MA264/LED) or any fiber optic light option.  The FX focus holder has a 84.5mm round diameter opening which is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies.  The KBL Stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically to accommodate different sample heights or special applications. A 5” (100mm) extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551).

Included:
   • Ergonomic 380mm x 330mm x 20mm flat Laminate Board stand which requires external illumination
   • FX - focusing holder which has a illuminator port mount to accommodate a versatile LED illuminator (MA264/LED) or any fiber optic light option

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Dimensions: 380mm (15") length by 330mm (13") wide by 200mm (8") high
   • Weight: 12lbs
   • Box Size: 17 x 15 x 13 inches
