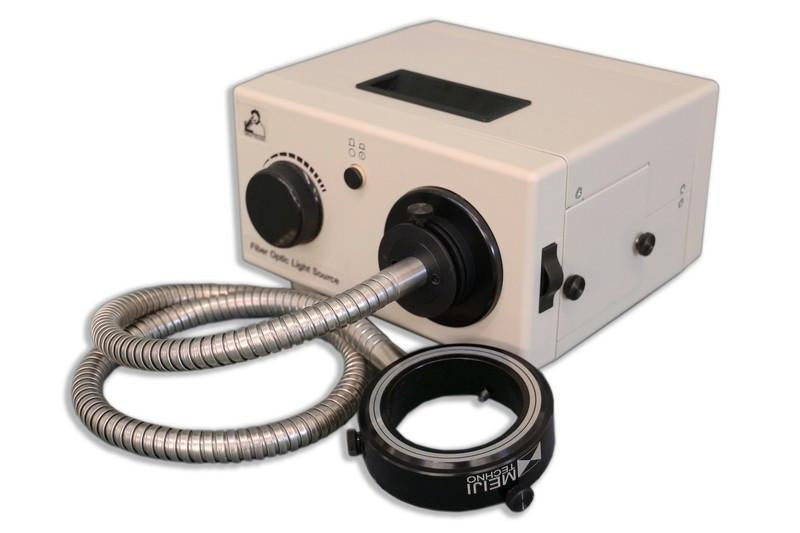

Meiji FT192 Annular Fiber Optic Illuminator - 150W

Meiji FT192 Annular Fiber Optic Illuminator - 150W

|

SKU: FT192

Regular price $997.50
Regular price $1,050.00 Sale price $997.50
Sale Sold out
Quote Request
Meiji FT192 Annular Fiber Optic Illuminator - 150W
Got Questions? Why Choose Us? View full details

Description

Variable intensity 150W quartz halogen light source with 60mm I.D. annular light guide fits all RZ and EMZ stereo microscopes; adapter required for EMT and EMF stereos. All metal construction. UL-1571 and CE/CSA 2001 compliant. Available in 110V and 220/240V CE approved models. Two Year Limited Warranty. Color temperature: 3200K.

The FT190 Series features include:

  • Interchangeable EKE or extra bright EJA lamp
  • On/off switch separate from the dimmer for maximum control and repeatability
  • Interchangeable adapter accepts all brands of fiber optic light guides
  • 1” Bezel is very cool, and accepts oversized light guides. Also includes space for an extra 25mm filter
  • Soft start ergonomic dimmer reduces inrush current and lengthens bulb life. Provides smooth light change from zero to 100%
  • Separate filter drawer accepts standard 25mm diameter filters (Dicroic filters recommended)
  • No soldered connections for carefree and convenient maintenance.
  • Lamp exchange drawer folds completely out of thehousing for easy bulb replacement, no tools required
  • 2 year warranty
  • CSA and CE (230v version) approved
Technical Information

Input Voltage:

 120 V AC50/60Hz

Output Voltage:

 0-21 Volts

Rated Power Output (max):

 200 Watts

Fuse Type:

 2,5 Amp Slow blow

Temperature Range (Operating Storage):

 0 to 45 C | -25 to 85 C

Fiber Optic Interface:

 15 mm or 25 mm

Relative humidity, Non
Condensing:

 5% to 95%

Vibrations:

 10-500Hz 2G 10min./cycle. Period for 60 min (Each axis)

Dimension/Weight:

 8” (W) X 4.75” (H) X 7” (D) (13.5 lbs)

Product Information:
   • Warranty: 2 Year Warranty
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: 9 lbs (4.0kg)
   • Box Size: 15 x 15 x 9 inches
