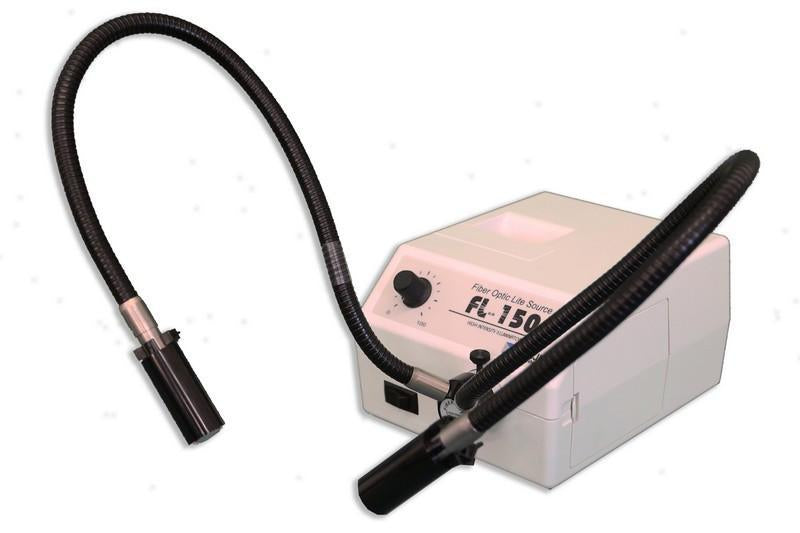

Meiji FL151 Dual Arm Fiber Optic Illuminator
- SKU: FL151
This unit offers safe and hassle-free operation and mates securely with standard FL150/115 microscopy light guides, eliminating adapters. The MI-150 delivers 350,000 foot candles of high-intensity, cold light illumination when coupled with any of our fiber optic light guides. Standard FL150/115 provides a lamp life of over 200 hours at full intensity. This unit is available separately or as part of a complete fiber optic illumination system.
The FL150 Series features include:
- Cool light directly where you need it
- To provide shadow free (or shadowless) lllumination to the specimen
- The FL150/115 is CE and Curtis-Straus approved for global use
- All FL150 Illuminators come backed with a 1 year warranty
- No Adapters required for FL150 Series Accessories
Technical Information
|
|
Input: |
115 V AC (230 V AC optional)
|
Lamp: |
150 Watt, 21 V, EKE qtz halogen | EKE-X
|
Lamp Output: |
1750 Lumens at fiber optic plane
|
Color Temperature: |
3250° Kelvin at max intensity
|
Lamp Life: |
200 hrs | 1000 hrs
|
Fiber Optic Interface: |
15 mm or 25 mm
|
Noise Level: |
<25 db="" div="">
|
Intensity Control: |
Solid State 10 - 100%
|
Dimension/Weight: |
6.8” (W) X 5” (H) X 8.3” (D) (7.75 lbs)
|
Appovals: |
Curtis-Straus
|
• Warranty: 3 Year Warranty
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
Package Information:
• Weight: 9 lbs (4.0kg)
• Box Size: 15 x 15 x 9 inches
