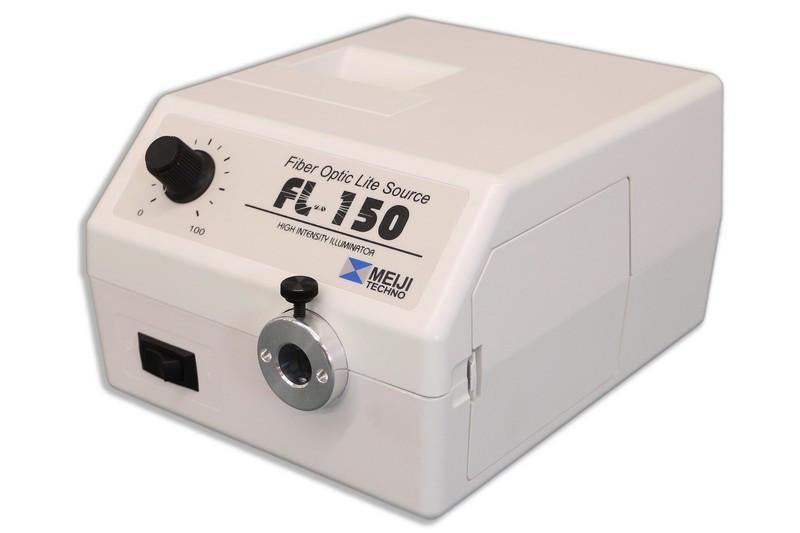

Meiji FL150/115 Fiber Optic Microscope Light Source For EMZ8 & EMZ-13VX

Meiji Fiber Optic Light Sources

$360.00  $400.00

Request Quote

Fiber Optic Light Source With Variable Rheostat For EMZ Series Microscopes

This unit offers safe and hassle-free operation and mates securely with standard FL150/115 microscopy light guides, eliminating adapters. The MI-150 delivers 350,000 foot candles of high-intensity, cold light illumination when coupled with any of our fiber optic light guides. Standard FL150/115 provides a lamp life of over 200 hours at full intensity. This unit is available separately or as part of a complete fiber optic illumination system.

The FL150 Series features include:

  • Cool light directly where you need it
  • To provide shadow free (or shadowless) lllumination to the specimen
  • The FL150/115 is CE and Curtis-Straus approved for global use
  • All FL150 Illuminators come backed with a 1 year warranty
  • No Adapters required for FL150 Series Accessories
Technical Information


 115 V AC (230 V AC optional)


 150 Watt, 21 V, EKE qtz halogen | EKE-X

Lamp Output:

 1750 Lumens at fiber optic plane

Color Temperature:

 3250° Kelvin at max intensity

Lamp Life:

 200 hrs | 1000 hrs

Fiber Optic Interface:

 15 mm or 25 mm

Noise Level:

 <25 db="" div="">

Intensity Control:

 Solid State 10 - 100%


 6.8” (W) X 5” (H) X 8.3” (D) (7.75 lbs)
