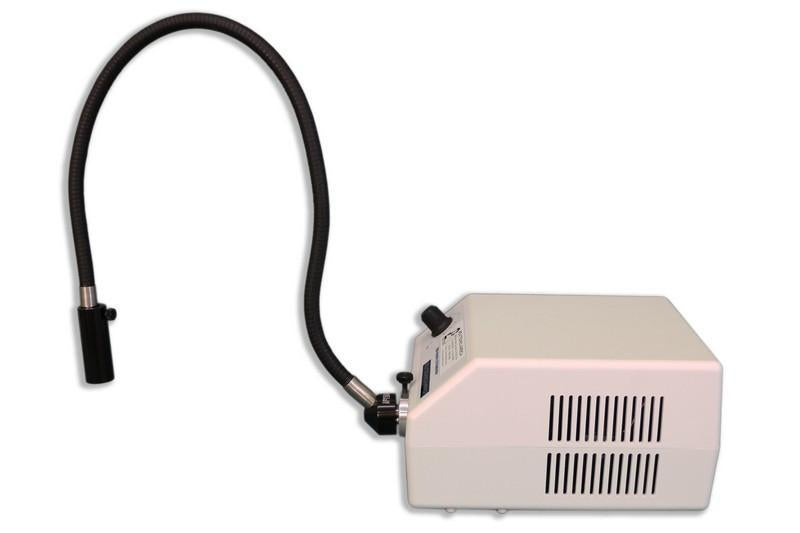

Meiji FL-5000-US-SG Single Arm LED Fiber Optic Illuminator

Meiji Fiber Optic Light Sources

$661.50  $735.00

Request Quote

Designed for microscopy and general illumination, this unit is energy efficient and features cool white LED lighting with a color temp of 5000K and higher output than the typical 150 watt halogen fiber optic illuminator. The FL-5000 supports and fully illuminates gooseneck and annular ring light fiber optics. It is also a great option for inspection equipment, forensics, machine vision, industrial borescopes, assembly stations, and OEM custom lighting. The long life LED's of this unit are rated to provide over 40,000 hours of light.

The FL-5000 Series features include:

  • Cool light directly where you need it
  • To provide shadow free (or shadowless) lllumination to the specimen
  • High Power White LEDs
  • Consistent Color Temperature
  • Excellent Light Output Uniformity
  • Designed to Couple to Most Meiji Techno America Fiber Optics
  • Universal Power Supply
  • Low Heat
  • Low Voltage
  • Stackable Housing
  • Quick Change Adapters
  • Small Footprint
  • 2 Year Warranty
Technical Information

Light Output:

 2000+ Lumens (12.7mm aperture)


 High Power White LEDs

Input Voltage:

 100 - 240 VAC 50/60 Hz

Color Temperature:

 Typical: 5000 K

LED Life:

 40,000 Hours D70

Fiber Optic Interface:

 15 mm or (25 mm optional)

Operating Temperature:

 5 - 40°C


 Fan Cooled

Intensity Control:

 Variable 10 - 100%


 7.0” (W) X 4.9” (H) X 8.8” (D) (6 lbs)


Product Information:
   • Warranty: 2 Year Warranty
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: 9 lbs (4.0kg)
   • Box Size: 15 x 15 x 9 inches
