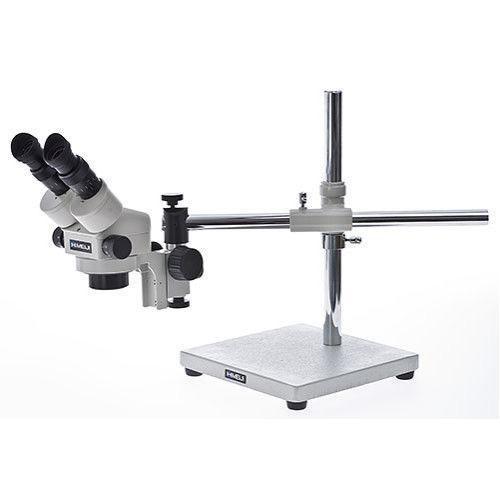

Meiji EMZ-5 Zoom 0.7x - 4.5x on Boom Stand

This package includes the Meiji EMZ-5 stereo microsocpe with your choice of boom stand, and focsuing block. The Meiji EMZ-5 has a zoom range of 0.7x - 4.5x for an overall magnification of 7x - 45x with the included 10x superwidefield eyepieces. Meiji offers several style focus mounts for you to choose from, as well as boom stands. For information on the avaiblabe options please read the product decriptions below.

	Specifications:
Body:	Binocular rotatable 360° (EMZ-5)
Eyepieces:	10x Super Widefield
Zoom Ratio:	6.5:1
Zoom Range:	0.7x - 4.5x
Magnification:	7x - 45x (10x eyepieces)
Field of View:	32mm - 5.1mm
Working distance:	93mm
Eyetube Inclination:	45°
Interpupillary Distance:	54mm - 75mm

Focusing Block:

F HOLDER

Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment.

FX HOLDER
Focus holder with integral, adjustable illuminator port. Rack and pinion mount allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment.

FS HOLDER
Tilting focus holder with integral, adjustable illuminator port. Rack and pinion mount allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment.

FC HOLDER

Focus holder with coaxial coarse and fine focus for high magnification applications where precise fine focus adjustment is required. Rack and pinion mount allows smooth, precise focusing over 33mm of travel.

Coarse and fine focus mechanism incorporates a slip clutch and tension adjustment.

FSC FOCUSING BLOCK

The FSC is an inclinable coarse and fine adjusting focus block with 5/8" diameter mounting pin to hold the stereo microscope body onto any machine or other special applications.

Boom Stands:

S-4100 Stand

Industrial-type boom stand with 20mm diameter mounting post for F, FK, FX or FC focusing holders. Provides complete flexibility for horizontal and vertical adjustment. Sturdy solid metal base for excellent stability.

Base: 265mm x 265mm x 25.4mm (10.43" x 10.43" x 1.0")
Vertical pole: 400mm (15.74")
Horizontal pole: 530mm (20.86")

Note: (F, FK, FX and FC focusing holders accepted)

S-4200 Stand

Extended working distance industrial-type boom stand with 20mm diameter mounting post for F, FK, FX or FC focusing holders. Provides complete flexibility for horizontal and vertical adjustment. Sturdy solid metal base for excellent stability.

Base: 265mm x 265mm x 25mm (10.43" x 10.43" x 1.0")
Vertical pole: 610mm (24.0")
Horizon pole: 530mm (20.86")

Note: (F, FK, FX and FC focusing holders accepted)

S-4300 Stand

Industrial-type boom stand with adapter (MA552) for FS focusing holder. Provides complete flexibility for horizontal, vertical and angular adjustment. FS holder can be inclined 180 degrees and rotated 360 degrees. Sturdy solid metal base for excellent stability.

Base: 265mm x 265mm x 25mm (10.43" x 10.43" x 1.0")
Vertical pole: 400mm (15.74")
Horizon pole: 535mm (21.06")

Note: (FS focusing holder accepted)

S-4400 Stand

Extended working distance industrial-type boom stand with adapter (MA552) for FS focusing holder. Provides complete flexibility for horizontal, vertical and angular adjustment. FS holder can be inclined 180 degrees and rotated 360 degrees. Sturdy solid metal base for excellent stability.

Base: 265mm x 265mm x 25mm (10.43" x 10.43" x 1.0")
Vertical pole: 610mm (24.0")
Horizon pole: 535mm (21.06")

Note: (FS focusing holder accepted)

S-4500 Stand

Industrial-type boom stand with 20mm diameter mounting post for F, FK, FX or FC focusing holders. Provides complete flexibility for horizontal and vertical adjustment. Sturdy solid metal clamp for excellent stability. Has 3" clamp opening.

Note: (F, FK, FX and FC focusing holders accepted)

S-4600 Stand

Industrial-type boom stand with adapter (MA552) for FS focusing holder. Provides complete flexibility for horizontal and vertical adjustment. Sturdy solid metal clamp for excellent stability. Has 3" clamp opening.

Note: (FS focusing holder accepted)

	Specifications:
Body:	Binocular rotatable 360° (EMZ-5)
Eyepieces:	10x Super Widefield
Zoom Ratio:	6.5:1
Zoom Range:	0.7x - 4.5x
Magnification:	7x - 45x (10x eyepieces)
Field of View:	32mm - 5.1mm
Working distance:	93mm
Eyetube Inclination:	45°
Interpupillary Distance:	54mm - 75mm

Focusing Block:

F HOLDER

Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment.

FC HOLDER

Coarse and fine focus mechanism incorporates a slip clutch and tension adjustment.

FSC FOCUSING BLOCK

The FSC is an inclinable coarse and fine adjusting focus block with 5/8" diameter mounting pin to hold the stereo microscope body onto any machine or other special applications.
