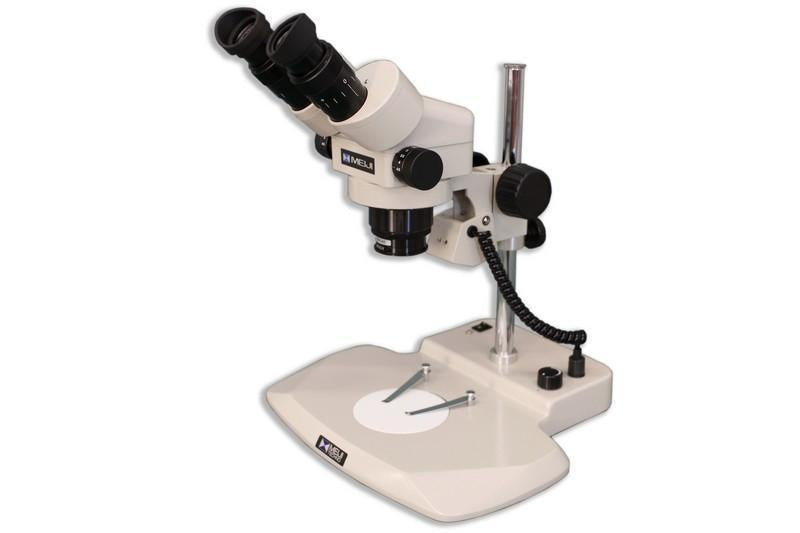

Meiji EMZ-200 Microsurgical Stereo Zoom Microscope System

Meiji EMZ-200 Microsurgical Stereo Zoom Microscope System

Meiji Techno offers an economically priced training EMZ-200TR Trinocular zoom stereo system for Microvascular Anastomosis for practicing microsurgical training procedures to suture and repair blood...

Vendor :Meiji

Type :Microscope

$2,210.00
Request Quote
Add to wishlist

Meiji Techno offers an economically priced training EMZ-200TR Trinocular zoom stereo system for Microvascular Anastomosis for practicing microsurgical training procedures to suture and repair blood vessels in place of a costly surgical microscope. EMZ-200TR body has a long 200mm working length, increase focal depth and a wide field number. The zoom body offers direct light to all three viewing ports simultaneously. Featuring Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-200TR offers a high intensity, inclinable oblique LED illumination with up to 20,000 hour bulb life on a low profile ergonomically designed compact stand that offers superior performance at low cost.

Includes:

   • Stereo Microscope Body (Special Binocular Zoom Stereo Microscope)
   • 12.5X Eyepieces (Paired)
   • Stand (Ergonomic slim pole stand with built in inclineable oblique LED illumination and extended 12.4mm pole)
   • Black and White Reversible stage plate (MA569)
   • Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
   • 0.5X Auxiliary Lens -Working Distance 200 (MA546)
   • Meiji Techno Dust Cover (MA703)
   • Rubber Eyeguards/Eyeshields (Paired) (MA600)
   • EMZ Meiji Techno Instruction Manual
   • Limited Lifetime Warranty

Specifications
Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 8.75x - 56.25x without Auxiliary lens, 4.37x - 28.12x with 0.5 Auxiliary lens
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 3.06x - 19.7x (12.5x eyepieces)
Objective Lens: Brass Construction
Field of View: 81.6mm - 12.7mm
Working distance: 250mm
Eyetube Inclination: 30°
Eyepieces: 12.5x
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 3.06x - 84.37x (With auxiliary lenses and eyepieces)
Extended Working Distances: 57mm - 250mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.5x (200mm)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
